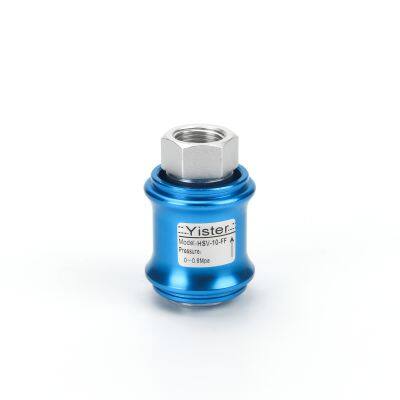

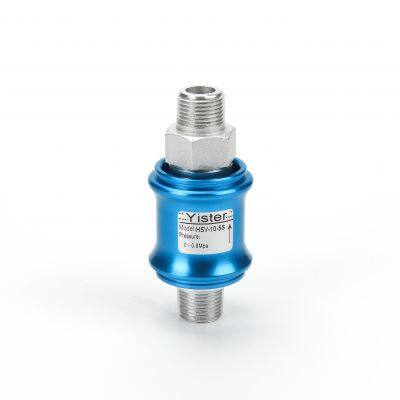

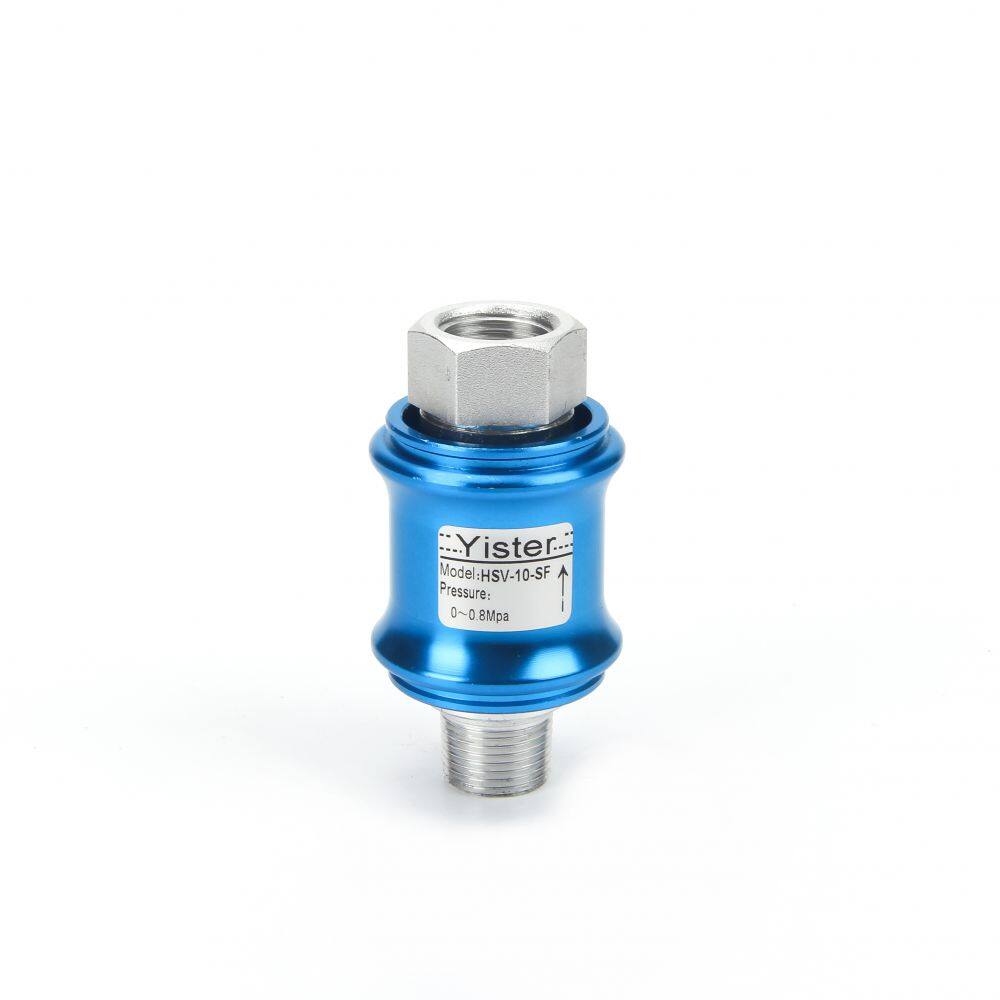

Airtac type aluminum alloy 3 Way 2 position HSV Pneumatic hand slide valve with lock

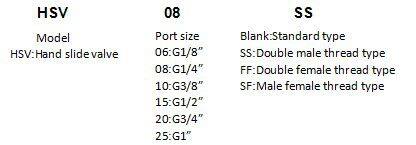

Order code
Symbol
Technical parameter
Model |
HSV-06 |
HSV-08 |
HSV-10 |
HSV-15 |
HSV-20 |
HSV-25 |
|||||
Fluid |
Air for Pipe Exhaust Valve |
||||||||||
Acting |
Manual control direct acting type |
||||||||||
Valve type |
3/2 way pneumatic switch hand sliding valve |
||||||||||
Orifice size |
12.0mm2 |
40.0mm2 |
62.0mm2 |
140.0mm2 |
250.0mm2 |
392.0mm2 |
|||||
Lubrication |
No required |
||||||||||
Port size |
G1/8” |
G1/4” |
G3/8” |
G1/2” |
G3/4” |
G1” |
|||||
Protective class |
IP65 |
||||||||||
Pressure range |
0-1.0MPa |
||||||||||
Proof pressure |
1.5MPa |
||||||||||
Material of body |
Aluminum Alloy |
||||||||||
Temperature |
-20℃~60℃ |
||||||||||

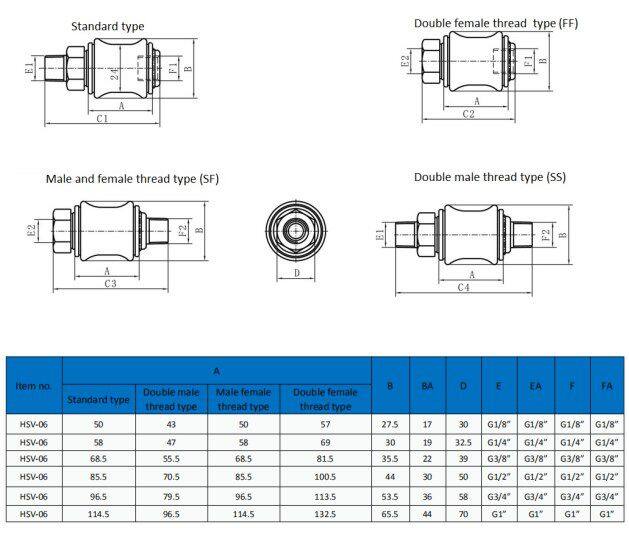

Dimension
Feature
HSV series two-position three-way manual slide valve, which is often used as a air source switch in the pipeline. When the air source is closed, the air pressure in the pneumatic system is exhausted simultaneously.
About us
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The products produced by our company are of high quality, reliable performance, good versatility, wide variety and complete specifications. The main products are multiple series of pneumatic actuators, control components, auxiliary components, pneumatic machinery and pneumatic complete systems.
Shipping&Packing
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are factory.
2.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4.Q: What is your terms of payment ?
A: 100% in advance by air. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
5. Q:What is the MOQ for your products?
A: There is no special requirement for standard products.
