Home > Industrial Equipment & Components > Valve > Ball Valve > 4L210-08 5 Way 2 Position 1/4" Pneumatic Switch 4R210-08 Manual Hand Pull Valve

4L210-08 5 Way 2 Position 1/4" Pneumatic Switch 4R210-08 Manual Hand Pull Valve

Name: 4L210-08 5 Way 2 Position 1/4" Pneumatic Switch 4R210-08 Manual Hand Pull Valve
Brand: Yister
SKU: 170441013
Availability: InStock

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Yister

Place of Origin:

China

Model Number:

4R110-06 4R210-08 4R310-10 4R410-15

Contact Supplier Request Quote Chat Now

Yueqing Yister Electric Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO OR SHANGHAI

Delivery Detail:

2 days

Product Details
Company Profile
Contact Us

Brand Name Yister

Place of Origin China

Model Number 4R110-06 4R210-08 4R310-10 4R410-15

Material Alloy

Application General

Structure Control

Standard or Nonstandard Standard

Pressure Medium Pressure

Power Manual

Port Size 1/8“,1/4”,3/8“,1/2“

Media Other, Hand Push Pull Valve

Temperature of Media Normal Temperature

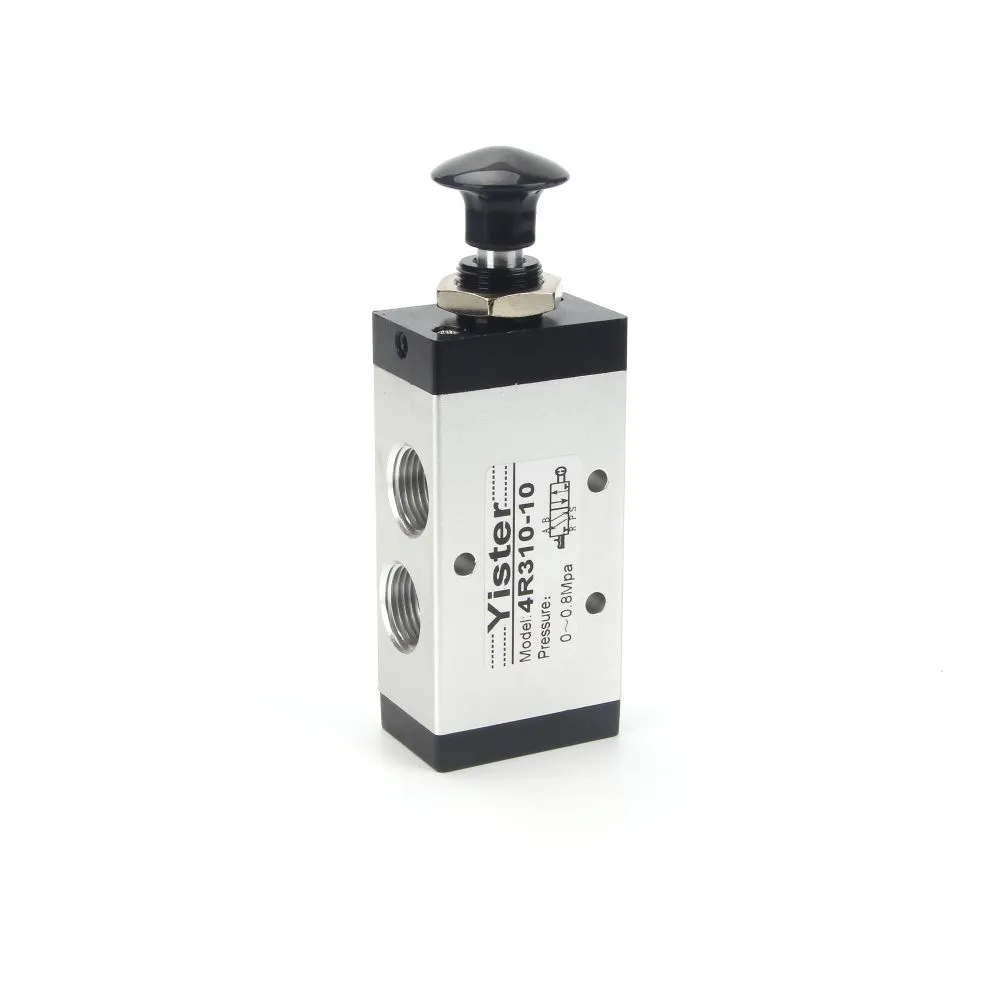

5 Way 2 Position 1/4" Pneumatic Switch 4R210-08 manual hand pull valve

Order code for 4R210-08 hand push pull valve

Symbol for 4L210-08 hand operated valve

Technical parameter

Model	4R110-M5 (4L110-M5)	4R110-06 (4L110-06)	4R210-06 (4L210-06)	4R210-08 (4L210-08)	4R310-08 (4L310-08)	4R310-10 (4L310-10)	4R410-15 (4L410-15)
Fluid	Air
Acting	Manual control direct acting type
Valve type	5/2 way Push Pull Solenoid Valve
Orifice size	5.5mm²	12mm²	14mm²	16mm²	25mm²	30mm²	50mm²
Lubrication	No required
Port size	M5	G1/8”		G1/4”		G3/8”		G1/2”
Protective class	IP65
Pressure range	0-0.8MPa
Proof pressure	1.2MPa
Material of body	Aluminum Alloy
Temperature	-20℃~60℃

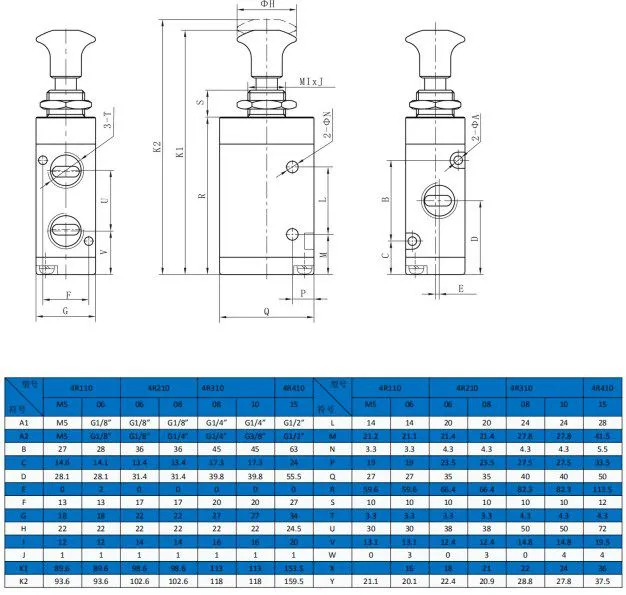

Dimension：

Feature

Aluminum alloy Pneumatic Manual directional Hand operated pull valve 3R/4R series Push pull valve Mechanical valve is manual operation, smooth action, accurate and reliable positioning;

Sliding column structure, good sealing, small volume, light weight, easy disassembly;

Hand draw valve is panel installation, easy to install.

Company information：

Yister specialized in manufacturing pneumatic hand control lever valve. Our company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The products produced by our company are of high quality, reliable performance, good versatility, wide variety and complete specifications. The main products are multiple series of manual hand control valve ,hand lever valve,1/4 hand valve,air hand valve,etc.

Packing&Shipping

FAQ

1.Q:If i have my thoughts, do you design and customize according to my requirement?

A: Certainly,our design team is willing to do for you.

2.Q. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

3. Q:How to make the payment?

A: We accept BankT/T,Western Union,Paypal,or L/C.

4.Q: How Will You Make the Shipment?

A.Sea Shipment by Pallet Packing.

B.Air.

C.Express Service.

5 Q: Do you test all your 4L210-08 hand-operated valve before delivery?

A: Yes, we have 100% test for pneumatic control valve before delivery.

Product Tags: hand pull valve , Mechanical Valve , Hand-Directional Valve , Pneumatic Switch valve , Manual Air Valve , Hand Operated Valve , Hand draw Valve , hand-operated valve , Push Pull Valve
