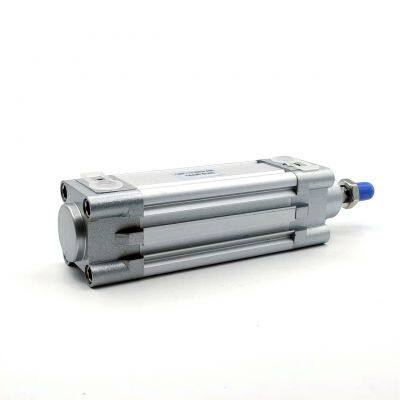

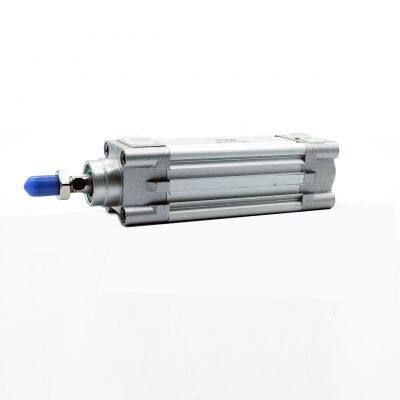

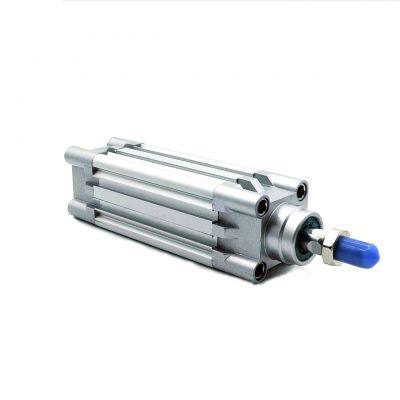

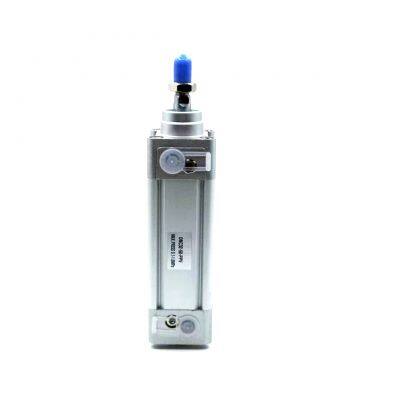

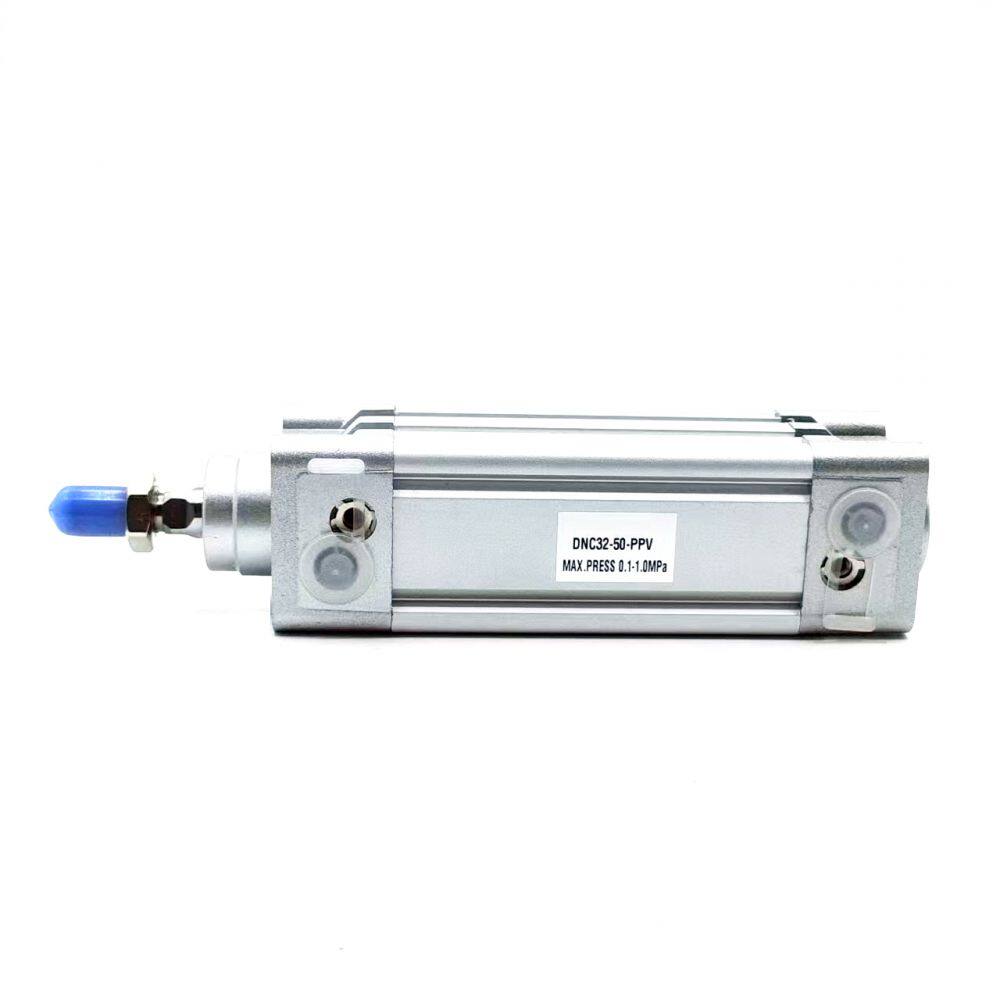

FESTO type DNC32-50-PPV pneumatic standard cylinder

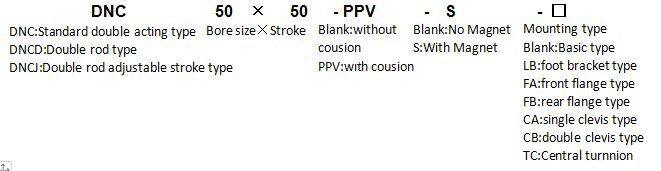

Order code

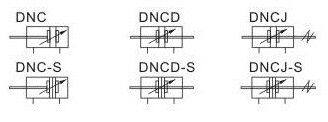

Symbol
Technical parameter
Bore size(mm) | 32 | 40 | 50 | 63 | 80 | 100 | |||
Acting type | Double acting | ||||||||
Fluid | Air | ||||||||
Mounting type | DNC | Basic FA FB CA CB LB TC TCM1 CR FTC | |||||||
DNCD, DNCJ | Basic FA LB TC TCM1 | ||||||||
Operating pressure | 0.15~1.0MPa | ||||||||
Proof pressure | 1.5MPa | ||||||||
Temperature ℃ | -20~70 | ||||||||
Speed range mm/s | 30~800 | ||||||||
Cushion type | Variable cushion | ||||||||
Adjustable cushion stroke | 27mm | 30mm | 36mm | ||||||
Port size | 1/8” | 1/4” | 3/8” | 1/2” | |||||
Stroke
Item no | Bore size (mm) | Standard stroke (mm) | Max.stroke (mm) | Allowable stroke (mm) |
DNC DNCD DNCJ | 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 1000 | 1800 |
40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 1800 | |
50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 1800 | |
63 | 1500 | 1800 | ||
80 | 1500 | 1800 | ||
100 | 1500 | 1800 |

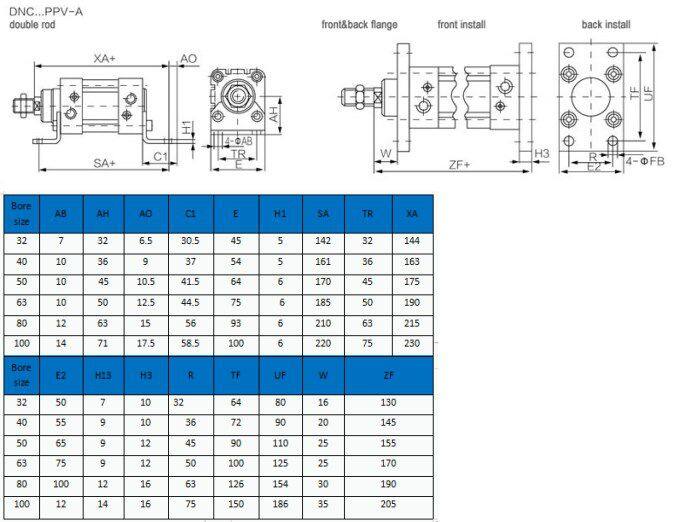

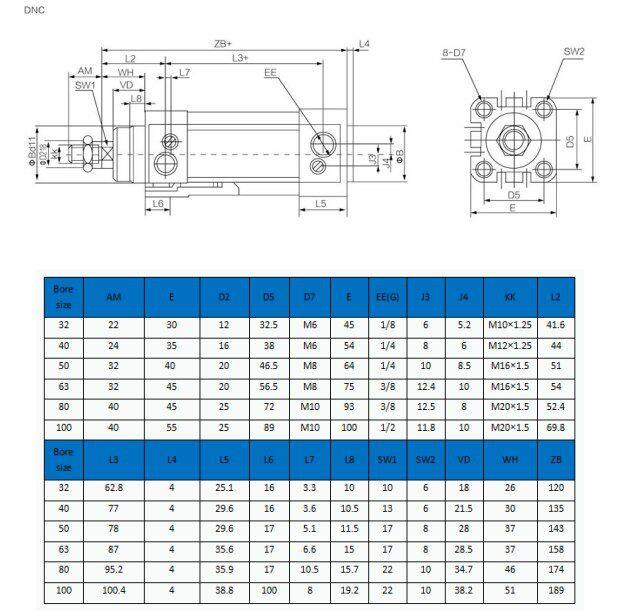

Dimension
Feature
.FESTO type DNC32-50-PPV pneumatic standard cylinderis good quality and low price, and the high-quality sealing ring is durable
.DNC air cylinder is widely used in printing (tension control), semiconductor (spot welding machine, chip grinding), automation control, robot and other industries.
About us
Yister specialized in manufacturing pneumatic standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder,we adopt international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
Packing&Shipping
FAQ
Q:Do you accept OEM?
A: Yes, we offer OEM service.
Q:What certificates can you offer?
A: CE, ISO9001 certificates.
Q:What products do you make and sell?
A: Pneumatic cylinder
Air cylinders
DNC cylinders
Standard cylinders
air control valve
Solenoid valves
Mechanical valve
Hand valve
Air source treatments: air regulator, air filter, air combination, air lubricator
Other pneumatic components
Q:Could i buy 1pc sample first and small order ?
A: Of course, support sample order and small order, especially for new customers under certain condition.
Q:If i have my thoughts, do you design and customize according to my requirement?
A: Certainly,our design team is willing to do for you.
