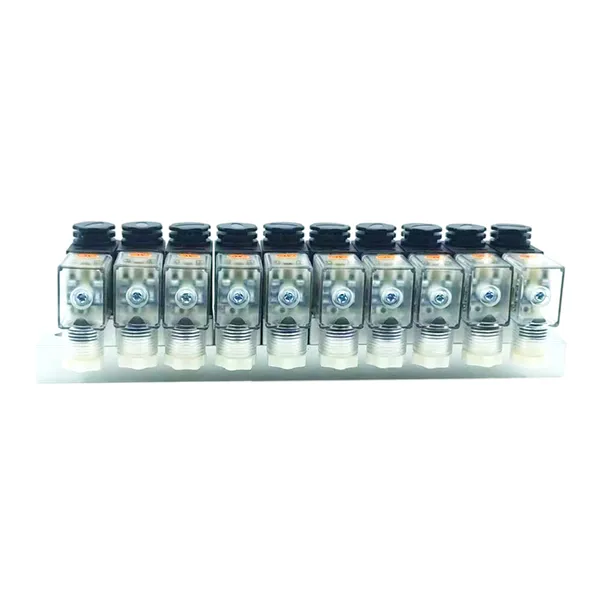

2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve

2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve thumbnail-1
2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve thumbnail-2
2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve thumbnail-3
2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve thumbnail-4
2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve thumbnail-5
2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve photo-1
2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve photo-2
2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve photo-3
2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve photo-4
2V025-06 10 Stations Normally Closed Multiple Manifold Mounted Pneumatic Solenoid Valve photo-5
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yister
Place of Origin:
China
Model Number:
2V025-06 2V025-08
Contact Supplier Request Quote Chat Now
Yueqing Yister Electric Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yister
Place of Origin China
Model Number 2V025-06 2V025-08
Material Alloy
Application General
Structure Control
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Pneumatic
Port Size G1/8
Media Other, Air
Temperature of Media Normal Temperature

2V025-06 10 stations normally closed multiple manifold mounted pneumatic solenoid valve

Order code for manifold mounted solenoid valves

2 Way Solenoid valve Symbol for 2V025-08

Technical parameter

Model

 2V025-06

2V025-06-10F

 2V025-08

Fluid

Air. Water. Oil

Acting

Direct acting

Initial state

2.5

2.5

2.5

Orifice size

0.23

0.23

0.25

Port size

G1/8''

G1/8''

G1/4''

Viscosity limit

Under 20CST

Pressure range

0-1.0MPa(0~145psi)

0-1.0MPa(0~145psi)

0·05-1.0MPa(7~145psi)

Proof pressure

1.5MPa(215psi)

Material of body

Aluminum Alloy

Seal material

NBR


Response speed

Dimension
Feature

.2V025-08 Solenoid Valves（2 Way Normally Closed ）DC24V/1/4NPT（Please air in the direction of the arrow above the product）
.2v025-08 has high precision pilot head, up to 5 times/second response speed, suitable for a wide range of, responsive, smooth work, high-speed use without jam.

About us

Yister pneumatic factory specialized in manufacturing pneumatic products,such as PU air pipe, quick coupling, solenoid valve, foot valve, mechanical valve, buffer, sliding switch, water valve, floating joint, standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder, magnetic switch, air source treatment parts, double, triple, air filter, pressure regulating valve, pressure reducing valve, manifold.
