SMC standard 180 degree angular style double acting MHY2-20D pneumatic cylinder air gripper

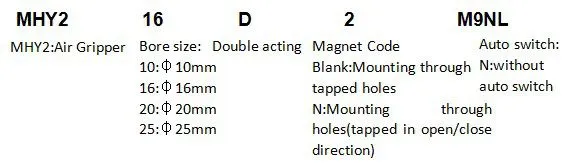

Order code
Symbol
Technical parameter
Bore size(mm) |
10 |
16 |
20 |
25 |
Acting type |
Double acting |
|||
Fluid |
Air |
|||
Operating pressure |
0.15~0.7MPa |
|||
Max.frequency |
60(c.p.m) |
|||
Repeatability |
±0.2mm |
|||
Temperature ℃ |
-5~+60 |
|||
Gripping force |
0.16N.m |
0.55N.m |
1.10N.m |
2.30N.m |
Open or close angle |
Open:-2°~-5° Close:180°±2° |
|||
Cushion type |
Bumper |
|||
Lubrication |
Cylinder:Not required;Gripper jaws:Lubricate grease |
|||
Port size |
M5×0.8 |
|||

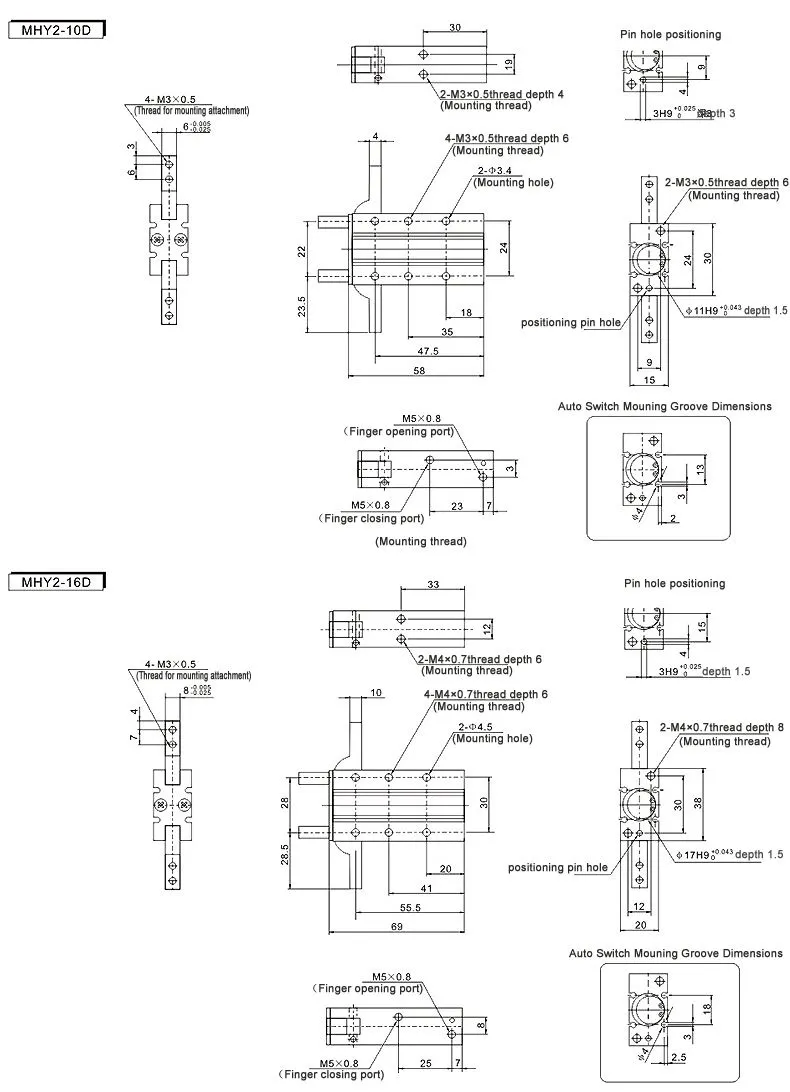

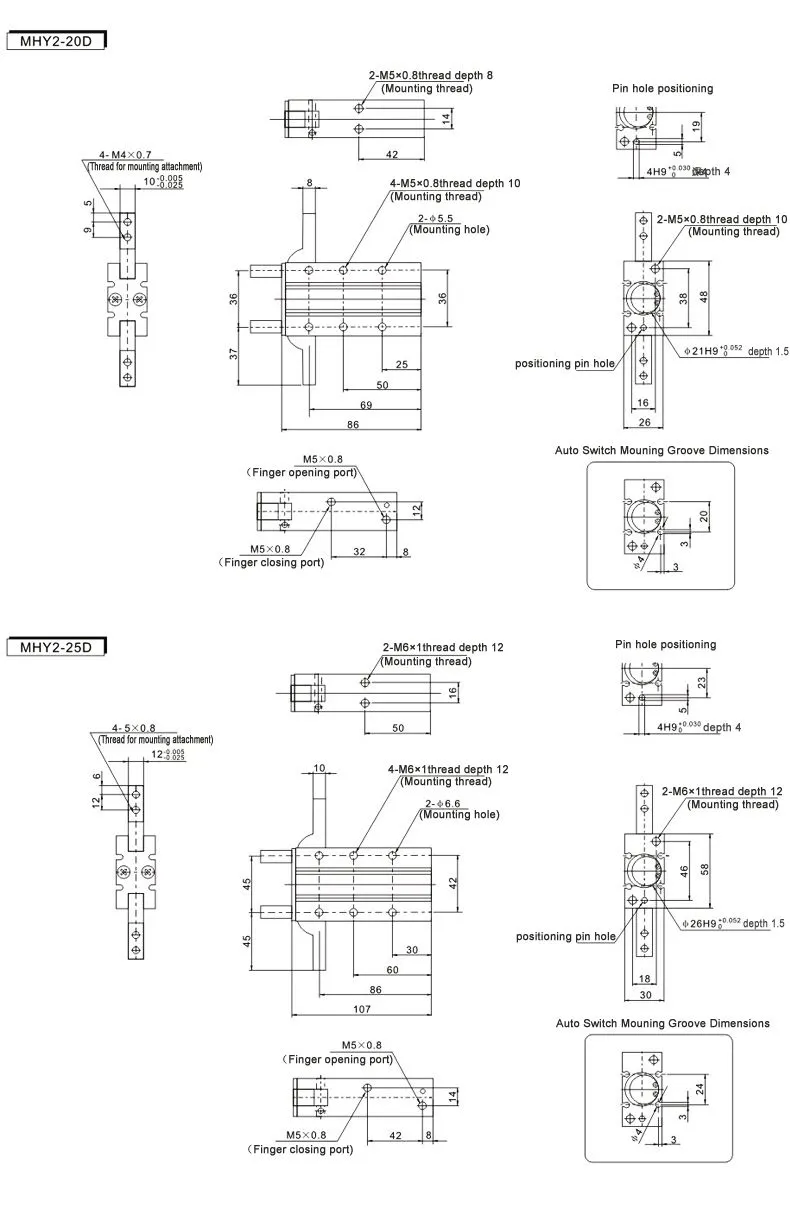

Dimension
About us
Yister specialized in manufacturing pneumatic standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder,we adopt international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The main performance indicators of the products have reached the international advanced level.
Feature

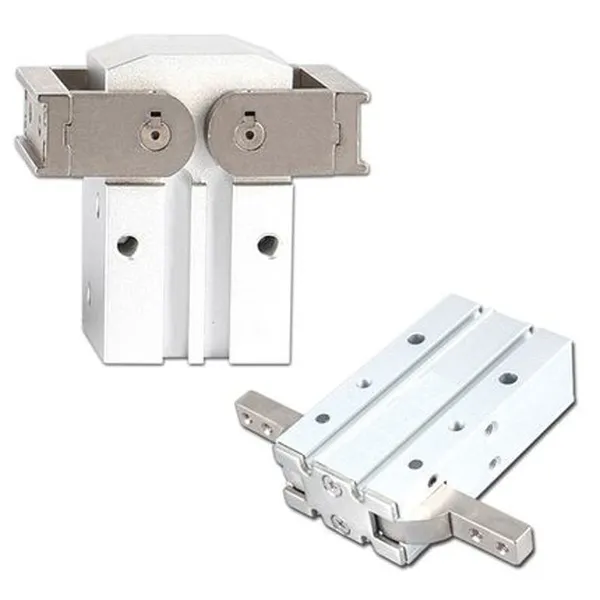

The MHY2 is a compact 180-degree angular gripper. Its size and mass allow for small, lightweight tooling, while delivering large gripping forces via piston/cam design. The MHY2 gives you maximum installation flexibility with mounting options on 4 sides and recessed auto switch grooves on either side of the gripper. Precision reference points on body and fingers are standard.
Shipping&Packing
FAQ
Q:Do you accept OEM?
A: Yes, we offer OEM service.
Q:What certificates can you offer?
A: CE, ISO9001 certificates.
Q:What products do you make and sell?
A: Pneumatic cylinder
Air cylinders
Air tubes and fittings
air processing unit
air control valve
Solenoid valves
Mechanical valve
Hand valve
Air source treatments: air regulator, air filter, air combination, air lubricator
Other pneumatic components
Q:Could i buy 1pc sample first and small order ?
A: Of course, support sample order and small order, especially for new customers under certain condition.
Q:If i have my thoughts, do you design and customize according to my requirement?
A: Certainly,our design team is willing to do for you.
