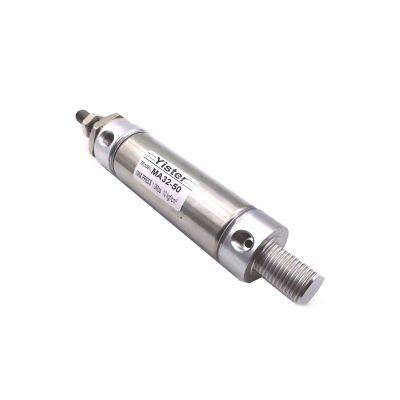

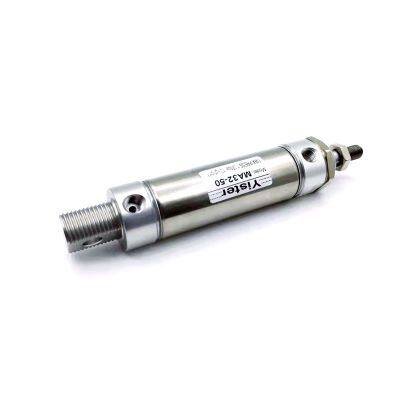

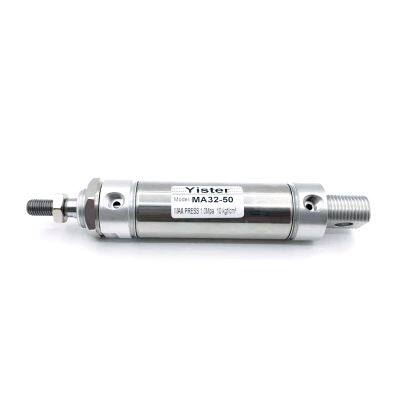

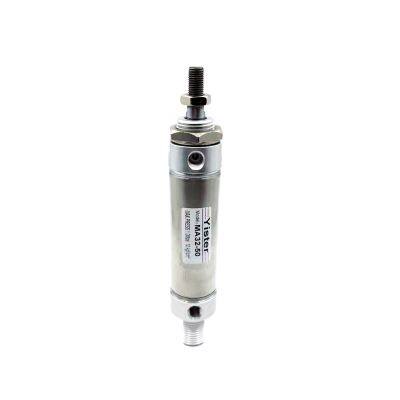

Airtac standard MA Series piston pneumatic air cylinder Stainless Steel Mini air Cylinders MA16 MA20 MA25 MA32 MA40 MA50 MA63
Order code
Symbol
Technical parameter
Bore size(mm) |
16 |
20 |
25 |
32 |
40 |
Acting type |
Double acting mini cylinders |
||||
Fluid |
Air |
||||
Operating pressure |
0.1~0.9MPa |
||||
Proof pressure |
1.35MPa |
||||
Temperature ℃ |
-5~60 |
||||
Cushion type |
No cushion |
||||
Port size |
M5 |
1/8” |
|||
Body material |
Stainless Steel |
||||
Stroke
Bore size(mm) |
Standard stroke(mm) for MA stainless steel mini cylinder |
Max std stroke (mm) |
Max Stroke (mm) |
16 |
25 50 75 100 125 150 175 200 |
300 |
500 |
20 |
25 50 75 100 125 150 175 200 300 |
500 |
650 |
25 |
25 50 75 100 125 150 175 200 250 300 |
500 |
650 |
32 |
25 50 75 100 125 150 175 200 250 300 |
500 |
650 |
40 |
25 50 75 100 125 150 175 200 250 300 |
500 |
650 |
Dimension
Feature
.High precision chrome plated piston rod of MA round body mind cylinder is wear-resistant and durable
.The two-way sealing design strengthens the sealing performance of the piston rod and has the function of oil storage
.The built-in magnetic ring in the air cylinder supports the installation of magnetic switch and bandage to adapt to a variety of working scenes.
.MA series pneumatic cylinder could be adjust stroke.
About us
Yister specialized in manufacturing pneumatic stainless steel mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder,we adopt international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
Packing&Shipping
FAQ
Q:Do you accept OEM?
A: Yes, we offer OEM service.
Q:What certificates can you offer?
A: CE, ISO9001 certificates.
Q:What products do you make and sell?
A: Pneumatic cylinder
Air cylinders
Air tubes and fittings
air processing unit
air control valve
Solenoid valves
Mechanical valve
Hand valve
Air source treatments: air regulator, air filter, air combination, air lubricator
Other pneumatic components
Q:Could i buy 1pc sample first and small order ?
A: Of course, support sample order and small order, especially for new customers under certain condition.
Q:If i have my thoughts, do you design and customize according to my requirement?
A: Certainly,our design team is willing to do for you.
