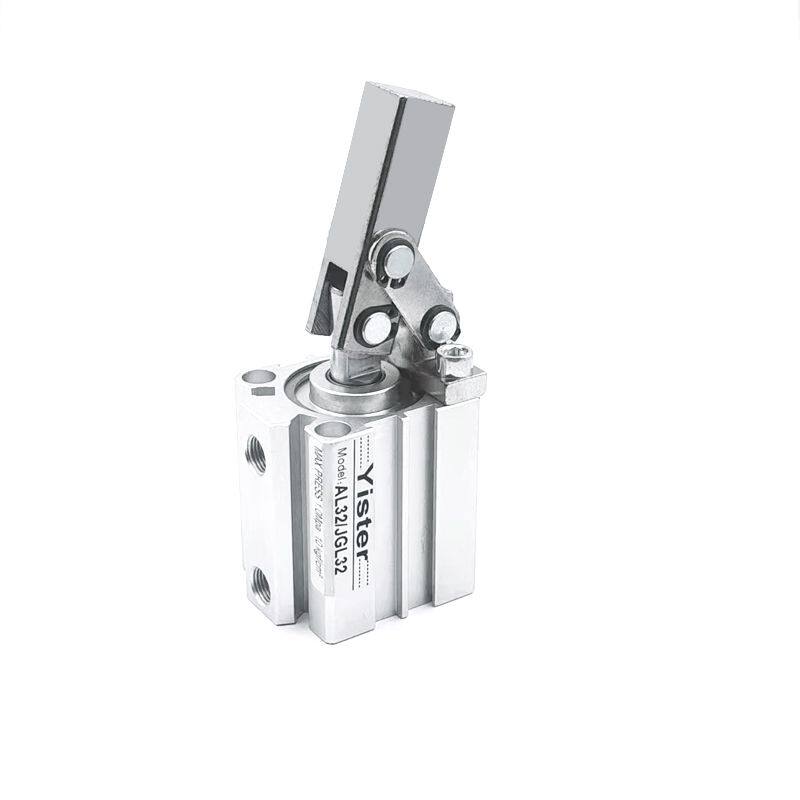

JGL32 series AL32 Double acting Clamping Rocker Arm lever pneumatic air cylinder With magnetic
Order code
Symbol
Technical parameter
Bore size(mm) |
TACQ12 |
TACQ16 |
TACQ20 |
TACQ25 |
TACQ32 |
TACQ40 |
TACQ50 |
TACQ63 |
TACQ80 |
TACQ100 |
|
Acting type |
Double acting |
||||||||||
Fluid |
Air |
||||||||||
Operating pressure |
0.15~1.0MPa |
||||||||||
Proof pressure |
1.5MPa |
||||||||||
Speed range |
30~500mm/s |
||||||||||
Temperature ℃ |
-5~+60 |
||||||||||
Stroke tolerance range |
+1.0 0 |
||||||||||
Cushion type |
Bumper |
||||||||||
Port size |
M5×0.8 |
1/8” |
1/4” |
3/8” |
|||||||

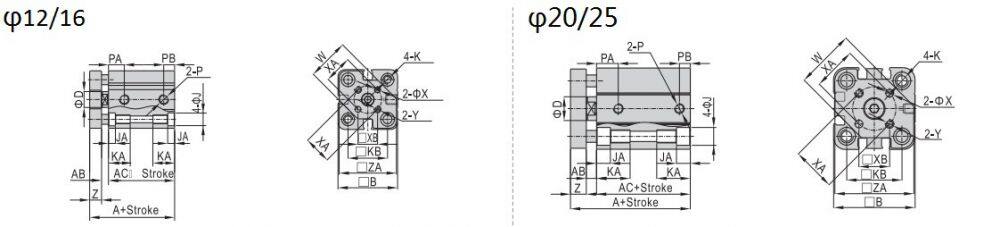

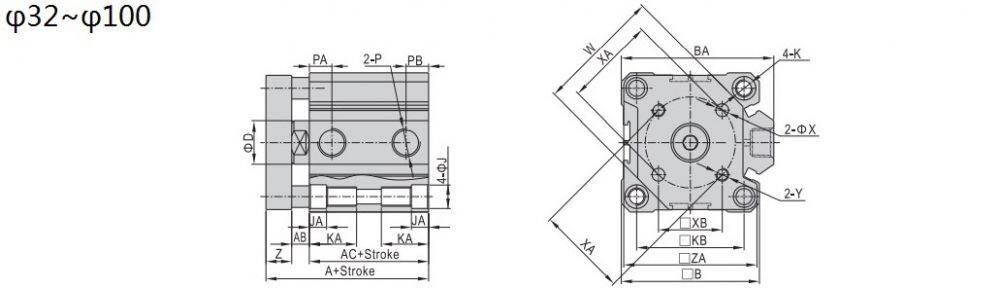

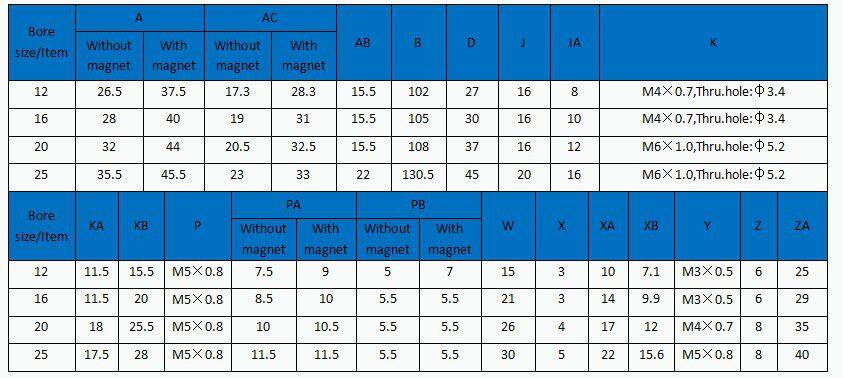

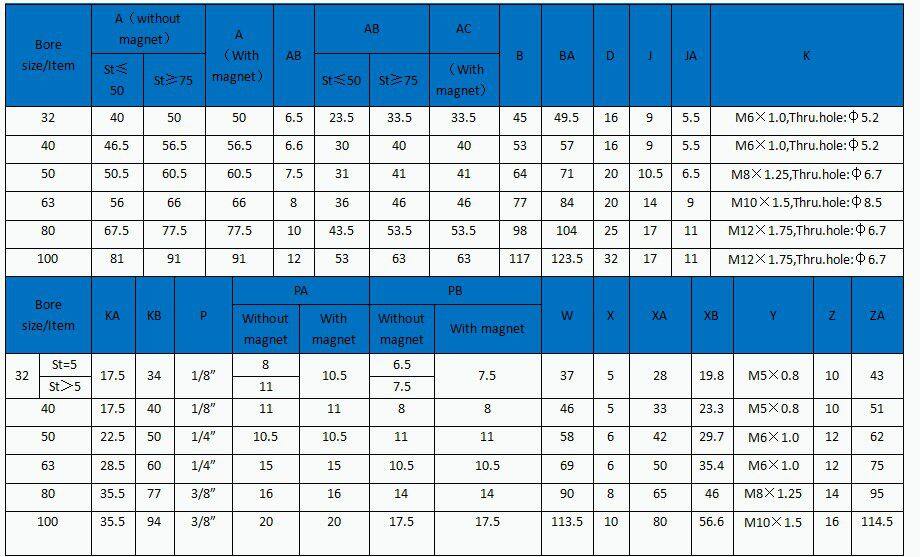

Dimension
Stroke
Bore size(mm) |
Standard stroke(mm) |
Tolerate stroke(mm) |
Max. Stroke(mm) |
12 |
10 20 30 40 50 60 70 |
70 |
100 |
16 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
20 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
25 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
32 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
About us
Yister specialized in manufacturing pneumatic standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder,we adopt international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The main performance indicators of the products have reached the international advanced level.
Shipping&Packing
Feature
.Implement JIS standard, with double guide rod type structure;
.The cylinder body and the front and rear covers are fixed by C-shaped buckle rings, and the piston and piston rod are riveted structure, which is compact and reliable;
. The inner diameter of the cylinder is honed, wear-resistant and durable
. The guiding distance of the front cover is lengthened, and the guiding performance is good
. Compact structure, can effectively save installation space;
. There is a magnetic induction switch slot around the cylinder, which is convenient to install the induction switch;
. The double guide rod anti-rotation structure has good anti-bending and anti-torsion performance, and can withstand large moving loads and lateral load
