Home > Products > pneumatic cylinders > Airtac type SC SU DNC type double acting tie rod air compressor adjustable stroke standard pneumatic air cylinders
Airtac type SC SU DNC type double acting tie rod air compressor adjustable stroke standard pneumatic air cylinders
- 20000 Piece / Pieces per Month
- NINGBO OR SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
- SMC AIRTAC type FRL AC2000 air source treatment combination filter regulator oil lubricator
- 4M210/4M310 NAMUR solenoid valve 220V 1/4 no electro pneumatic air control valves 4V210-08 for butterfly valve
- K23JC3-L6 Pneumatic 3/2 Way roller lever manual control Mechanical Reversing Valve for paper cup machine
- Pneumatic Air Solenoid Valve M5PP210-08 Mechanical Pneumatic Valve
- Pneumatic Control Valve M5R210-08 5/2 Way Mechanical Valve With Roller Handle
- Lever Type M5Y 5 Way Series M5Y210-08 Manual Valve
Product Details
Brand Name: | Yister | Place of Origin: | China | Model Number: | SC SCD SCJ |
Type: | Cylinder |
Product Description

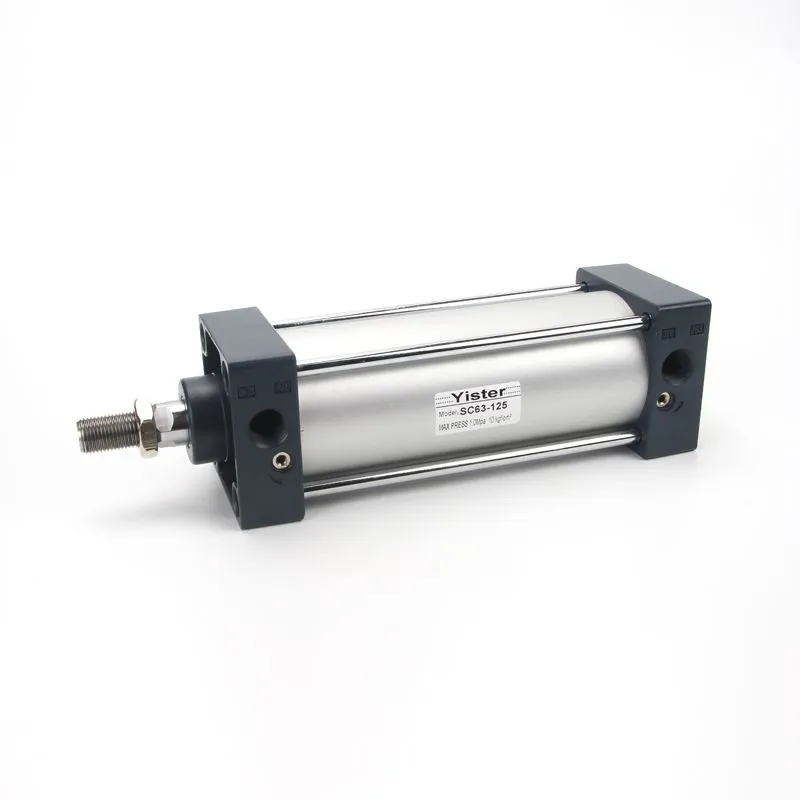

Airtac type SC SU DNC type double acting tie rod air compressor adjustable stroke standard pneumatic air cylinders
Order code for standard pneumatic air cylinders
Symbol for pneumatic cylinders
Technical parameter
Bore size(mm) | SC32 | SC40 | SC50 | SC63 | SC80 | SC100 | |||
Acting type | Double acting | ||||||||
Fluid | Air | ||||||||
Mounting type | SC | Basic FA FB CA CB LB TC TCM1 | |||||||
SCD,SCJ | Basic FA LB TC TCM1 | ||||||||
Operating pressure | 0.15~1.0MPa | ||||||||
Proof pressure | 1.5MPa | ||||||||
Temperature ℃ | -5~60 | ||||||||
Speed range mm/s | 30~800 | ||||||||
Cushion type | Variable cushion | ||||||||
Adjustable cushion stroke | 21 | 28 | 29 | ||||||
Port size | 1/8” | 1/4” | 3/8” | 1/2” |
Stroke
Item no | Bore size (mm) | Standard stroke (mm) | Max.stroke (mm) | Allowable stroke (mm) |
SC SCD SCJ | 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 1000 | 1800 |
40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
| 1200 | 1800 | |
50 | 1200 | 1800 | ||
63 | 1500 | 1800 | ||
80 | 1500 | 1800 | ||
100 | 1500 | 1800 |
Dimension
Feature
.SC series Air Cylinder Double Acting Standard Pneumatic Cylinder meets Airtac standard
.There is an adjustable buffers at the terminals of the cylinder except for mounted cushion.
.We can offer different kinds of mounting style according to Airtac standard, like Foot mounting, Front flange mounting, Rear-flange mounting,and so on.
.Different thread type can be offered according to customers' requirements, e.g.:BSP, NPT etc.
.Don’t need lubricate on piston rod by oil
About us
Yister specialized in manufacturing pneumatic standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder,we adopt international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
Packing&Shipping
FAQ
Q:Do you accept OEM?
A: Yes, we offer OEM service.
Q:What certificates can you offer?
A: CE, ISO9001 certificates.
Q:What products do you make and sell?
A: Pneumatic cylinder:DNC series standard cylinder, SU series air cylinder, SC series pneumatic air cylinders
Air cylinders
Air tubes and fittings
air processing unit
air control valve
Solenoid valves
Mechanical valve
Hand valve
Air source treatments: air regulator, air filter, air combination, air lubricator
Other pneumatic components
Q:Could i buy 1pc sample first and small order ?
A: Of course, support sample order and small order, especially for new customers under certain condition.
Q:If i have my thoughts, do you design and customize according to my requirement?
A: Certainly,our design team is willing to do for you.
