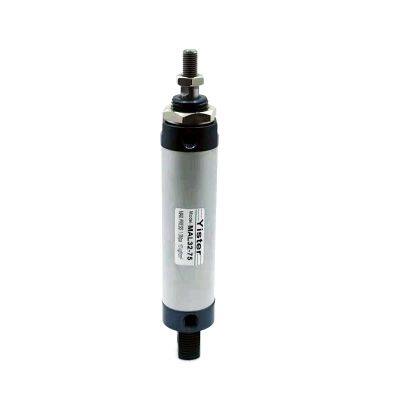

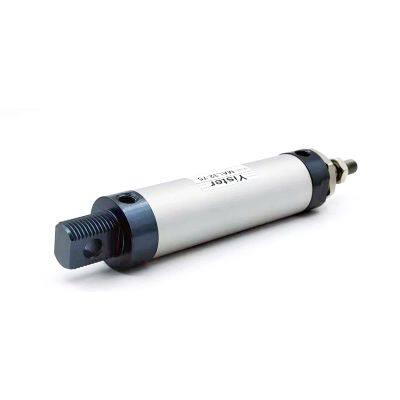

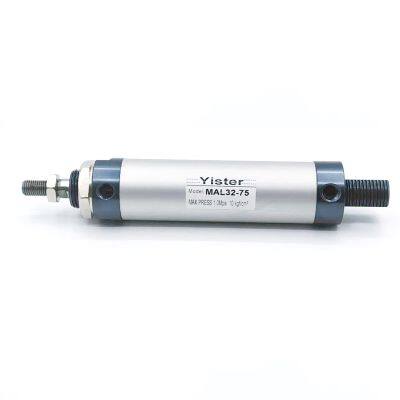

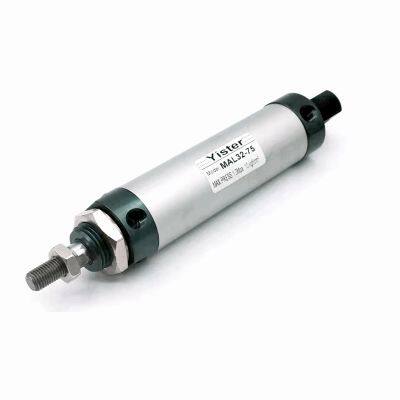

Single piston single acting Aluminum alloy MAL series mini pneumatic cylinder with magnetic

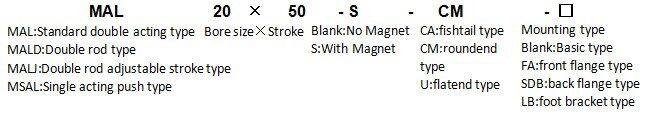

Order code

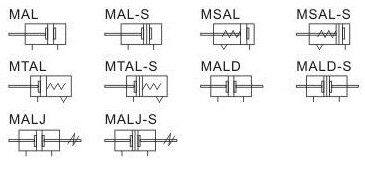

Symbol
Technical parameter
Bore size(mm) |
16 |
20 |
25 |
32 |
40 |
|||
Acting type |
Double acting |
|||||||
Fluid |
Air |
|||||||
Operating pressure |
0.1~1.0MPa |
|||||||
Proof pressure |
1.5MPa |
|||||||
Temperature ℃ |
-20~70 |
|||||||
Speed range mm/s |
30~800 |
|||||||
Cushion type |
Standard type |
Anti-crush cushion |
||||||
Bumper type |
Adjustable cushion |
|||||||
Port size |
M5 |
1/8” |
1/4” |
|||||
Stroke
|
Bore size (mm) |
Standard stroke (mm) |
Max.stroke (mm) |
Allowable stroke (mm) |
16 |
25 50 75 80 100 125 150 160 175 200 |
300 |
500 |
20 |
25 50 75 80 100 125 150 160 175 200 250 300 |
500 |
650 |
25 |
25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 |
500 |
650 |
32 | |||
40 |

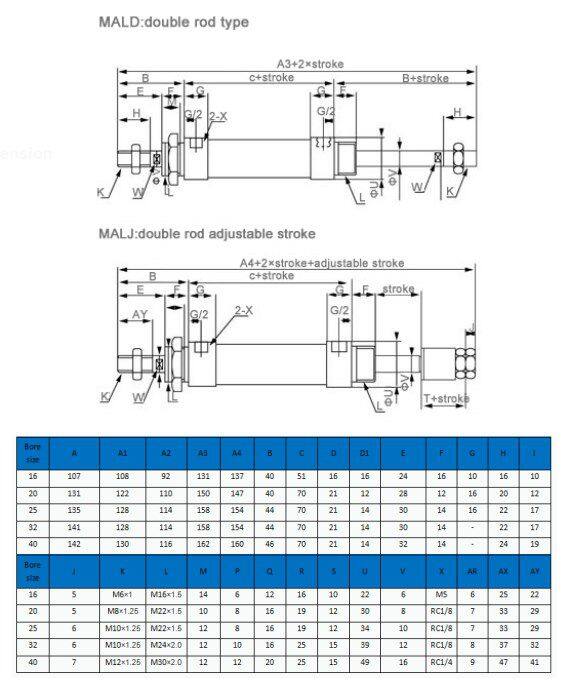

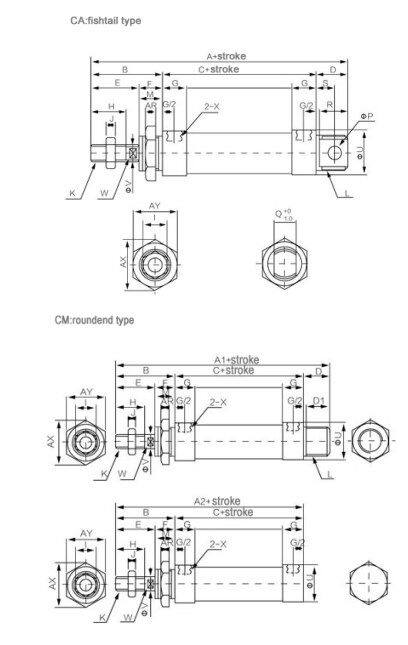

Dimension
Feature
.MAL mini cylinder is adapt the bearing with oil, lubrication is not required for the piston rod.
.Not only the fixed cushion, the adjustable cushion is also optional in the end of the cylinder, so that it will be calm when changing the directions.
.Heat resistance performance With anti-heat material, the working temperature of the cylinder could be up to 150℃
. Mluti installation accessories are available
. A magnet is installed on the piston, by switching the button to check the operation position of the cylinder
About us

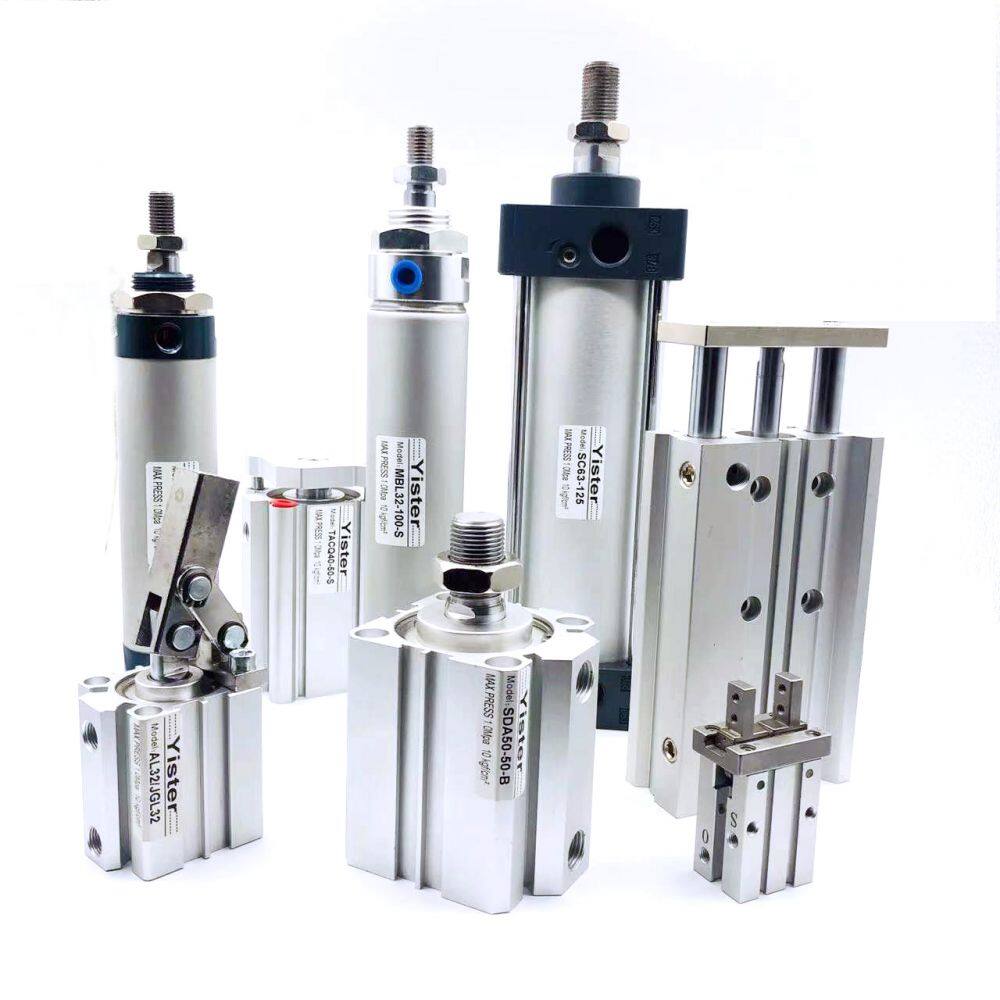

Yister specialized in manufacturing pneumatic standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder,we adopt international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
Packing&Shipping
FAQ
Q:Do you accept OEM?
A: Yes, we offer OEM service.
Q:What certificates can you offer?
A: CE, ISO9001 certificates.
Q:What products do you make and sell?
A: Pneumatic cylinder
Air cylinders
Air tubes and fittings
air processing unit
air control valve
Solenoid valves
Mechanical valve
Hand valve
Air source treatments: air regulator, air filter, air combination, air lubricator
Other pneumatic components
Q:Could i buy 1pc sample first and small order ?
A: Of course, support sample order and small order, especially for new customers under certain condition.
Q:If i have my thoughts, do you design and customize according to my requirement?
A: Certainly,our design team is willing to do for you.
