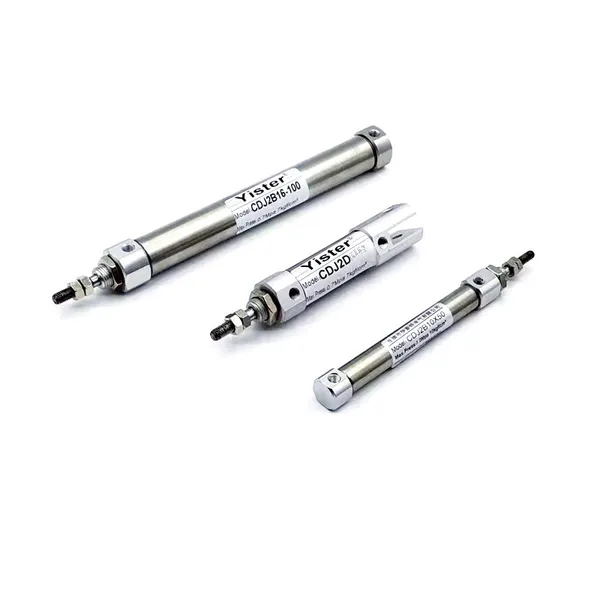

Single Rod double action 10/12/16mm Bore 10~150mm Stroke CDJ2B stainless steel mini Pneumatic Air Cylinder
Order code
Symbol
Technical parameter
Bore size(mm) |
CDJ2B6 |
CDJ2B10 |
CDJ2B16 |
Acting type |
Double acting,Single acting:spring back/spring out |
||
Fluid |
Air |
||
Operating pressure |
0.1~0.7MPa |
||
Proof pressure |
1.05MPa |
||
Temperature ℃ |
-5~60 |
||
Cushion type |
No cushion |
||
Port size |
M5 |
||
Body material |
Stainless Steel |
||
Stroke
Bore size(mm) |
Standard stroke(mm) |
6 |
15 20 25 30 35 40 45 50 55 60 |
10 |
15 20 25 30 35 40 45 50 55 60 |
16 |
15 20 25 30 35 40 45 50 55 60 75 100 125 |

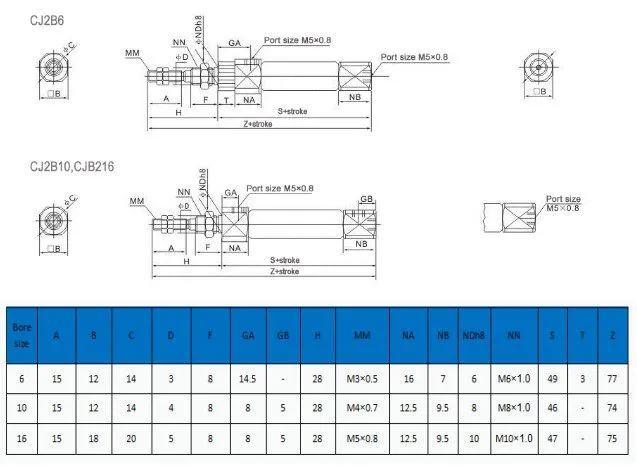

Dimension
Feature
.Single Rod double action 10/12/16mm Bore 10~150mm Stroke CDJ2B stainless steel mini Pneumatic Air Cylinder is widely used textile, printing, rubber, paper industries.
.The axial installation and vertical installation is optional
. acting type could be double acting, single extend acting, single return acting etc
.Both ends have rubber buffering.
About us
Yister specialized in manufacturing pneumatic standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder,we adopt international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
Packing&Shipping
FAQ
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it is about 5-10 days if the goods are not in stock, it is according to quantity .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance by air. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:What is the MOQ for your products?
A: There is no special requirement for standard products.
Q: How to place the order?
A: You could send the order to our Email directly, then we send our PI with our company bank information,Paypal ,western union, etc.
