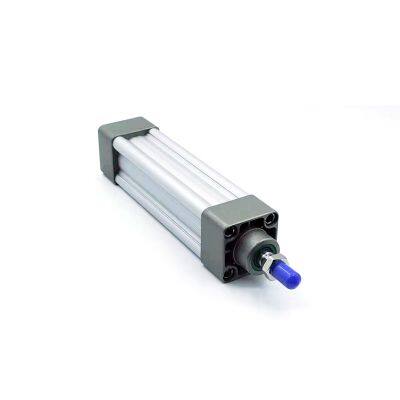

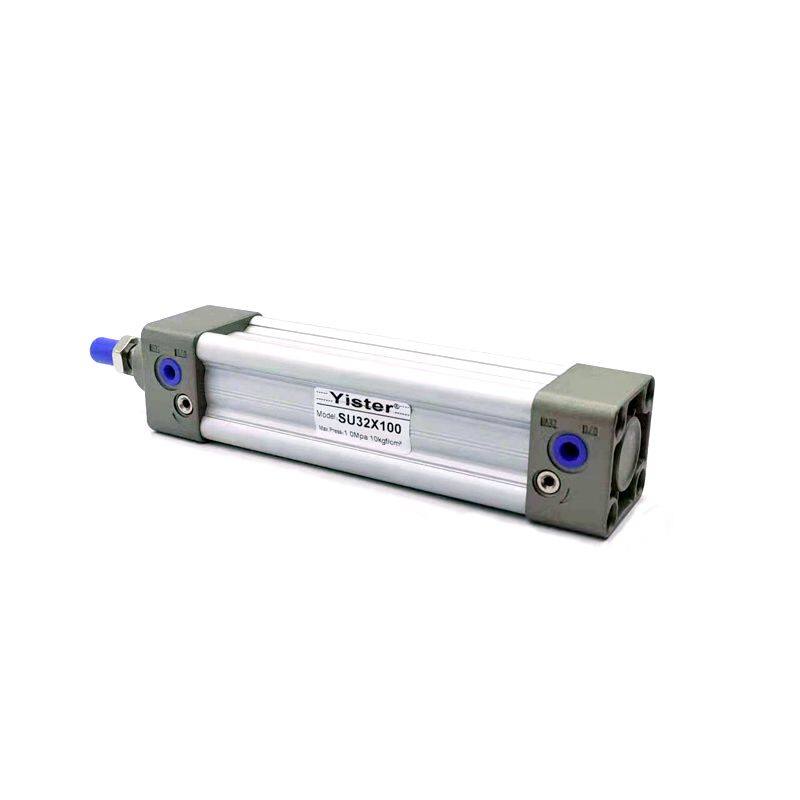

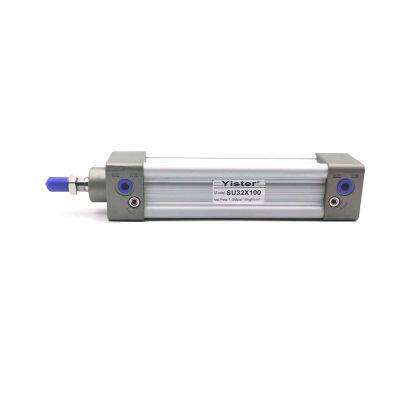

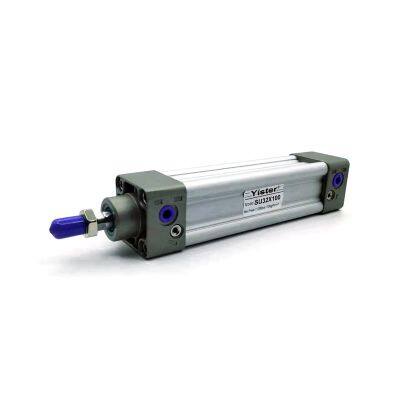

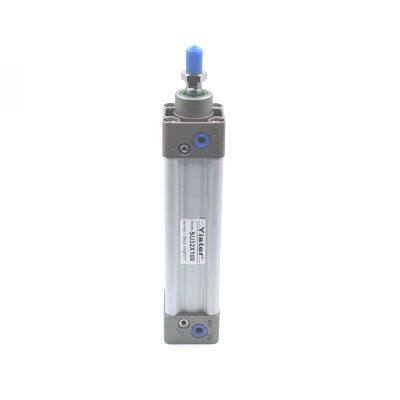

Aluminum Alloy Airtac type SU standard double rod air pneumatic cylinders

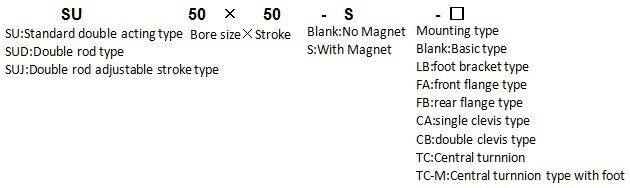

Order code

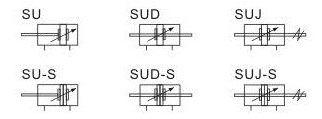

Symbol
Technical parameter
Bore size(mm) | 32 | 40 | 50 | 63 | 80 | 100 | |||
Acting type | Double acting | ||||||||
Fluid | Air | ||||||||
Mounting type | SU | Basic FA FB CA CB LB TC TCM1 | |||||||
SUD,SUJ | Basic FA LB TC TCM1 | ||||||||
Operating pressure | 0.15~1.0MPa | ||||||||
Proof pressure | 1.5MPa | ||||||||
Temperature ℃ | -5~60 | ||||||||
Speed range mm/s | 30~800 | ||||||||
Cushion type | Variable cushion | ||||||||
Adjustable cushion stroke | 21 | 28 | 29 | ||||||
Port size | 1/8” | 1/4” | 3/8” | 1/2” | |||||
Stroke
Item no | Bore size (mm) | Standard stroke (mm) | Max.stroke (mm) | Allowable stroke (mm) |
SU SUD SUJ | 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 1000 | 1800 |
40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
| 1200 | 1800 | |
50 | 1200 | 1800 | ||
63 | 1500 | 1800 | ||
80 | 1500 | 1800 | ||
100 | 1500 | 1800 |

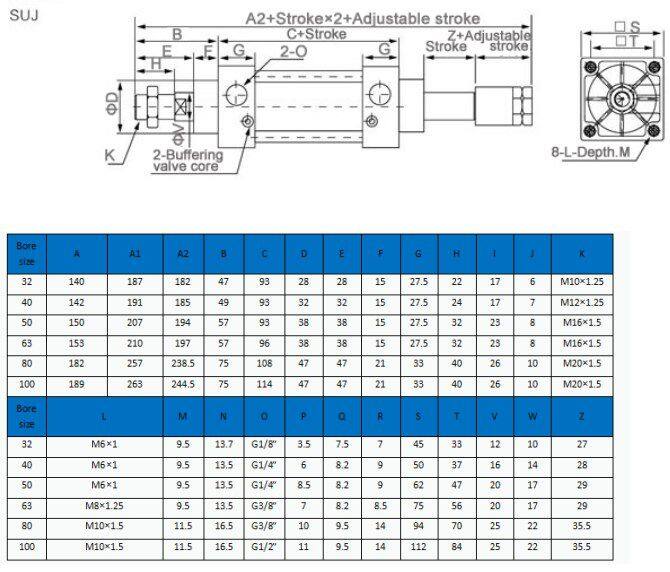

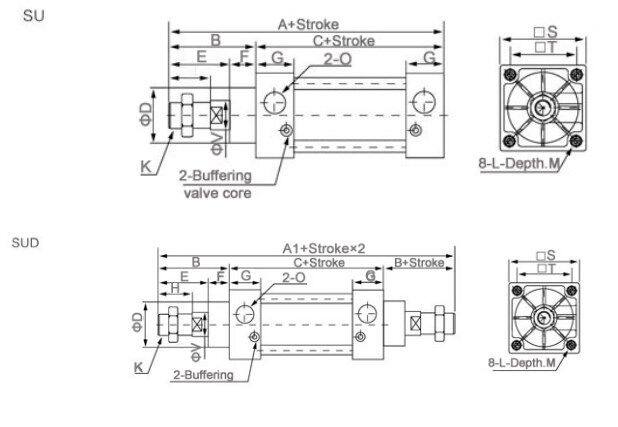

Dimension
Feature
.SU Standard cylinder manufactured is tie rod type cylinder
.The seal of piston adopts heterogeneous two way seal structure. Its dimension is tight and it has the function of oil reservation.
. It is no tie rod cylinder. The cylinder barrel is "Mickey Mouse" shape, and have good corrosion.
. Compared with ISO15552 standard cylinder, SU series cylinder with the same bore size is shorter.
. The buffer adjustment of cylinder is smooth and steady.
. Mounting accessories are the same as SC series pneumatic air cylinder.
. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150℃.
About us
Yister specialized in manufacturing pneumatic standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder,we adopt international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
Packing&Shipping
FAQ
Q:Do you accept OEM?
A: Yes, we offer OEM service.
Q:What certificates can you offer?
A: CE, ISO9001 certificates.
Q:What products do you make and sell?
A: Pneumatic cylinder
Air cylinders
Air tubes and fittings
air processing unit
air control valve
Solenoid valves
Mechanical valve
Hand valve
Air source treatments: air regulator, air filter, air combination, air lubricator
Other pneumatic components
Q:Could i buy 1pc sample first and small order ?
A: Of course, support sample order and small order, especially for new customers under certain condition.
Q:If i have my thoughts, do you design and customize according to my requirement?
A: Certainly,our design team is willing to do for you.
