Double acting MBL series Aluminum barrel mini round body air pneumatic cylinders

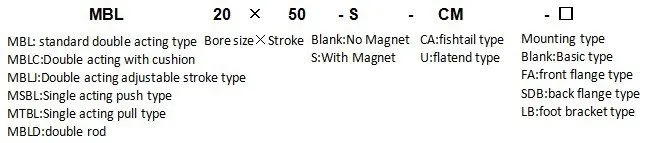

Order code

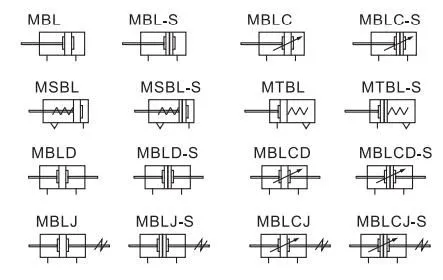

Symbol
Technical parameter
Bore size(mm) |
20 |
25 |
32 |
40 |
50 |
63 |
|
Acting type |
MSBL/MTBL |
Single acting |
|||||
MBL/MBLD/MBLJ |
Double acting |
||||||
MBLC |
Double acting with cushion |
||||||
Fluid |
Air |
||||||
Operating pressure |
0.1~1.0MPa |
||||||
Proof pressure |
1.5MPa |
||||||
Temperature ℃ |
-20~70 |
||||||
Speed range mm/s |
30~800 |
||||||
Cushion type |
MBL,MBLJ,MSBL,MTBL,MBLD |
Bumper |
|||||
MBLC |
Adjustable cushion |
||||||
Port size |
1/8” |
1/4” |
|||||
Stroke
|
Bore size (mm) |
Standard stroke (mm) |
Max.stroke (mm) |
Allowable stroke(mm) |
MBL20/25 |
MBL/MBLC:10 15 20 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 MBLD/MBLJ:10 15 25 50 75 80 100 125 150 160 175 200 250 300 MSBL:10 15 20 25 50 75 80 100 125 150 MTBL:10 15 20 25 50 75 80 100 |
300 |
800 |
MBL32/40 |
MBL/MBLC:10 15 20 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 MBLD/MBLJ:10 15 20 25 50 75 80 100 125 150 160 175 200 250 300 MSBL:10 15 20 25 50 75 80 100 125 150 MTBL:10 15 20 25 50 75 80 100 |
300 |
800 |
MBL50/63 |
MBL/MBLC:10 15 20 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 MBLD/MBLJ:10 15 25 50 75 80 100 125 150 160 175 200 250 300 |
300 |
800 |

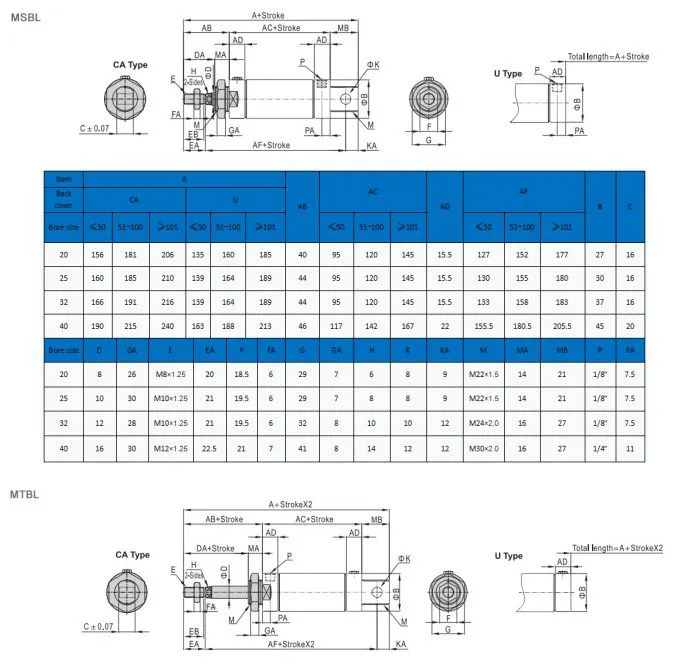

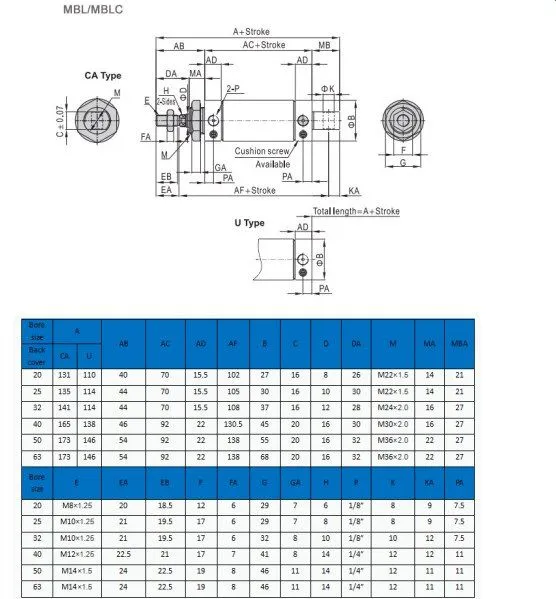

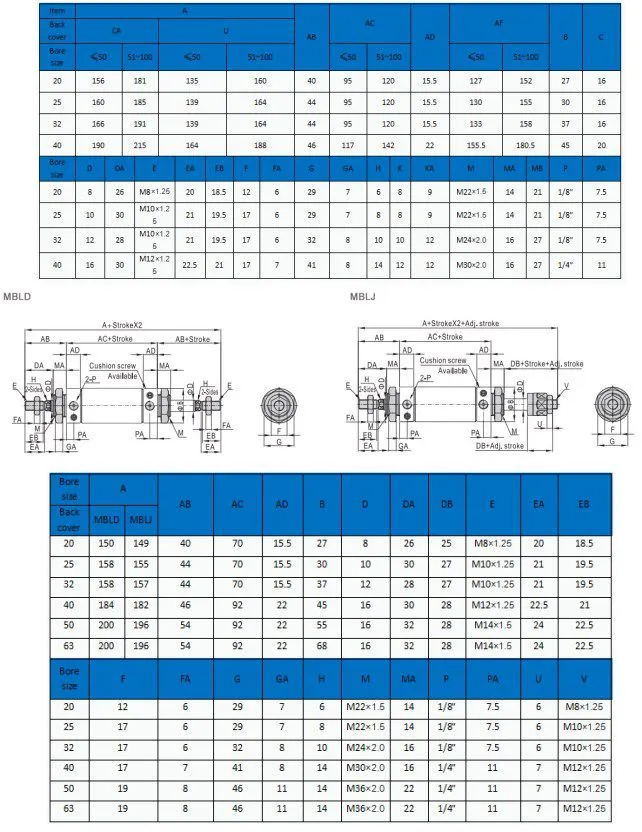

Dimension
Feature
.MBL aluminum barrel mini cylinder is manufactured with riveted structure,to connect front and back cover and cylinder tube to make it credibility
.Piston adopts heterogenerous two-way seal structure,it has compact size and has the function of grease reservation
There are several modes of back cover, which makes the installation of cylinder more convenient.
.Several cylinders and mounting accessories for your choice
