Home > Industrial Equipment & Components > Valve > Ball Valve > 12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch

12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch

Yueqing Yister Electric Co.,Ltd.
12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch thumbnail-1
12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch thumbnail-2
12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch thumbnail-3
12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch thumbnail-4
12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch thumbnail-5
12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch photo-1
12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch photo-2
12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch photo-3
12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch photo-4
12V 3 Way 2 Position 1/8 Air Solenoid Operated Valve Switch photo-5
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yister
Place of Origin:
China
Model Number:
3V110-M5,3V110-06
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yister
Place of Origin China
Model Number 3V110-M5,3V110-06
Material Other, Aluminum
Application Other, Air solenoid valve
Structure Control
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Pneumatic
Port Size M5,G1/8
Media Other, Air
Temperature of Media Normal Temperature

12V 3 way 2 position 1/8 air solenoid operated valve switch

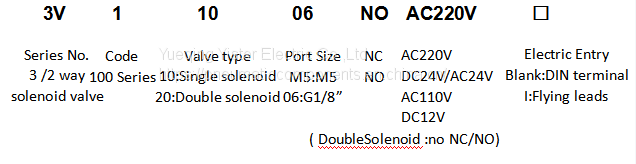

Order code

Symbol for solenoid operated valve

Technical parameter

Model

 3V110-M5

3V120-M5

3V110-06

3V120-06

Fluid

Air

Acting

Internal pilot or External pilot

Original state

NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO

Lubrication

No required

Orifice size

5.5mm²

12.0mm²

Port size

In=out=M5

In=out=G1/8''

Protective class

IP65

Pressure range

0.15-0.8MPa(21~114psi)

Proof pressure

1.2MPa(215psi)

Material of body

Aluminum Alloy

Temperature

-5℃~60℃

Response speed

<0.05s

Dimension for 1/8" Solenoid valve

Feature

3V110-M5 3V110-06 solenoid valve is applied widely to the pneumatic system and mechanism, such as textile industry, light industry and chemical industry, etc.
Can generally be used to drive the air flow direction of the double-acting mechanical cylinder

FAQ

1. what is your products?

Yister Pneumatic produce Pneumatic solenoid valve, Mechanical valve, foot valve, Air control valve, hand valve, cylinder, PU Tube ,pneumatic fittings,etc.

2. how can we guarantee quality?

Warrenty is one-year. 100% Inspection before shipment;

3.How could we contact you ?

Email:info(at)yister.com.cn,WA:+86-13868372447

Product Tags: solenoid operated valve , air solenoid valve , 3V110 solenoid valve , solenoid valve 3 way 2 position , 1/8 solenoid valve , 12v solenoid valve , solenoid valve switch , 3 way solenoid valves , pneumatic valve solenoid
