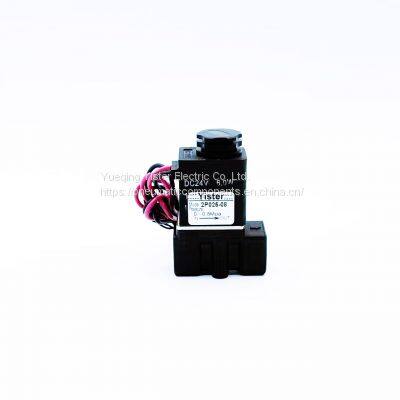

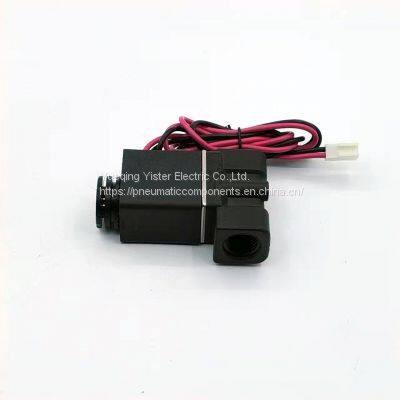

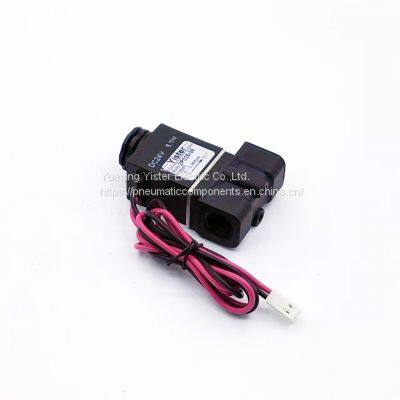

2/2 way miniature plastic pneumatic air solenoid valve 2P025-08
Order code for 2P025-08
2 Way Solenoid valves Symbol for 2P025-08
Technical parameter
Model |
2P025-06 |
2P025-08 |
Fluid |
Air. Water. Oil |
|
Acting |
Direct acting |
|
Original state |
Normally closed |
|
Initial state |
2.5 |
|
CV Value |
0.23 |
|
Port size |
G1/8'' |
G1/4'' |
Viscosity limit |
Under 20CST |
|
Pressure range |
0-0.7MPa(0~100psi) |
|
Proof pressure |
1.5MPa(215psi) |
|
Material of body |
Nylon 66 |
|
Seal material |
VITON |
|
Response speed |
||

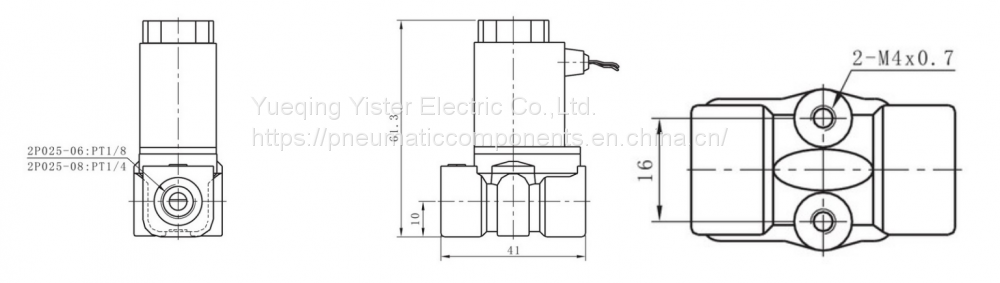

Dimension
Feature
. Direct acting type normally closed 2/2 way pneumatic air solenoid valve.
. 2P025-06/08 Can be used to control On/Off of air, inert gas, liquid, and water.
. This miniature solenoid valve has 1/8 inch,1/4 inch inlet and outlet port size
. The valve stays closed when the coil is de-energized, and it opens when energized.
. Compact size and light weight, easy to assemble and disassemble.
