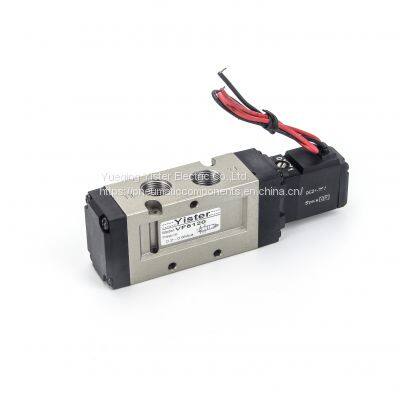

TPC standard double coil 5/3 solenoid valve DS5120/DS5220/DS5320/DS5420/DS5520

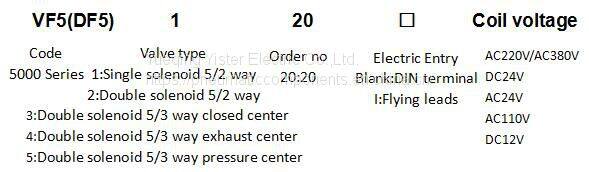

Order code

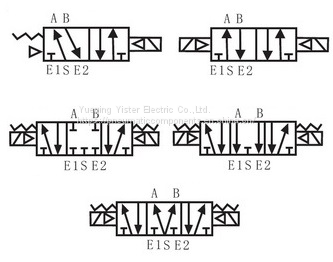

Symbol for DS5120 DS5220 DS5320 solenoid valve
Technical parameter
Model |
VF5120(DS5120) |
VF5220(DS5220) |
VF5320(DS5320) |
VF5420(DS5420) |
VF5520(DS5520) |
||
Fluid |
Air |
||||||
Acting |
Internal pilot solenoid vlave |
||||||
Valve type |
5/2 way |
5/3 way |
|||||
Orifice size |
16.0mm2 |
16.0mm2 |
12.0mm2 |
12.0mm2 |
12.0mm2 |
||
Lubrication |
No required |
||||||
Port size |
In=out=G3/8'' |
||||||
Protective class |
IP65 |
||||||
Pressure range |
0.15-0.8MPa |
||||||
Proof pressure |
1.2MPa |
||||||
Material of body |
Aluminum Alloy |
||||||
Temperature |
5℃~50℃ |
||||||
Response speed |
|||||||

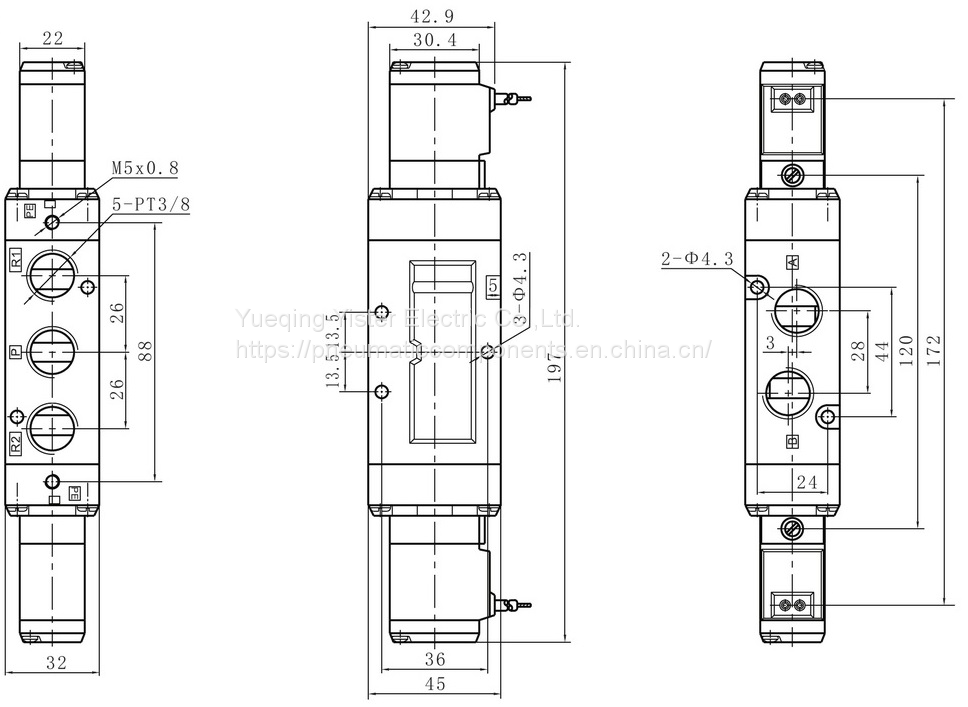

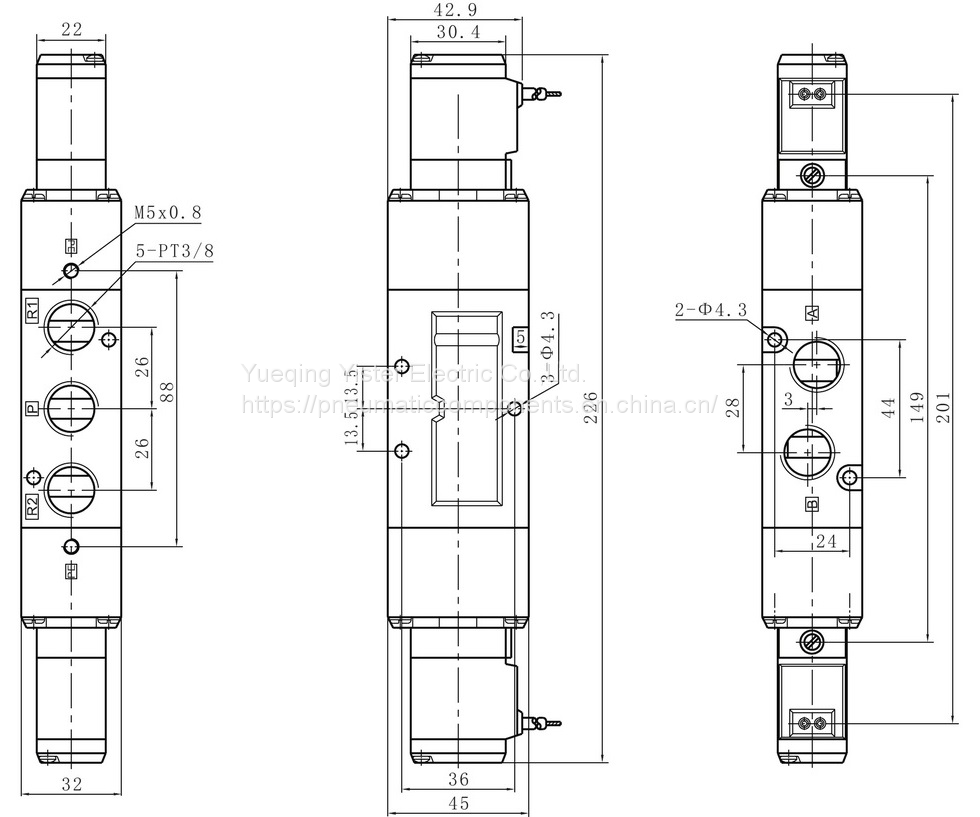

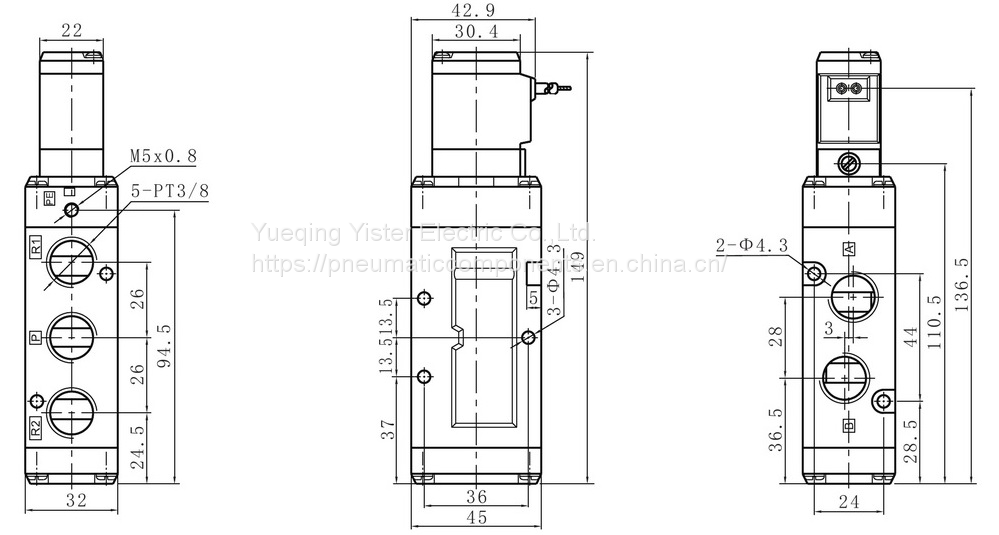

Dimension for standard DS5220 series Solenoid valve
FAQ
1. what is your products?
Yister Pneumatic produce Pneumatic solenoid valve, Mechanical valve, foot valve, Air control valve, hand valve, cylinder, PU Tube ,pneumatic fittings,etc.
2. how can we guarantee quality?
Warrenty is one-year. 100% Inspection before shipment;
3. DS5120 DS5220 DS5320 solenoid valve is TPC original brand ?
No,ours VF/DS3130/DS3230/DS3330/DS3430/DS3530 and VF/DS5120/DS5220/DS5320/DS5420/DS5520 three way solenoid valve is TPC replacement with same function
4.How can i contact you ?
Wa:+86-13868372447 ,send message:info(at)yister(dot)com(dot)cn
