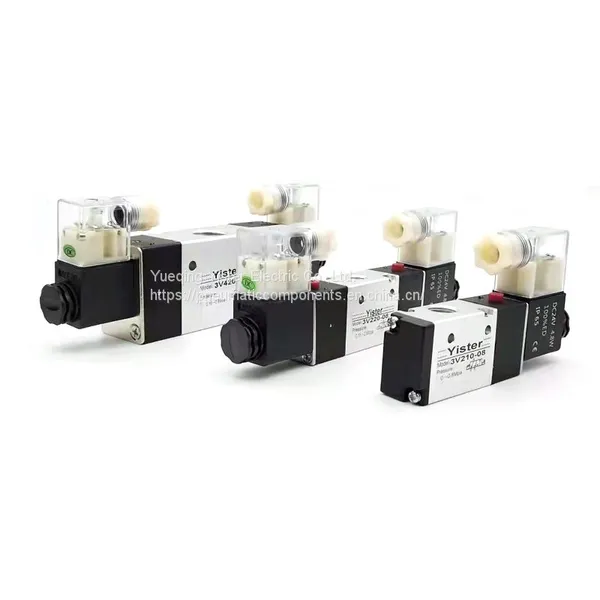

cheap mini double coil direct acting solenoid valve 3V120-06

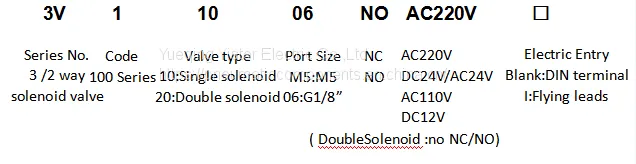

Order code
Symbol for direct acting solenoid valve
Technical parameter
Model |
3V110-M5 |
3V120-M5 |
3V110-06 |
3V120-06 |
Fluid |
Air |
|||
Acting |
Internal pilot or External pilot |
|||
Original state |
NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO |
|||
Lubrication |
No required |
|||
Orifice size |
5.5mm² |
12.0mm² |
||
Port size |
In=out=M5 |
In=out=G1/8'' |
||
Protective class |
IP65 |
|||
Pressure range |
0.15-0.8MPa(21~114psi) |
|||
Proof pressure |
1.2MPa(215psi) |
|||
Material of body |
Aluminum Alloy |
|||
Temperature |
-5℃~60℃ |
|||
Response speed |
||||

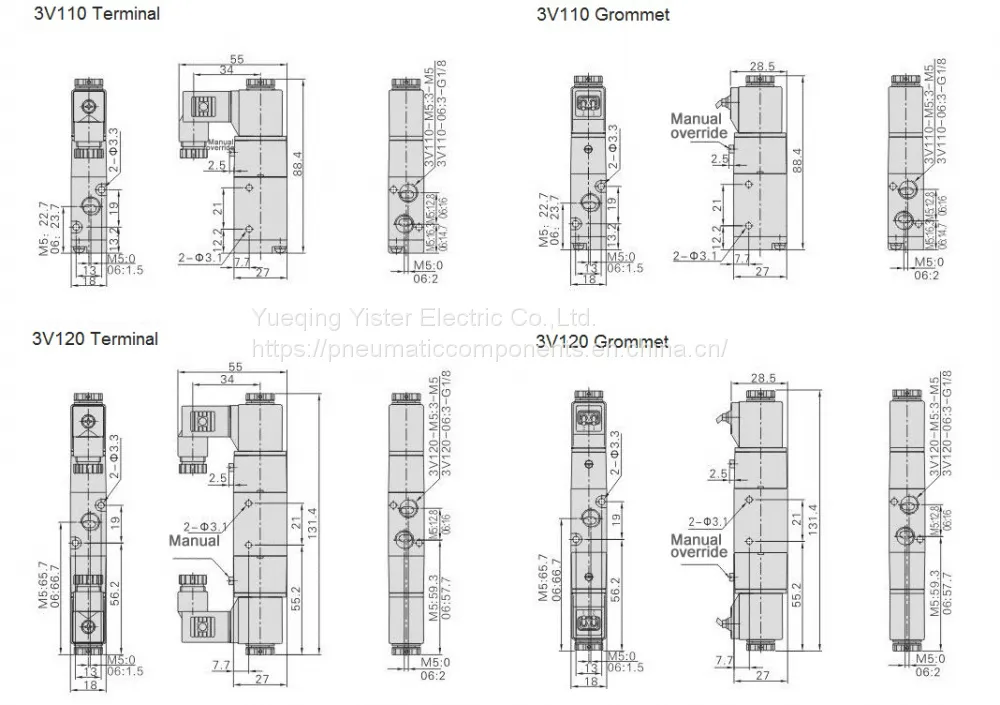

Dimension for double coil solenoid valve
Feature
3V110-M5 3V110-06 mini solenoid valve is applied widely to the pneumatic system and mechanism, such as textile industry, light industry and chemical industry, etc.
Can generally be used to drive the air flow direction of the double-acting mechanical cylinder
FAQ
1. what is your products?
Yister Pneumatic produce Pneumatic solenoid valve, Mechanical valve, foot valve, Air control valve, hand valve, cylinder, PU Tube ,pneumatic fittings,etc.
2. how can we guarantee quality?
Warrenty is one-year. 100% Inspection before shipment;
3.How could we contact you ?
Email:info(at)yister.com.cn,WA:+86-13868372447
