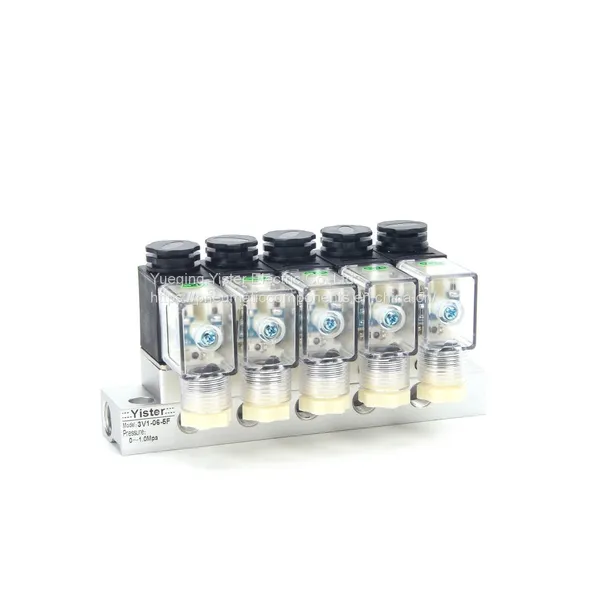

3/2 way direct acting multiple solenoid valve manifold

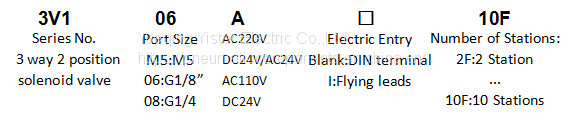

Order code for 3V1-M5
Solenoid valve Symbol for 3V1-06
Technical parameter
Model |
3V1-M5 |
3V1-06 |
3V1-08 |
Fluid |
Air |
||
Acting |
Direct acting |
||
Valve type |
3 way 2 position |
||
Lubrication |
No required |
||
Temperature |
-20℃~70℃ |
||
Port size |
M5 |
G1/8'' |
G1/4'' |
Viscosity limit |
Under 20CST |
||
Pressure range |
0-0.8MPa(0~100psi) |
||
Proof pressure |
1.5MPa(215psi) |
||
Orifice size |
Φ1mm |
||
Material of body |
Aluminum alloy |
||

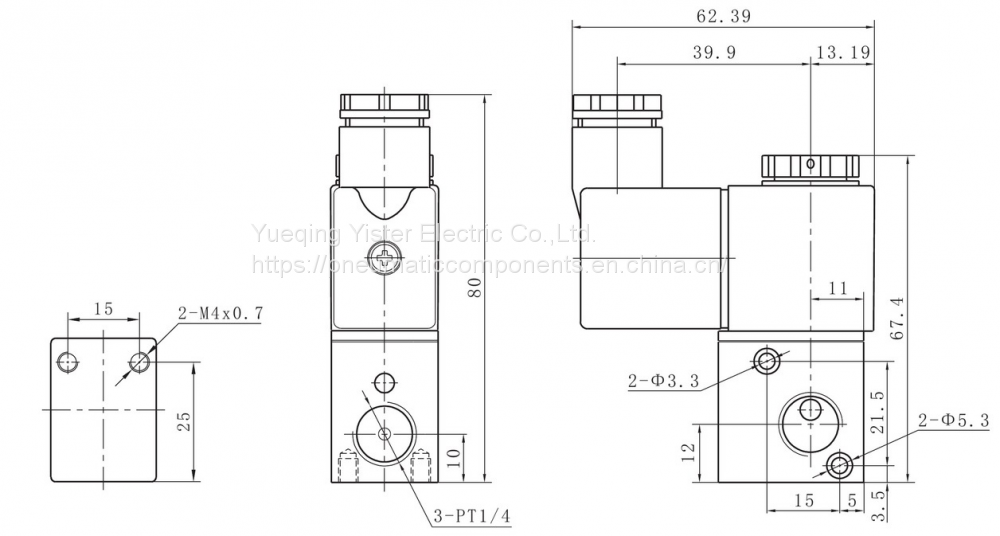

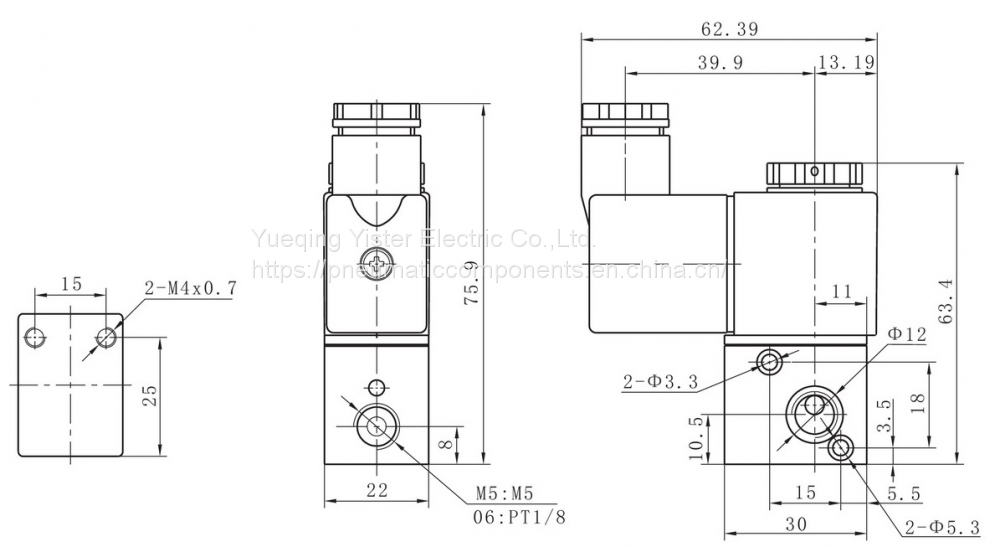

Dimension |
|||
Feature
.3V1-M5/06 mainfold multi solenoid air valve is made of high quality brass material, and durable in use
.This is direct acting type normally closed solenoid air valve, which is sensitive to change direction
.Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control
.The inner valve core and spring are made of stainless steel and will not rust, no need additional lubricate
.With solenoid operated for control appropriate flow and direction, provide great performance
