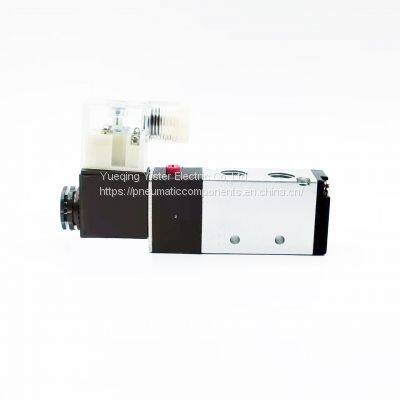

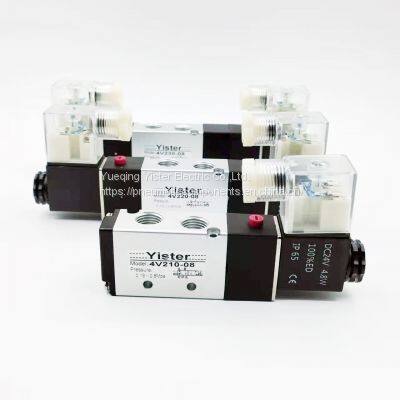

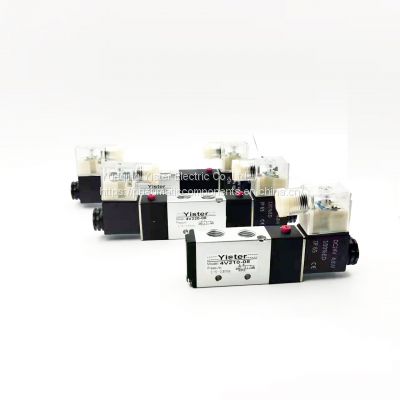

5 port 12v normally open electromagnetic solenoid valve 4V220-10

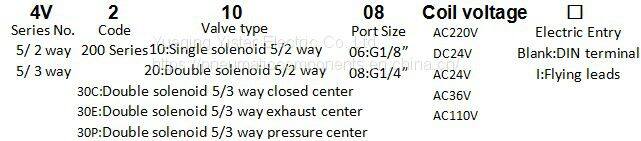

Order code

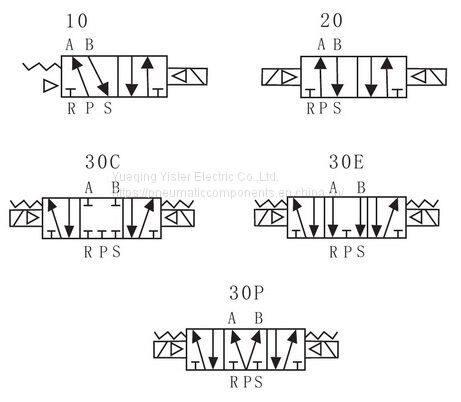

Symbol for 4V220 double control solenoid valves
Technical parameter
Model |
4V210-M5 |
4V220-M5 |
4V230C-M5 |
4V230E-M5 |
4V230P-M5 |
4V210-06 |
4V220-06 |
4V230C-06 |
4V230E-06 |
4V230P-06 |
|
Fluid |
Air |
||||||||||
Acting |
Internal pilot |
||||||||||
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
|||||||
Orifice size |
5.5mm2 |
5mm2 |
12mm2 |
9mm2 |
|||||||
Lubrication |
No required |
||||||||||
Port size |
In=out=M5 |
In=out=G1/8'' |
|||||||||
Protective class |
IP65 |
||||||||||
Pressure range |
0.15-0.8MPa(21~1145Psi) |
||||||||||
Proof pressure |
1.2MPa(170psi) |
||||||||||
Material of body |
Aluminum Alloy |
||||||||||
Temperature |
-5℃~60℃ |
||||||||||
Response speed |
|||||||||||

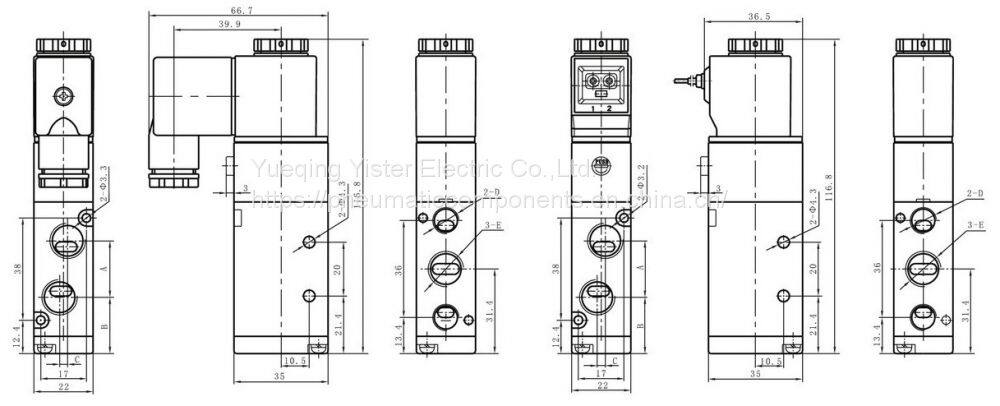

Dimension for 4V220-08 5/2 way Aluminum alloy Solenoid valve
Feature
* Airtac Type Air Pneumatic Control Solenoid valve 4V220-08
* Aluminum material Body width 18mm,22mm,27mm,34mm
* Pilot Operated,Inner Pilot type
* Life cycle 10000000 times
* Pipe joint and Namur joint type for option
* Din connector and outlead wire electricity connecting for selectable
* Metal Manual Override ensure stability when power failure or necessary functional motion
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
* Mature products,cost effectively
