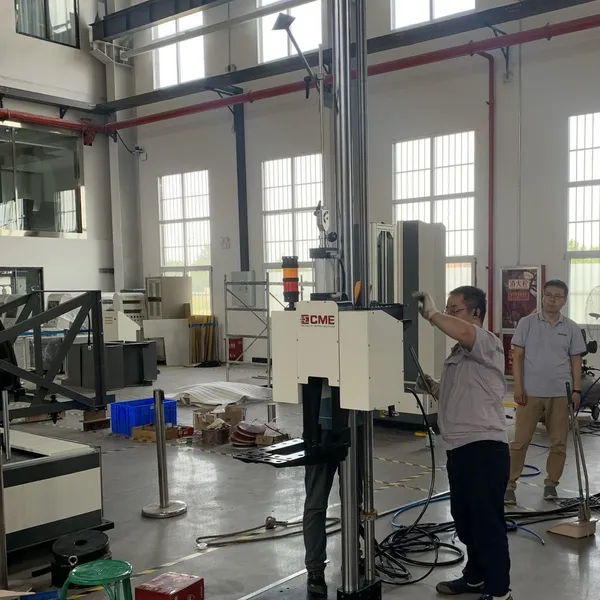

Help CenterKRD41-100 New Design Small Drop Teste for Free-fall Test
Related Products
-
KRD40 Zero-distance Drop Test SystemNegotiableMOQ: 1 Set -
KRD41 Small Drop Test SystemNegotiableMOQ: 1 Set
-
New Type Zero-distance Drop Test Machine /Large-scale Testing Equipment Lab Drop TesterNegotiableMOQ: 1 Set
-
Mobile Phone Free Fall Drop Test Machine Free Fall Drop Tester Vertical Drop Impact TestingNegotiableMOQ: 1 Set
-
KRD40 Zero-distance Drop Test SystemNegotiableMOQ: 1 Set
KRD41 series small drop tester is suitable for free-fall test of small consumer electronics and components such as mobile phones, walkie-talkies, electronic dictionaries, CD / MD / MP3 and so on，applicable standards JISC 0044 and IEC 60068-2-32. Through standard tests on electronic products (surface drop, corner drop, edge drop, etc.) and collecting data, it simulates the vertical drop impact of electronic products during transportation and handling. It provides a basis for the design of the product's buffer and vibration damping and the selection of structural materials.
It can be dropped naked or dropped with packaging to evaluate the impact resistance or the damage caused by the fall of the product during transportation. It is an indispensable test method to improve the product's quality. It is applicable for electronic product research, development, quality control, manufacturing and other links.
Features:
1. Upper and lower displacement limit to guarantee safe.
2. The lifting height can be adjusted arbitrarily to meet the different requirements.
3. It can clamp and drop the test sample at any angle
4. Just place the machine on a flat marble or concrete floor, no special foundation needed
5. Remote control can be realized to ensure the safety of operators. (custom function)
|
Model Parameters |
KRD41-100 |
KRD41-200 |
|
Max. Load (kg) |
100 |
200 |
|
Drop Height (mm) |
300～1500 |
|
Max. Specimen Size (mm) |
Depth 840 |
Depth 840 |
Position Accuracy |
±2% or ±10mm (subject to the larger value) |
|
|
Drop Zone Size （W*D/mm） |
1200×1200 |
1400×1400 |
Test Mode |
Face, Edge and Angle |
|
Power |
1-phase AC 220V±10% 50Hz |
|
|
Working Environment |
Temperature range 0～40℃, Humidity≤80% (non-condensing) |
|
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800~1000mm shall be reserved around the equipment |
|
Standards |
ISO2248-1985(E) IEC68-2-27 ISTA |
|
