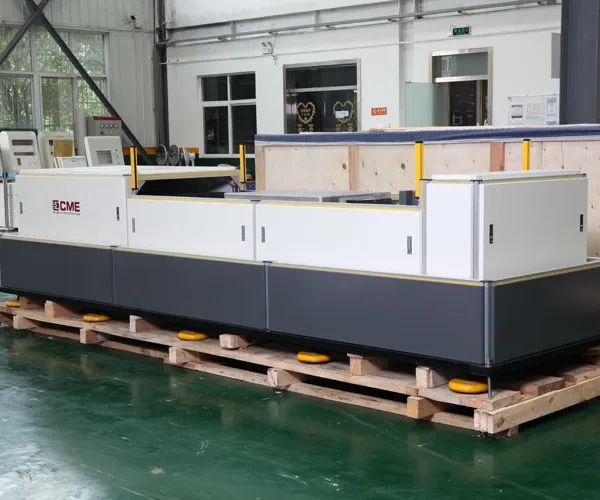

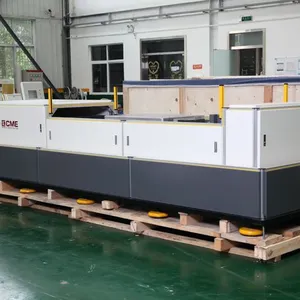

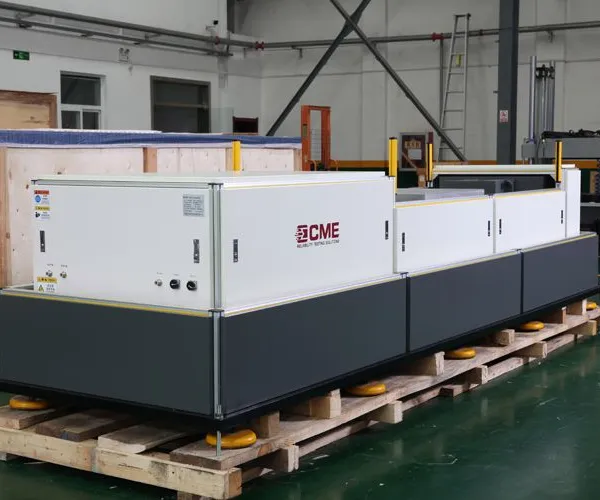

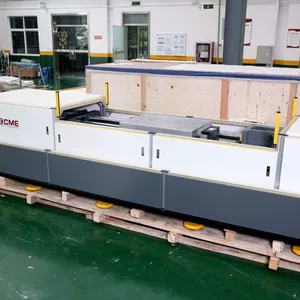

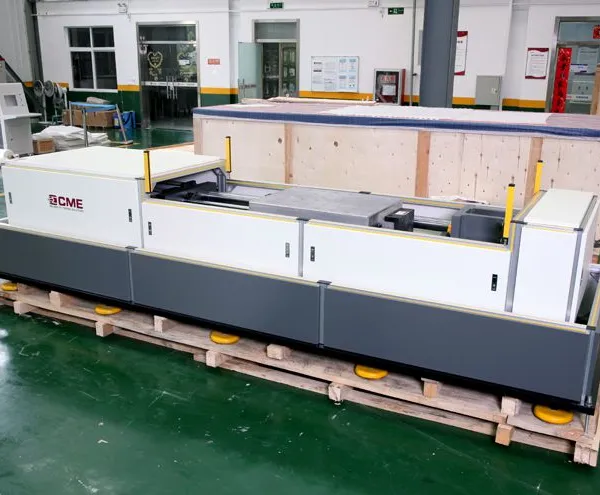

The KRD12 series shock test system is used to measure and determine the horizontal impact resistance of a product or package, and to evaluate the reliability and structural integrity of the test unit in a horizontal impact environment. The system can perform conventional half-sine wave, post-peak sawtooth wave, or trapezoid wave shock test to realize the shock energy that the product is subjected to in the actual environment, thereby improving the product or packaging structure.
This level of shock test system mainly adopts pneumatic precision control technology to realize computer automatic control. The medium of pneumatic transmission comes from the air, the environmental pollution is small, and the project is easy to realize, so its automatic servo control is an application technology to realize industrial automation.
l Windows-based stable control system, full-automatic remote-control interface
l Pneumatic cylinder driving with advantages of large driving force, short accelerating stroke, low cost and pollution free.
l Trapezoidal guide posts: large supporting force, good lubricity and full-automatic positioning table.
l Automatic control of shock speed: the shock overload value is achieved by adjusting the air pressure. After the cylinder pressure is set, system will automatically control the shock speed with high accuracy and good repeatability.
l Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter
l The most reliable double-brake system: effectively avoids secondary rebound collisions, more securely positioning the table, and more reliably guarantees the safety of the operator.
l Multiple waveforms: can perform conventional half-sine waves, post-peak sawtooth waves, or square waves.
l Easy installation: the device comes with a base, due to short driving stroke of the pneumatic cylinder, the footprint is small.
l Integrated control & measurement system: the system comes with a variety of waveform tolerance bands that comply with the MIL-810 standard, automatically generates test reports after the test is completed.
l System scalability: the system can be designed as a bidirectional shock according to user needs, saving test time more effectively.
Technical Specifications
|
Model Parameters |
KRD12-10 |
KRD12－50 |
KRD12－100 |
KRD12－200 |
KRD12－500 |
KRD12－1000 |
KRD12－2000 |
KRD12－3000 |
||||
Rated Load (kg) |
10 |
50 |
100 |
200 |
500 |
1000 |
2000 |
3000 |
||||
Table Size (mm) |
200×200 |
500×500 |
600×600 |
800×800 |
1000×1000 |
1200×1200 |
1500×1500 |
2000×2000 |
||||
|
Peak Acc. (g)
|
Half-Sine |
10-5000 |
10～1500 |
10～1000 |
10-800 |
10-600 |
10-500 |
10-200 |
||||
|
Post-Peak Sawtooth |
10～200 |
10~100 |
10~50 |
|||||||||
Trapezoid |
/ |
15～200 |
15～200 |
15-100 |
15-60 |
15-60 |
15-50 |
30-50 |
||||
Pulse Duration (ms) |
Half-Sine |
0.3~40 |
1~60 |
1.5～60 |
2～60 |
2.5～60 |
3～60 |
6～60 |
8～60 |
|||
|
Post-Peak Sawtooth |
3~18 |
6~18 |
||||||||||
Trapezoid |
/ |
3~18 |
6~18 |
|||||||||
|
Bump Waveform (Optional) |
Half sine Waveform |
|||||||||||
|
Bump Peak Acceleration （g） |
5-150 |
5-100 |
5-80 |
5-60 |
/ |
|||||||
Bump Pulse Duration (ms) |
2-30 |
3-30 |
4-30 |
/ |
||||||||
|
Bump Rate (Times/Min) |
10 ~ 120 |
10-80 |
10-60 |
10-40 |
/ |
|||||||
|
Overall Dimension (mm) |
2950×1240×1000 |
3300×1150×850 |
3500×1240×1100 |
3740×1440×1050 |
4250×1450 ×1100 |
4500×1650×850 |
5500×2000×850 |
6000×2200×850 |
||||
Weight (kg) |
3700 |
3600 |
4800 |
5856 |
6500 |
7000 |
8000 |
9000 |
||||
Working Environment |
Temperature range 0～40℃, Humidity ≤ 80% (non-condensing) |
|||||||||||
Power |
1-phase AC220V±10% 50Hz |
|||||||||||
Air source |
≤1MPa |
|||||||||||
Installation Condition |
Special foundation, foundation-free base is optional. The working distance of 800~1000mm shall be reserved around the equipment. |
|||||||||||
Standard |
MIL-STD-810 IEC68-2-27 MIL-STD-202 MIL-STD-750 MIL-STD-883 UN38.3 IEC62281 IEC62133-2 UL2054 IEEE1625 SAEJ2929 IEC62660-2 ISO12405-3 UL2580 |
|||||||||||
Note: 1. The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
2. Bump function is optional, Post-peak Sawtooth and Trapezoid waveforms are optional.
Standards
Transportation Safety Standards (UN 38.3 / IEC 62281)
Product Safety Standards (IEC 62133-2 / UL 2054 / UL 2580)
Electric Vehicle Traction Battery Standards (IEC 62660-2 / SAEJ2929 / ISO 12405-3)
Military/Environmental Test Standard (MIL-STD-810 Method 516.8 – Shock Test)
Basic Environmental Test Standard (IEC 60068-2-27 – Test Ea: Shock)
Battery System Design Standard (IEEE 1625)
Test Results

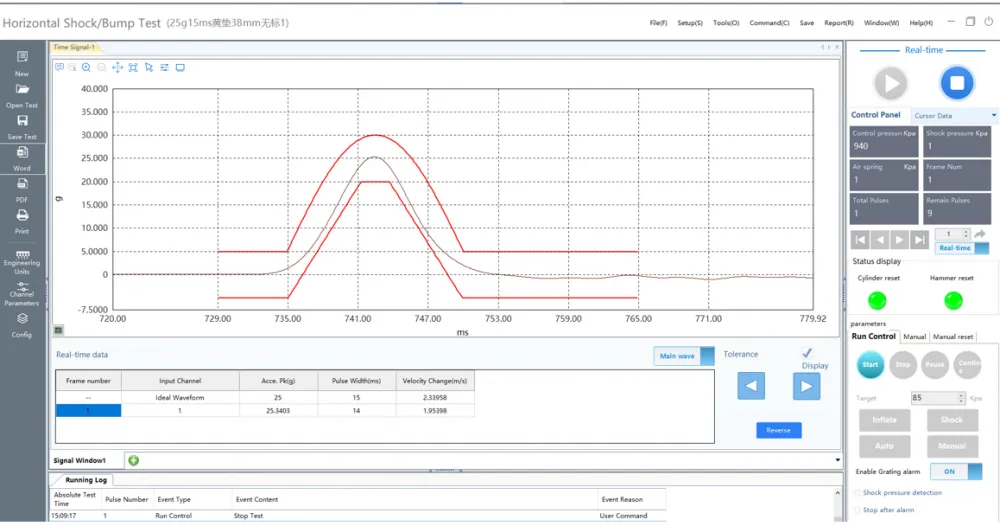

No-load shock, target peak acceleration: 25g, pulse width: 15ms

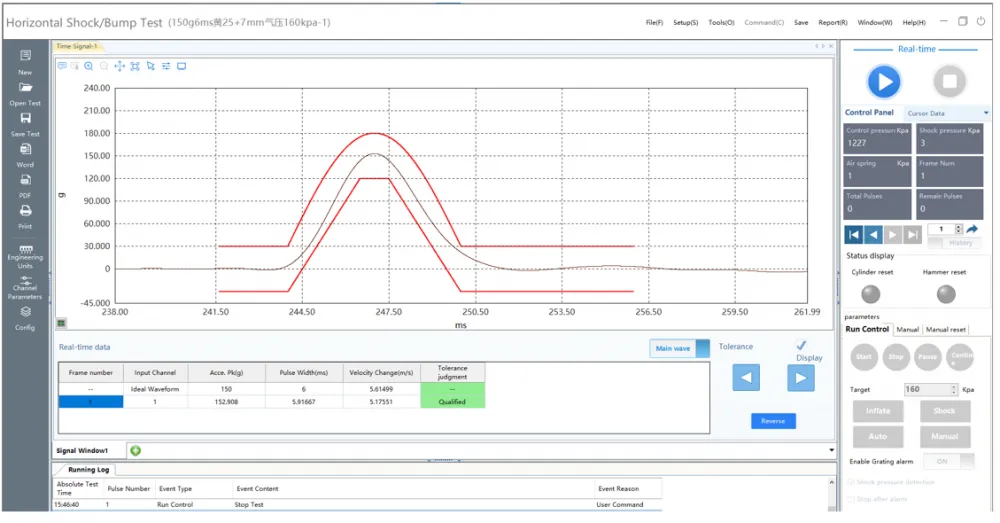

No-load shock, target peak acceleration:150g, pulse width: 6ms

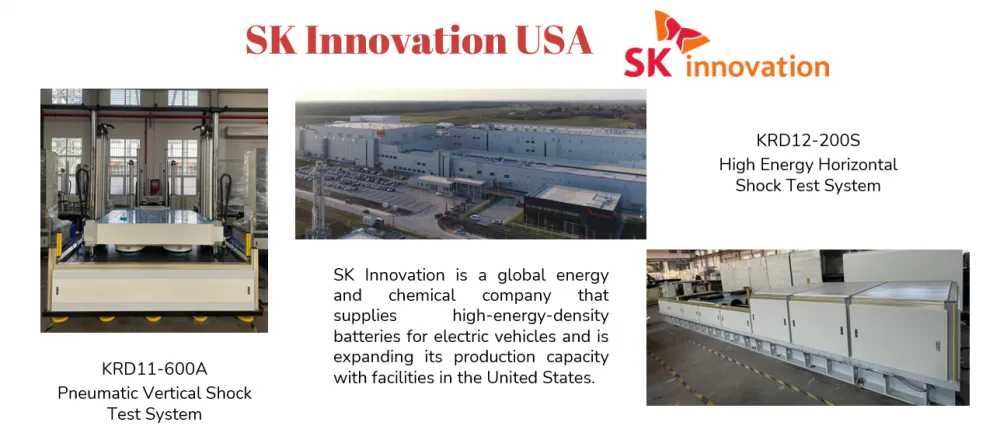

Project References
