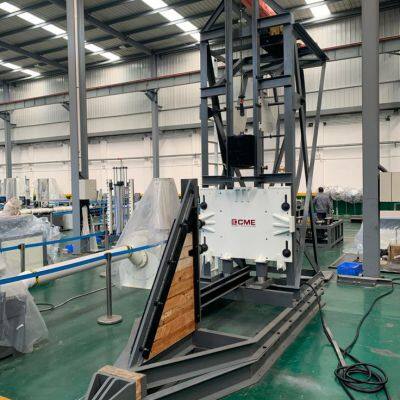

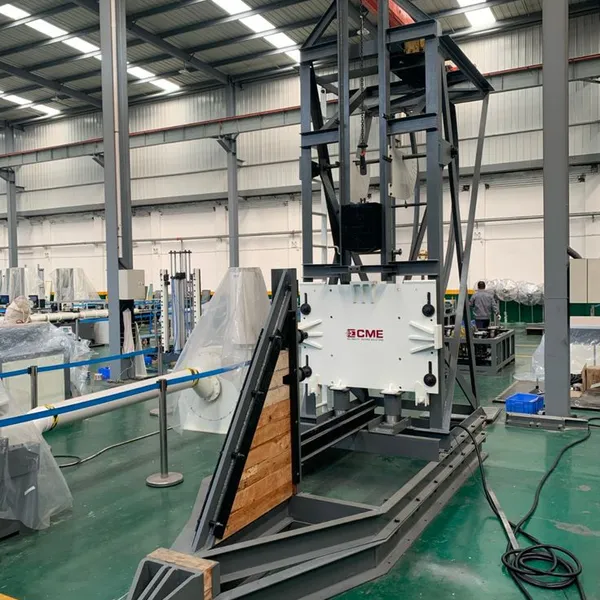

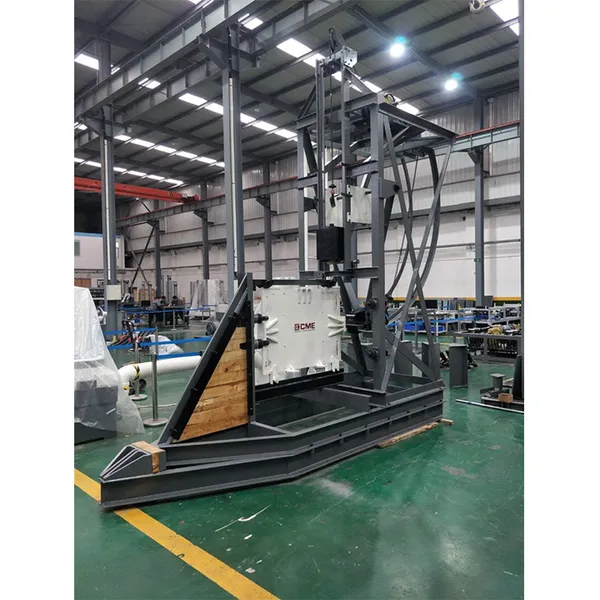

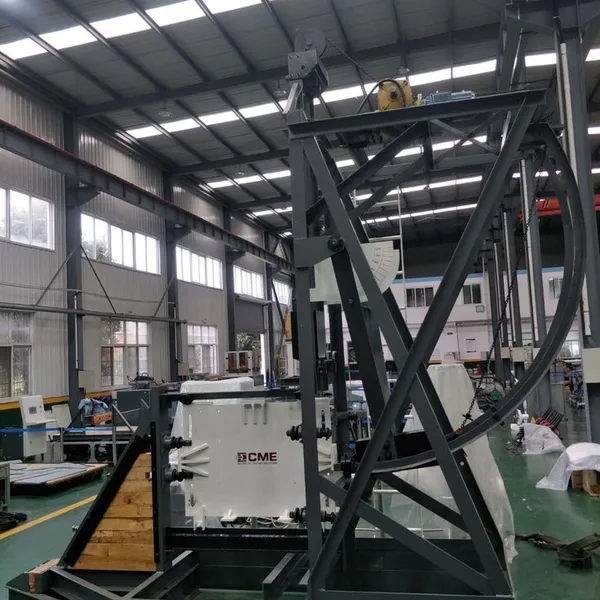

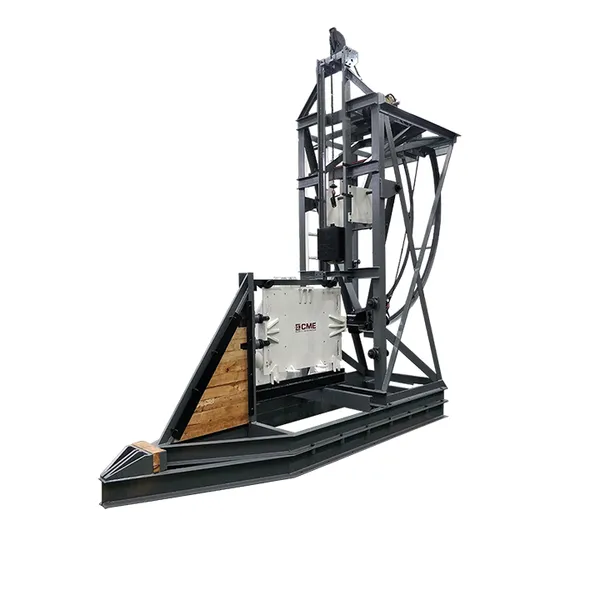

Help CenterKRD16 MIL-S-901D High Impact Shock Test System
Related Products
-
KRD12 Pneumatic Horizontal Shock Test SystemNegotiableMOQ: 1 Set -
Hot Selling Pneumatic Vertical Shock/Bump Test Equipment From ChinaNegotiableMOQ: 1 Set
-
Pneumatic Vertical Shock/Bump Test Machine for Product ReliabilityNegotiableMOQ: 1 Set
-
KRD11 Series Mechanical High Speed Shock Test Systems/Pneumatic Vertical Shock TesterNegotiableMOQ: 1 Set
-
Chinese Manufacturer Hot Sale KRD10 Series Hydraulic Vertical Shock Testing EquipmentNegotiableMOQ: 1 Set
High impact shock test system meets MIL-S-901D standard which covers shock testing requirements for ship board machinery, equipment, systems, and structures, excluding submarine pressure hull penetrations. The purpose of these requirements is to verify the ability of shipboard installations to withstand shock loadings which may be incurred during wartime service due to the effects of nuclear or conventional weapons.
Typical test items include marine machinery, electrical and electronic components, and structural parts—for example, diesel generators, electric motors, pumps, valves, piping, missile launchers, radar systems, cabinets, control consoles, and switchgear. The system can also evaluate the shock performance of shock absorbers and structural components, contributing significantly to enhancing the shock resistance of shipboard equipment.
CME provides lightweight & medium weight high impact shock test system in accordance with one of the following test categories, as specified.
Lightweight. The lightweight test is a test performed on the lightweight shock machine. Weight of the test item including fixture to attach it to the test machine shall be less than 550 pounds.
-
Medium weight. The medium weight test is a test performed on the medium weight shock machine. Weight of the test item including fixture to attach it to the test machine shall be less than 7,400 pounds.
Technical Specifications
|
Parameters |
KRD16-1 |
KRD16-2 |
Lightweight |
Medium weight |
|
|
(kg) |
200 |
3000（Including fixtures≤3400） |
|
Pendulum Mass (kg) |
182 |
1360 |
Shock Form |
Preset energy automatic completion |
|
|
Drop Hammer Height (mm) |
0-1500 |
0-1870 |
Work Table Size (mm) |
4A (Flat plate) 860×570 |
1520×1520 |
4C-Ⅰ (Angle plate) 670×300 | ||
4C-Ⅱ (Angle plate) 670×300 | ||
4C-Ⅲ (Angle plate) 670×550 | ||
Overall Dimension (mm) |
4800×1300×4500 |
3650×3300×3200 |
Weight (kg) |
3000 |
15000 |
Power |
3-phase AC380V±10％ 50Hz |
|
|
Working Environment |
Temperature range 0～40℃, Humidity ≤ 80% (non-condensing) |
|
Installation Site |
According to the foundation drawings provided by the manufacturer |
|
Standards |
MIL-S-901D |
|
Note: The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
Standards
MIL-S-901D – High Impact Shock Test
