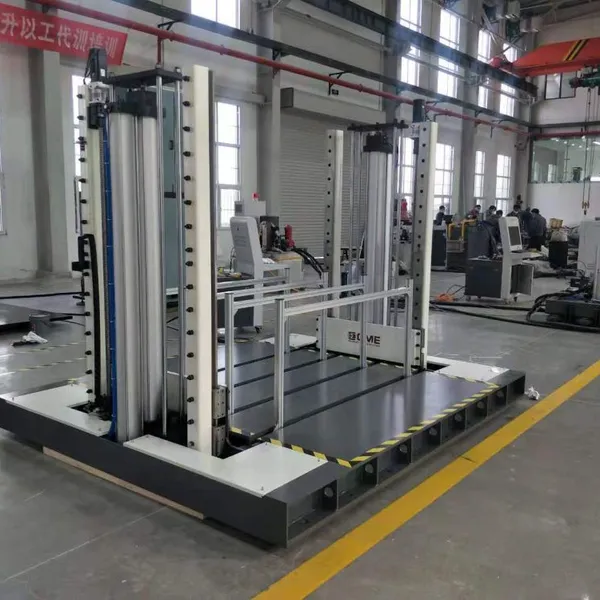

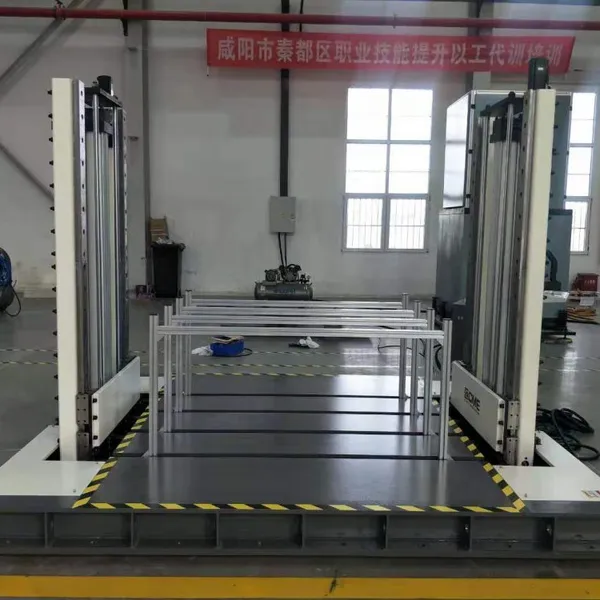

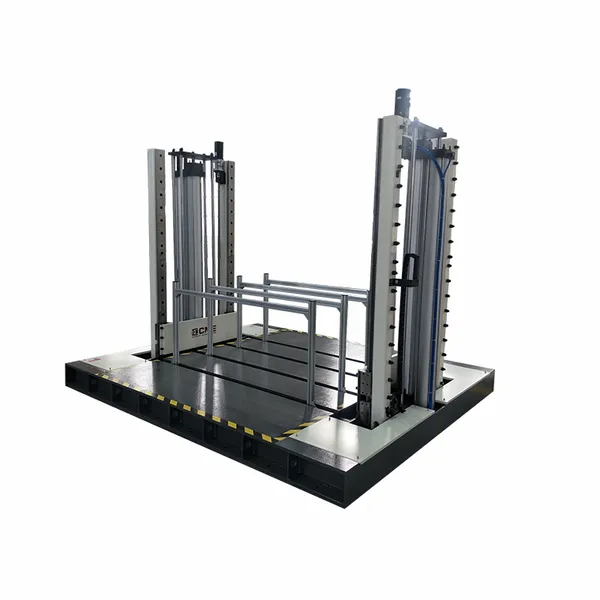

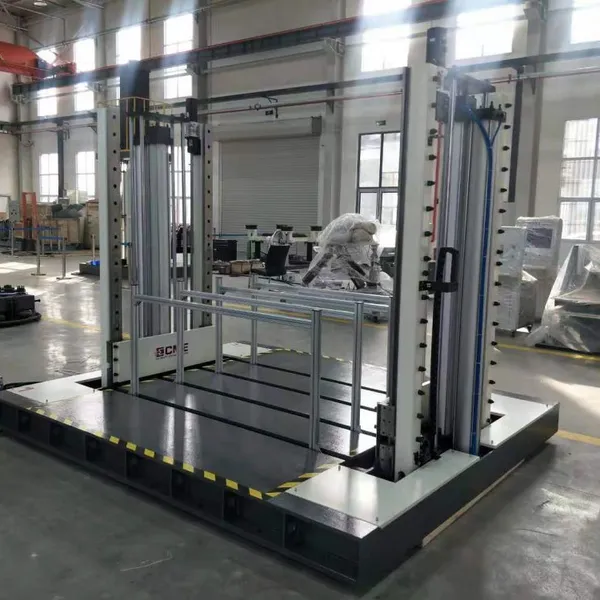

Help CenterKRD42 Double Lift Zero-distance Drop Test System
Related Products
-
KRD41 Small Drop Test SystemNegotiableMOQ: 1 Set -
KRD41-100 New Design Small Drop Teste for Free-fall TestNegotiableMOQ: 1 Set
-
KRD40 Zero-distance Drop Test SystemNegotiableMOQ: 1 Set
-
KRD41 Small Drop Test SystemNegotiableMOQ: 1 Set
-
New Type Zero-distance Drop Test Machine /Large-scale Testing Equipment Lab Drop TesterNegotiableMOQ: 1 Set
The KRD42 Series Double-Lift Zero Drop Tester is primarily suitable for large packaging goods that may be subjected to vertical drops during transportation and handling. Through standardized tests (face drop, corner drop, edge drop, etc.), data is collected to provide a design basis for cushioning and vibration reduction design, as well as for packaging material selection. With the rapid growth of global logistics and supply chains, large home appliances, electromechanical equipment, automotive components, and heavy industrial products are increasingly exposed to drop risks during transit. This tester accurately simulates accidental drops during handling and loading/unloading, helping manufacturers evaluate structural integrity and packaging protection under extreme conditions, ultimately reducing transportation damage rates. The system complies with ISO2248-1985, IEC68-2-32, ISTA Test Procedures 1A, 1B, 1C, 1D, 1G, 2A, 2B, 2C, 3A, 3B, 3E, 3F, 3H, 3K, 6-AMAZON.
l Driven by pneumatic and servo motors, stable lifting process with upper and lower displacement restrictions, safe and reliable;
l Adopt single-track or dual-track lifting method, and the height can be adjusted arbitrarily;
l It can clamp and drop the test specimen in different directions such as edges, faces and angles;
l The testing machine adopts PLC full-automatic control, large size true color touch LCD screen,
l Hand-held pad human-computer interaction software, easy to operate.
l The drop height is adjustable and the control is accurate up to 1mm
l No special foundation required, no other complicated operation or installation;
Technical Specifications
|
Model Parameters |
KRD42-500 |
KRD42-800 |
KRD42-1000 |
KRD42-2000 |
|
Max. Load (kg) |
500 |
800 |
1000 |
2000 |
|
Drop Height (mm) |
0～1200 |
0～1000 |
0～1000 |
0-800 |
Max. Specimen Size (mm) |
1400×1400×1400 |
1500×1500×1500 |
1600×1600×1600 |
1800×1800×1800 |
Position Accuracy |
±2% or ±10mm (subject to the larger value) |
|||
|
Drop Zone Size （W*D/mm） |
2400×1600 |
2600×1700 |
2800×1800 |
3200×2000 |
Test Mode |
Face, Edge and Angle |
|||
Power |
3-phase AC 380V ±10% 50Hz |
|||
|
Working Environment |
Temperature range 0～40℃, Humidity≤80% (non-condensing) |
|||
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800~1000mm shall be reserved around the equipment |
|||
Standards |
ISO2248-1985 IEC60028-2-27 ISTA |
|||
Note: The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
Standards
ISO 2248-1985 Packaging — Complete, filled transport packages — Vertical impact test by dropping
IEC 60068-2-32 Test Ed: Free Fall
ISTA Test Procedures: 1A, 1B, 1C, 1D, 1G, 2A, 2B, 2C, 3A, 3B, 3E, 3F, 3H, 3K, 6-AMAZON
