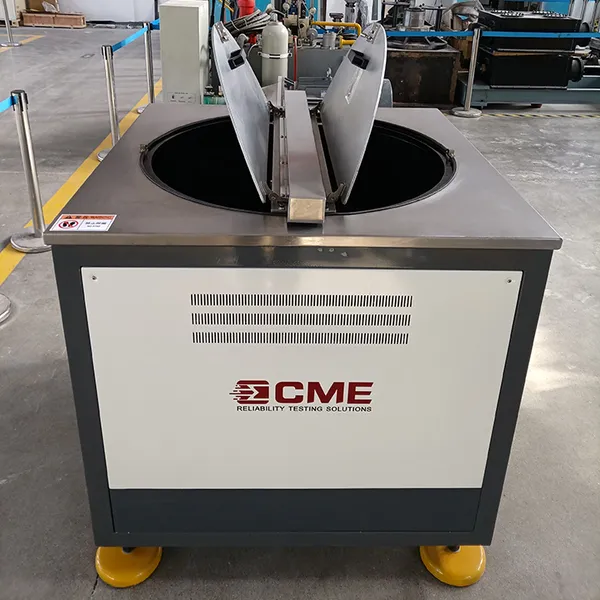

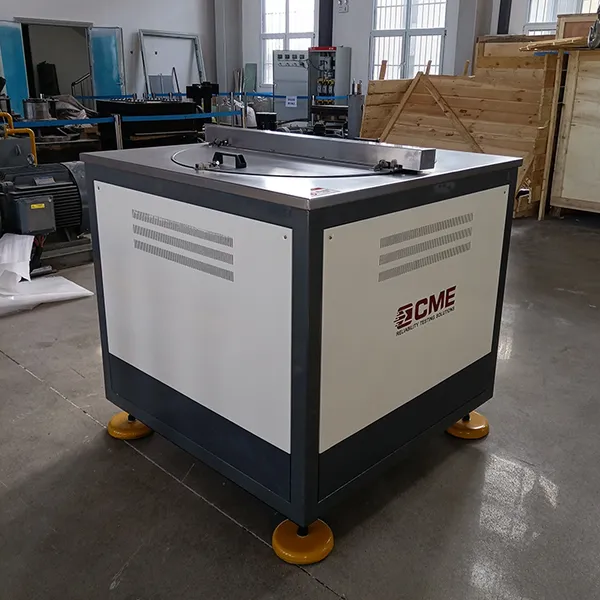

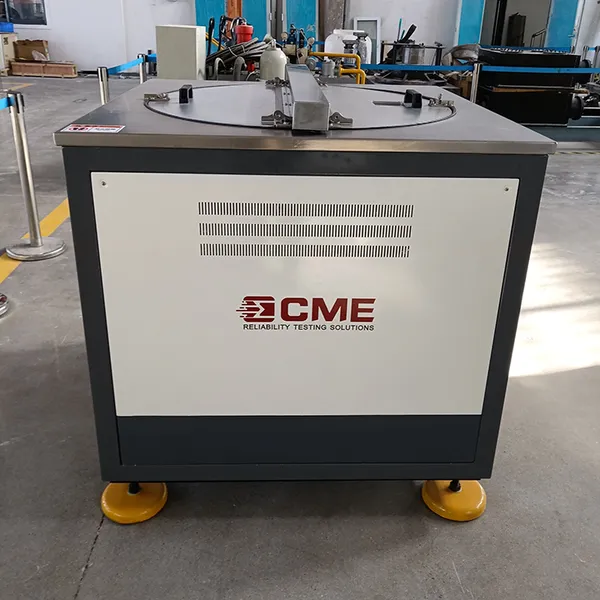

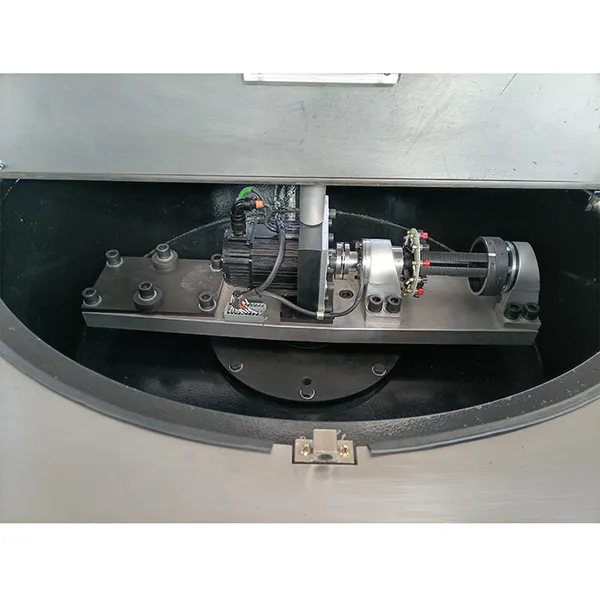

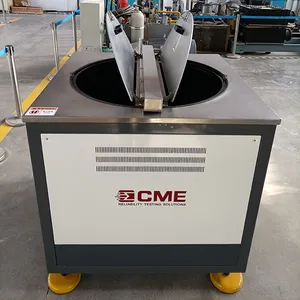

KRD32 series non-standard centrifugal constant acceleration testing machine is test equipment for military products to simulate dynamic centrifugal motion, dual-environmental force centrifugal motion and central high-speed rotating motion, so as to assess the anti-load performance of electronic components, small components and other electrical and electronic products and detect the anti-load performance specifications. It is mainly used for routine dynamic structural integrity and adaptability tests of components, small parts and small complete machine on aircraft.
l The acceleration rising rate is large.
l Computer centralized control and measurement.
l Fully digital network closed-loop remote control, high control accuracy
l Complete safety protection functions
Technical Specifications
|
Model Parameters |
KRD32－1 |
KRD32－2 |
KRD32－3 |
KRD32－4 |
KRD32－5 |
Dual-environment constant acceleration tester |
High-speed spin tester |
Centrifugal dynamic overload tester |
Spin shock compound tester |
Centrifugal vibration compound tester |
|
Max. Load (kg) |
5 |
5 |
50 |
3 |
1000 |
Max Acceleration (g) |
150 |
/ |
20 |
Shock 10000g--1ms |
50g |
Loading Rate (g/s) |
Customized |
/ |
10 |
/ |
Standard Electro-Dynamic Shakers specifications |
Installation Radius (mm) |
Customized |
/ |
1500 |
/ |
Customized |
|
Max. Rotating Speed (R/Min) |
0-3000 |
0-100000 |
/ |
0-10000 |
/ |
Collector Ring |
Optional according to user requirements |
||||
Control Method |
Fully closed-loop digital network (remote) automatic control + manual control |
||||
Power Supply |
3-phase AC 380V±10％ 50Hz |
||||
|
Working Environment |
Temperature range 0～40℃, Humidity≤80% (non-condensing) |
||||
Installation Condition |
Foundation-free, working distance of 800~1000mm shall be reserved around the equipment |
According to the foundation drawings provided by the manufacturer |
|||
Standards |
MIL-STD-810 IEC68-2-7 |
||||
