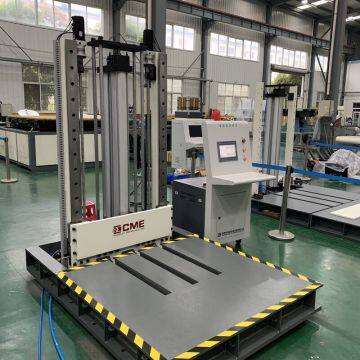

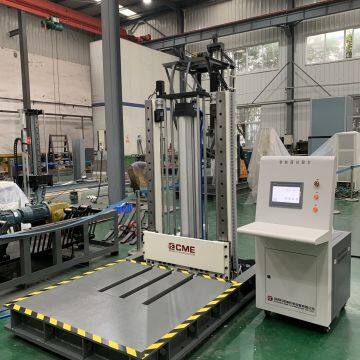

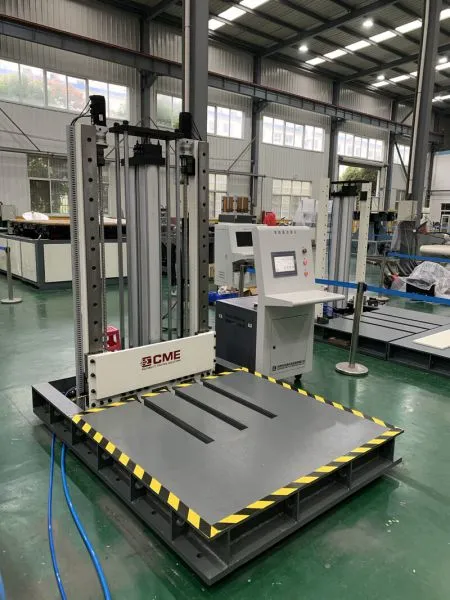

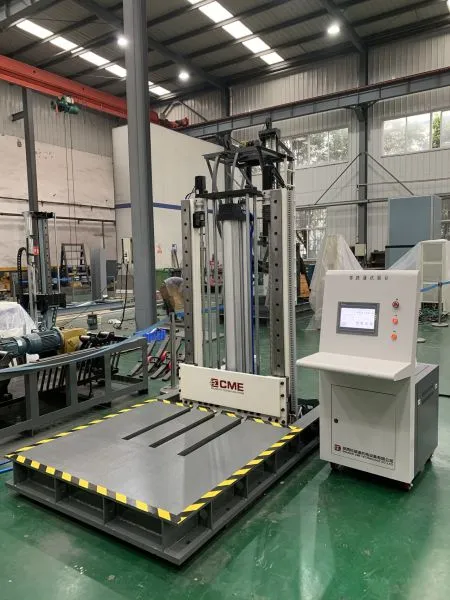

The KRD40 Series Drop Tester simulates the ability of large and heavy packaging to withstand drops and impacts during transport and handling. Featuring a powerful hydraulic power unit (HPU) and a unique sample clamp, it easily handles oversized and overweight specimens, automatically raises them to the preset height, and performs edge, surface, and corner drop tests. As logistics and supply chains rapidly evolve, large electromechanical equipment, home appliances, automotive components, and heavy industrial products face increasing drop risks during transit. This tester accurately simulates real-world accidental drops, helping manufacturers evaluate structural integrity and packaging protection under extreme conditions to improve design and reduce damage. The system complies with ISO2248-1985, IEC68-2-32, ISTA Test Procedures 1A, 1B, 1C, 1D, 1G, 2A, 2B, 2C, 3A, 3B, 3E, 3F, 3H, 3K, 6-AMAZON.
l Driven by pneumatic and servo motors, stable lifting process with upper and lower displacement restrictions, safe and reliable;
l Adopt single-track or dual-track lifting method, and the height can be adjusted arbitrarily;
l It can clamp and drop the test specimen in different directions such as edges, faces and angles;
l The testing machine adopts PLC full-automatic control, large size true color touch LCD screen,
l No special foundation required, no other complicated operation or installation;
l Remote control can be realized to ensure the safety of operators (customized functions).
Technical Specifications
|
Model Parameters |
KRD40-100 |
KRD40-200 |
KRD40-300 |
|
Max. Load (kg) |
100 |
200 |
300 |
|
Drop Height (mm) |
0～1500 |
||
Max. Specimen Size (mm) |
1000×1000×1000 |
1200×1200×1200 |
1300×1300×1300 |
±2% or ±10mm (subject to the larger value) |
|||
|
Drop Zone Size （W*D/mm） |
1200×1200 |
1400×1400 |
1500×1500 |
Test Mode |
Face, Edge and Angle |
||
Power |
1-phase AC 220V±10% 50Hz |
3-phase AC 380V ±10% 50Hz |
|
|
Working Environment |
Temperature range 0～40℃, Humidity≤80% (non-condensing) |
||
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800~1000mm shall be reserved around the equipment |
||
Standards |
ISO2248-1985 IEC60028-2-32 ISTA |
||
Note: The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
Standards
ISO 2248-1985 Packaging — Complete, filled transport packages — Vertical impact test by dropping
IEC 60068-2-32 Test Ed: Free Fall
ISTA Test Procedures: 1A, 1B, 1C, 1D, 1G, 2A, 2B, 2C, 3A, 3B, 3E, 3F, 3H, 3K, 6-AMAZON
