The KRD41 Series Small Drop Tester is primarily used for packaged goods that may be subjected to vertical drops during transportation and handling. Through standardized tests (face drop, edge drop, corner drop, etc.), data is collected to provide a design basis for cushioning and vibration reduction design, as well as for packaging material selection. The system complies with ISO2248-1985, IEC68-2-32, ISTA Test Procedures 1A, 1B, 1C, 1D, 1G, 2A, 2B, 2C, 3A, 3B, 3E, 3F, 3H, 3K, 6-AMAZON. Products can be tested either with or without packaging to evaluate impact resistance or drop damage during transportation. This is an indispensable testing method for improving product quality, applicable to electronic product research and development, quality control, manufacturing, and other stages.
Features:
Upper and lower displacement limit to guarantee safe.
The lifting height can be adjusted arbitrarily to meet the different requirements.
It can clamp and drop the test sample at any angle
Just place the machine on a flat marble or concrete floor, no special foundation needed
Hand-held pad human-computer interaction software, easy to operate
The drop height is adjustable and the control is accurate up to 2mm
No special foundation required, no other complicated operation or installation
Technical Specifications:
|
Model Parameters |
KRD41-100 |
KRD41-200 |
|
Max. Load (kg) |
100 |
200 |
|
Drop Height (mm) |
300～1500 |
|
Max. Specimen Size (mm) |
Depth 840 |
Depth 840 |
Position Accuracy |
±2% or ±10mm (subject to the larger value) |
|
|
Drop Zone Size （W*D/mm） |
1200×1200 |
1400×1400 |
Test Mode |
Face, Edge and Angle |
|
Power |
1-phase AC 220V±10% 50Hz |
|
|
Working Environment |
Temperature range 0～40℃, Humidity≤80% (non-condensing) |
|
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800~1000mm shall be reserved around the equipment |
|
Standards |
ISO2248-1985 IEC 60068-2-32 ISTA |
|
Note: The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
Standards
ISO 2248-1985 Packaging — Complete, filled transport packages — Vertical impact test by dropping
IEC 60068-2-32 Test Ed: Free Fall
ISTA Test Procedures: 1A, 1B, 1C, 1D, 1G, 2A, 2B, 2C, 3A, 3B, 3E, 3F, 3H, 3K, 6-AMAZON

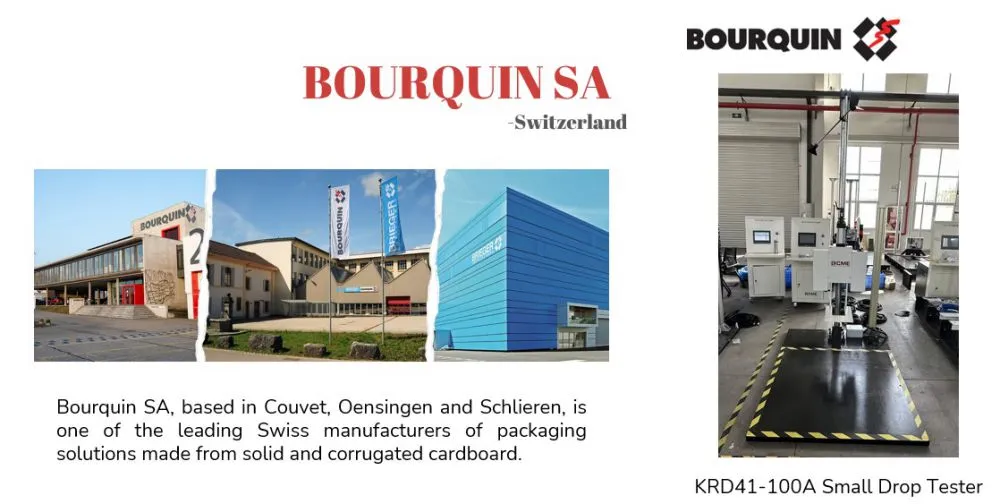

Projects References
