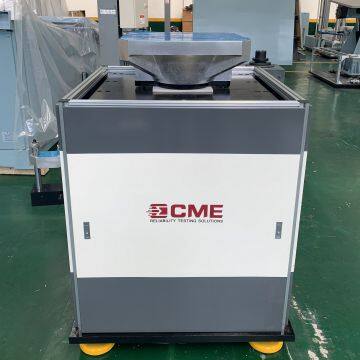

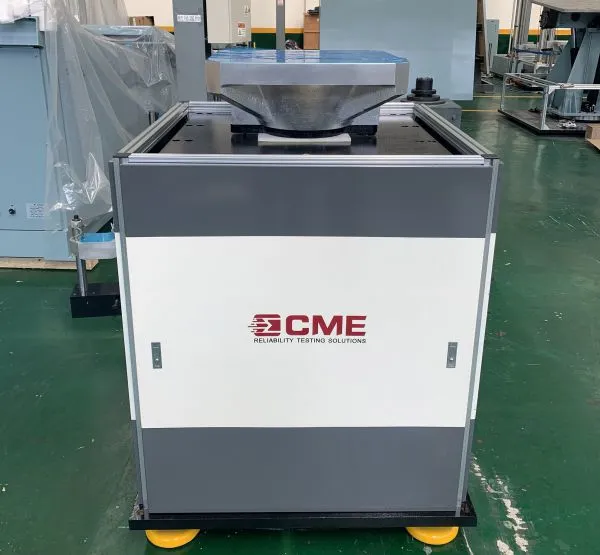

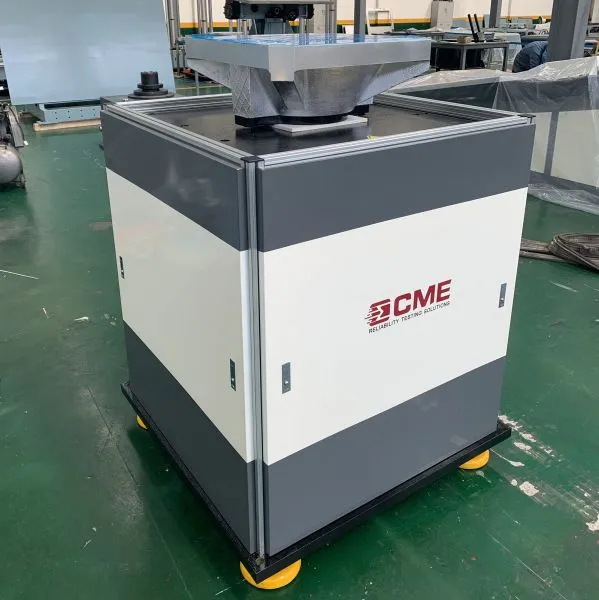

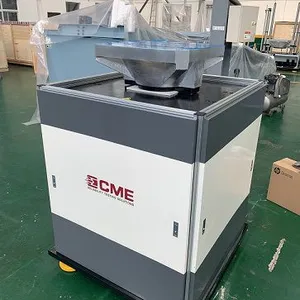

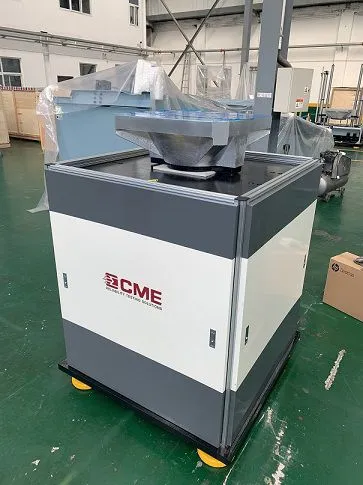

Help CenterKRD13 High Energy Shock Test Machine
Related Products
-
KRD16 MIL-S-901D High Impact Shock Test SystemNegotiableMOQ: 1 Set -
KRD12 Pneumatic Horizontal Shock Test SystemNegotiableMOQ: 1 Set
-
Hot Selling Pneumatic Vertical Shock/Bump Test Equipment From ChinaNegotiableMOQ: 1 Set
-
Pneumatic Vertical Shock/Bump Test Machine for Product ReliabilityNegotiableMOQ: 1 Set
-
KRD11 Series Mechanical High Speed Shock Test Systems/Pneumatic Vertical Shock TesterNegotiableMOQ: 1 Set
KRD13 series high energy shock test system is a vertical pneumatic drive shock test equipment with novel design, high degree of automation, simple operation and convenient maintenance. It is used to measure and determine the shock resistance of products or packaging, and assess the functional reliability and structural integrity of the test product in an impact environment.
And it is specially designed to meet the requirements of military and automotive testing. The system adopts the principle of pneumatic energy storage expansion. By adjusting the inflation pressure, various high-level acceleration tests can be easily implemented in a short stroke.
For the high-G classic shock test, it's equipped with the corresponding shock amplifier to complete high-peak shock test.
l Windows-based stable control system, full-automatic remote-control interface
l Pneumatic cylinder driving with advantages of large driving force, short accelerating stroke, low cost and pollution free.
l Automatic control of lifting height with high accuracy and good repeatability
l Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter
l The most reliable double-brake system: effectively avoids secondary rebound collisions, more securely positioning the table, and more reliably guarantees the safety of the operator.
l Easy installation: the device comes with a base, due to short driving stroke of the pneumatic cylinder, the footprint is small.
KRD13 is specialized for high-energy shock testing, KRD13 is capable of doing following test:
1. 60g～45ms
2. 24g～50ms
3. 90g～20ms
4. 150g~15ms
5. 70g～45ms
6. 300g～11ms
7. 200g～10ms
Technical Specifications
|
Parameters |
KRD13－50 |
KRD13－100 |
KRD13－200 |
KRD13－500 |
KRD13－800 |
KRD13－1000 |
KRD13-2000 |
|
Rated Load (kg) |
50 |
100 |
200 |
500 |
800 |
1000 |
2000 |
|
Table Size (mm) |
500×500 |
600×600 |
800×800 |
1000×1000 |
1200×1200 |
1500×1500 |
2000×2000 |
|
|
Peak Acc. (g)
|
Half-Sine |
10~1500 |
10~1000 |
10-1000 |
10-500 |
10-400 |
10-300 |
10-200 |
|
Post-Peak Sawtooth |
10~200 |
10~100 |
10-50 |
|||||
Trapezoid |
15-200 |
15-100 |
15-100 |
15-60 |
15-50 |
30-50 |
||
Pulse Duration (ms) |
Half-Sine |
2～60 |
3～60 |
3～60 |
4～60 |
5～60 |
6～60 |
8～60 |
|
Post-Peak Sawtooth |
3～18 |
6～18 |
||||||
Trapezoid |
3～18 |
6～18 |
||||||
|
Bump Waveform (Optional) |
Half Sine Waveform |
|||||||
Bump Peak Acceleration (g) |
5～100 |
5～80 |
5～60 |
5～40 |
/ |
|||
Bump Pulse Duration(ms) |
3～30 |
3～30 |
4～30 |
5～30 |
/ |
|||
|
Bump Rate (Times/Min) |
10~80 |
10~60 |
10-40 |
/ |
||||
|
Overall Dimension (mm) |
1200×1200×1500 |
1200×1200×1650 |
1100×1100×1700 |
1300×1300×1600 |
1500×1500×1700 |
1600×1600×1800 |
2000×2000×1900 |
|
Weight (kg) |
3000 |
3800 |
3200 |
4000 |
6000 |
8000 |
||
Environment |
Temperature range 0～40℃, Humidity ≤ 80% (non-condensing) |
|||||||
Power |
1-phase AC220V±10% 50Hz |
|||||||
Air source |
≤1MPa |
|||||||
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment |
|||||||
Standards |
IEC68-2-27 MIL-STD-202 MIL-STD-750 MIL-STD-810 MIL-STD-883 UN38.3 IEC62281 IEC62133-2 UL2054 IEEE1625 SAEJ2929 IEC62660-2 ISO12405-3 UL2580 |
|||||||
Note: 1. The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
2. Bump function is optional, Post-peak Sawtooth and Trapezoid waveforms are optional.
Standards
Transportation Safety Standards (UN 38.3 / IEC 62281)
Product Safety Standards (IEC 62133-2 / UL 2054 / UL 2580)
Electric Vehicle Traction Battery Standards (IEC 62660-2 / SAE J2929 / ISO 12405-3)
Military/Environmental Test Standard (MIL-STD-810 Method 516.8 – Shock Test)
Basic Environmental Test Standard (IEC 60068-2-27 – Test Ea: Shock)
Battery System Design Standard (IEEE 1625)
Test Results

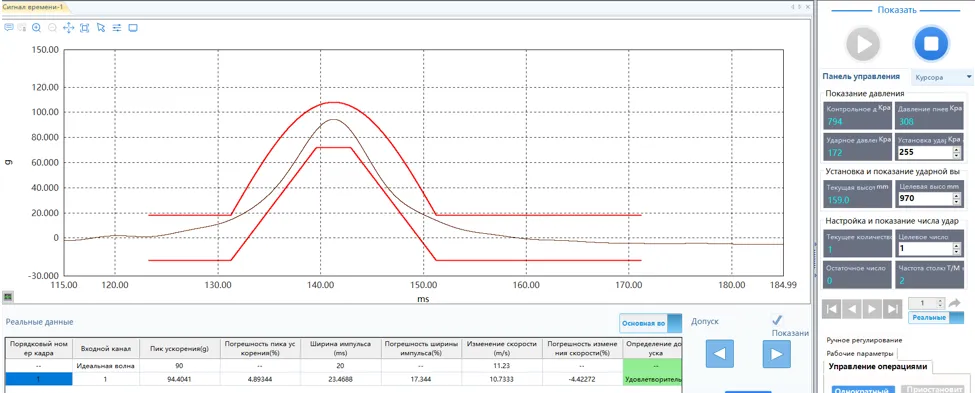

No-load shock, target peak acceleration: 90g, pulse width: 20ms

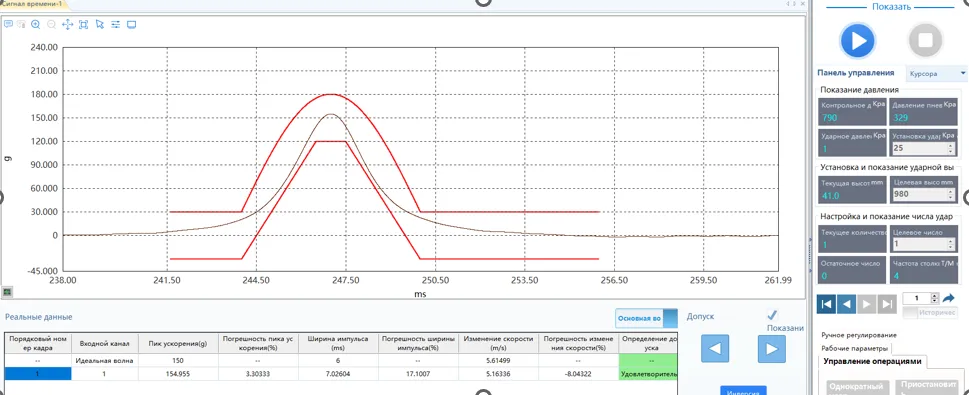

No-load shock, target peak acceleration: 150g, pulse width: 6ms
Project References
