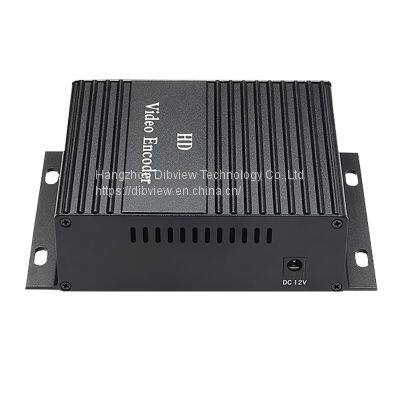

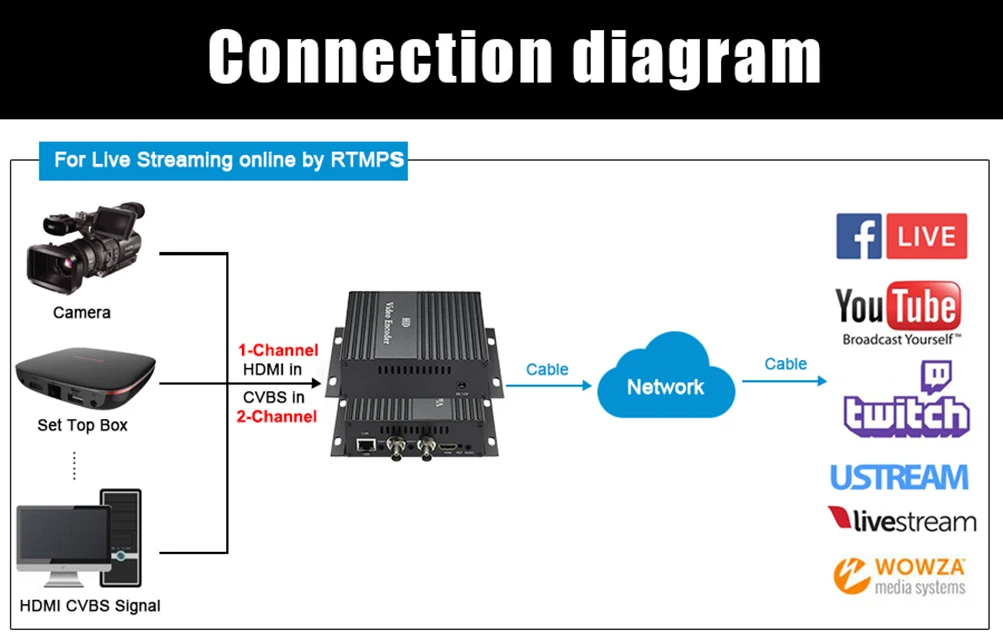

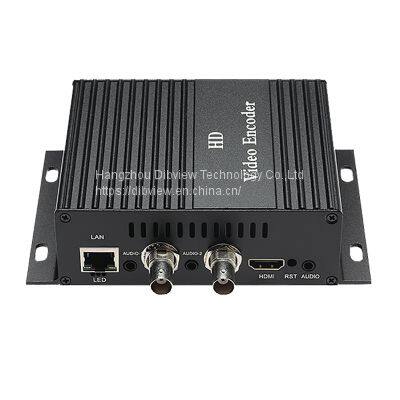

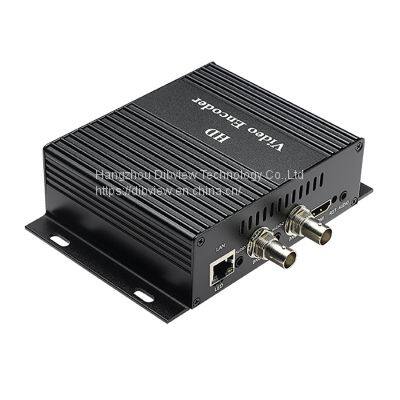

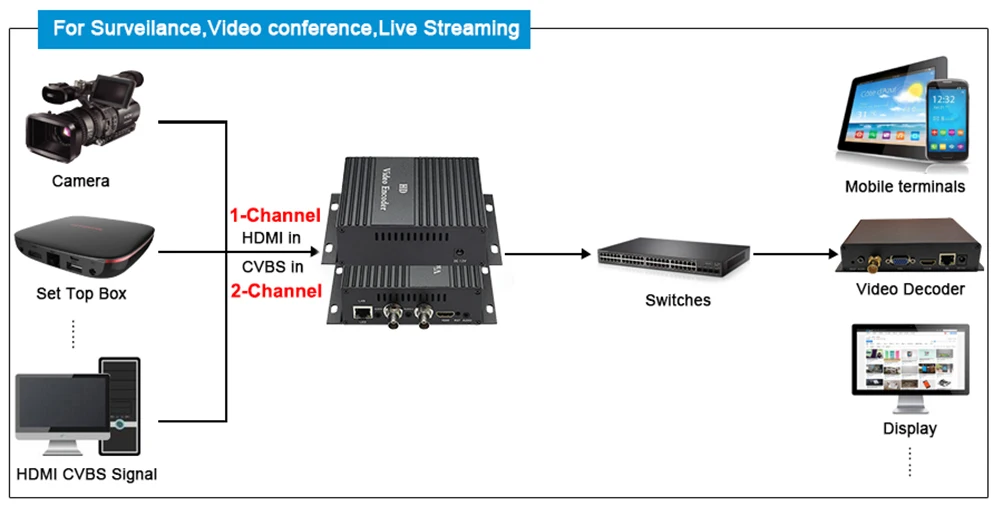

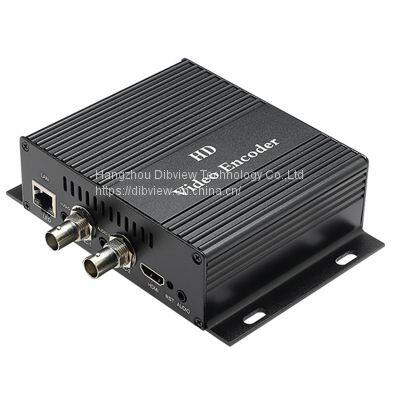

OTV-HCE3 IPTV Video Streaming Encoder accepts both HDMI-Compatible and 2*CVBS (AV) input working at the same time. Meanwhile, it outputs 12 channels stream by TS over IP transmission in H.264 Compression(Video), AAC, MP3 Compression(audio) with different resolution and protocols for delivering services to multiple Internet connected devices at the same time, including smart phones, tablets, different size TVs and other mobile device. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth.
OTV-HCE3 IPTV Video Streaming Encodercan be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.
Key Features:
Support1 channel HDMI-Compatible+2 channel CVBSinput working at the same time.
Support up to12 TS over IP stream out.
Support H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression
Bitrate mode: CBR/VBR
Capable of image parameter settings
Switchable of audio output mode: Left, right and Stereo
Configurable of Multi-rate, Multi-resolution, Multi-protocol
Providing SRT/RTSP/HTTP/UDP or RTMP protocol
Compatible with HDCP
Any terminal devices/decoders can have streams from IPTV Streaming Encoder
directly by RTMP protocol with software players (such as VLC).
Support ONVIF Network Video Protocol
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64,LINUX
Web-based management
Full-duplex mode 1000M
Technical Specifications:
Item |
Description |
Video Processing | |
|
Video compression: H.264/AVC High Profile Level 4.0 Video inputs: HDMI-Compatible (Compatiblewith HDCP),2*CVBS Analog video input mode: PAL, NTSC | |
Video resolution |
HDMI-Compatiblemain stream: 1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480, 720x404,704x576,640x480,640x360, auto HDMI-Compatiblesub-stream: 1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480, 640x300,352X288,320X240,320X180 auto CVBS main stream: NTSC max. supports 720*480 PAL max. supports 720*576 CVBS sub-stream: NTSC: 720*480 PAL: 720*576 Bit-rate: 16kbps~12Mbps, CBR/VBR Video pre-processing: Noise reduction, Sharpen, Filtering |
AudioProcessing | |
|
Audio in: 3.5mm Line in+HDMI-Compatible Embedded in Audio compression: AAC, MP3 Sampling rate:Adaptive, selectable of re-sample. Sampling accuracy: 24-bit Bit Rate: 48kbps,64kbps,96kbps,128kbps,160kbps,192kbps,256kbps Re-sample:32KHz,44.1KHz | |
IP Output | |
|
Transport protocol: TS over IP output, SRT/RTSP/HTTP/UDP or RTMP protocol ForHDMI-Compatibleto IP output, 4*TS over IP stream out (SRT/HTTP/RTSP/UDP or RTMPs protocol) 2 Channels with higher resolution (up to 1080P) for large screen application, 2 channels with lower resolution (up to 720P) for small screen application) For eachCVBS to IP output, 4*TS over IP streams output can be set with different resolution, bitrate, protocol. | |
Connector: RJ45, 1000M. | |
Management | |
|
Configuration Interface: Web-based Upgraded: via network Connector: RJ45, 1000M Ethernet interface. | |
The Working Environment | |
Dimension |
144mm(W)*98mm(D)*38mm(H) |
Gross Weight |
0.48KG |
Operating Temperature |
0 to 45(For working), -20 to 80(For storing) |
Input Voltage |
12V /DC |
Applications:
DTV & Professional Broadcasting Radio and Sports
Organizations, Conferences and Worship
Remote Video Conference, Internet TV
IPTV/OTT system, Live Events Streaming
Government, Education, Healthcare and Music
Digital Signage Project
Public Security Video Monitoring
