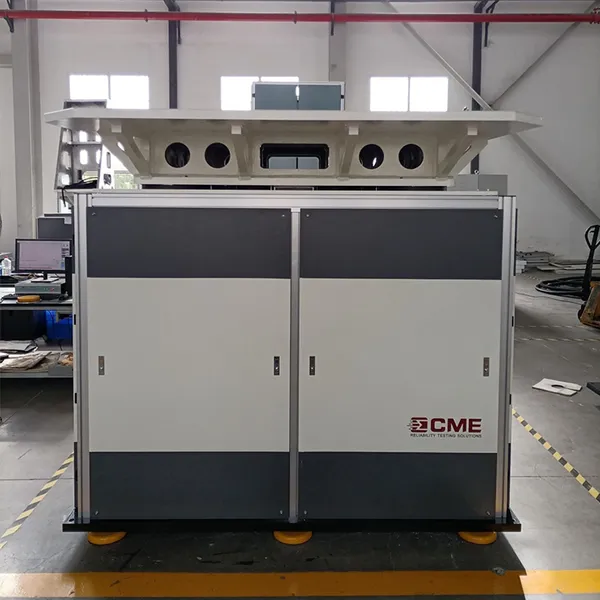

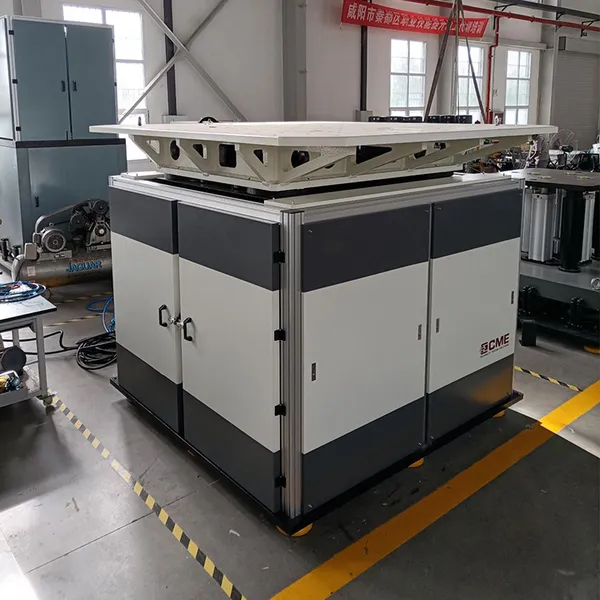

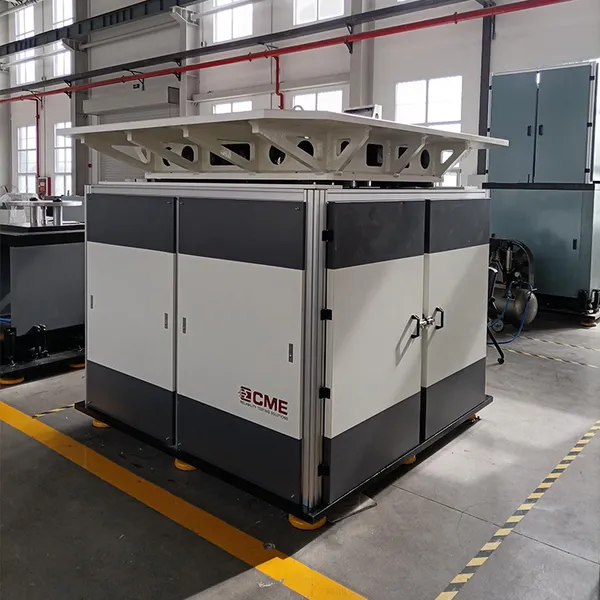

KRD17 is a fully automatic pneumatic lifting bidirectional vertical shock test system. It is vertical shock test equipment with novel design, high degree of automation, simple operation and convenient maintenance. It is used to measure and determine the impact resistance of products or packaging, and assess the functional reliability and structural integrity of the test product in a shock environment. The KRD17 series pneumatic bidirectional vertical shock test system can perform various conventional classic bidirectional shock tests to realize the shock wave and shock energy that the product suffers in the actual environment, so as to improve the system or optimize the structure of the product. KRD17 series pneumatic bidirectional vertical shock test system reduces the process of manual reversing of products in the vertical direction, saves time and further improves work efficiency. This equipment meets the requirements of MIL-STD-202, MIL-STD-750, MIL-STD-810, MIL-STD-883, IEC68-2-27 and other standards.
Pneumatic drive, no pollution to the environment
One machine with multiple functions, one clamping, to complete the upward and downward shock and bump tests, with high efficiency
Built-in pneumatic brake mechanism, safe and reliable
One-machine management for control and measurement, convenient operation
Air springs and dampers are used to reduce vibration, and the installation is free of foundation
Technical Specifications
|
Model Parameters |
KRD17－50 |
KRD17－100 |
KRD17－200 |
KRD17－500 |
KRD17－800 |
KRD17－1000 |
KRD17－2000 |
|
Rated Load (kg) |
50 |
100 |
200 |
500 |
800 |
1000 |
2000 |
|
Table Size (mm) |
500×500 |
600×600 |
800×800 |
1000×1000 |
1200×1200 |
1500×1500 |
2000×2000 |
|
Shock Direction |
Downward |
|||||||
|
Peak Acc. (g)
|
Half-Sine |
10-750 |
10-600 |
10-450 |
10-300 |
10-250 |
10-200 |
10-150 |
|
Post-Peak Sawtooth |
10-200 |
10-200 |
10-100 |
10-100 |
10-100 |
10-100 |
10-100 |
|
Trapezoid |
15-200 |
15-200 |
15-100 |
15-100 |
15-60 |
15-60 |
15-50 |
|
Pulse Duration (ms) |
Half-Sine |
1.5-60 |
2-60 |
2.5-60 |
4-60 |
4.5-60 |
5-60 |
6-60 |
|
Post-Peak Sawtooth |
3～18 |
6～18 |
||||||
Trapezoid |
3～18 |
3～18 |
6～18 |
|||||
Shock Direction |
Upward |
|||||||
Shock Wave |
Half Sine Waveform |
|||||||
Peak Acceleration (G) |
15-350 |
15-300 |
15-200 |
15-150 |
15-100 |
15-100 |
15-75 |
|
Pulse Duration (ms) |
3.5-60 |
3.5-60 |
4-60 |
4.5-40 |
5.5-60 |
5.5-60 |
6-60 |
|
Overall Dimension (mm) |
1250×1250×1600 |
1250×1250×1600 |
1300×1300×1700 |
1350×1350×1750 |
1550×1550×1750 |
1650×1650×1850 |
2000×2000×1900 |
|
Weight (kg) |
3000 |
3200 |
3400 |
5000 |
6000 |
|||
Power |
1-phase AC220V±10% 50Hz |
|||||||
Air Source |
≤1MPa |
|||||||
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment |
|||||||
Working Environment |
Temperature range 0 ~ 40℃, Humidity≤80% (non-condensing) |
|||||||
Standards |
IEC68-2-27 MIL-STD-202 MIL-STD-750 MIL-STD-810 MIL-STD-883 UN38.3 IEC62281 IEC62133-2 UL2054 IEEE1625 SAEJ2929 IEC62660-2 ISO12405-3 UL2580 |
|||||||
Note: 1. The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
2. Post-peak Sawtooth and Trapezoid waveforms are optional.
Standards
Transportation Safety Standards (UN 38.3 / IEC 62281)
Product Safety Standards (IEC 62133-2 / UL 2054 / UL 2580)
Electric Vehicle Traction Battery Standards (IEC 62660-2 / SAE J2929 / ISO 12405-3)
Military/Environmental Test Standard (MIL-STD-810 Method 516.8 – Shock Test)
-
Basic Environmental Test Standard (IEC 60068-2-27 – Test Ea: Shock)
