IEC61032 Test Probe C Used for IP3X Testing
US$ 90 - 400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PG-TPC
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
1 days
Related Products
-
IEC61032 Test Probe D Used for IP4X TestingUS$ 90 - 400MOQ: 1 Piece -
IEC61032 Figure 5 50mm Test SphereUS$ 60 - 200MOQ: 1 Piece
-
IEC61032 Figure 6 Test Probe 2 With 12.5mm SphereUS$ 150 - 400MOQ: 1 Piece
-
IEC61032 Figure 7 Rigid Finger Probe for Test Probe 11US$ 90 - 400MOQ: 1 Piece
-
IEC61032 Finger Test Probe Figure 8 Test Probe 12US$ 60 - 200MOQ: 1 Piece
Brand Name
Pego
Place of Origin
China
Model Number
PG-TPC
Power
Other, None
Usage
Universal Testing Machine
IEC61032 Test Probe C used for IP3X Testing
1. Introduction:
Designed according to IC61032 figure 3, meet the requirements of IEC60529-IP3, IEC60065，IEC60598 and etc. This rod is intended to verify the protection of persons against access to hazardous parts. It is used to verify protection against access with a tool.
2. Specification:
Length of test rod： |
100mm |
Diameter of test rod： |
2.5mm |
Dimater of stop sphere： |
35mm |
Diameter of handle: |
10mm |
Length of handle: |
100mm |
||
Material: Insulating material (handle, sphere), metal (test rod) | |||
Note:3N thruster for optional

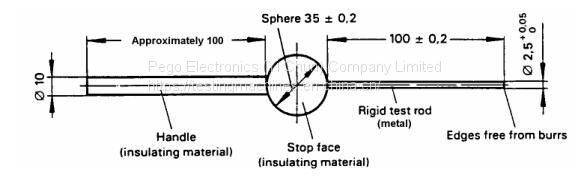

3. Picture:
