Home > Instruments & Meters > Test Instrument > Test Machine > IEC61032 Figure 12 Small Child Finger Probe Test Probe 18
IEC61032 Figure 12 Small Child Finger Probe Test Probe 18
US$ 60 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PG-TP18
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
1 days
Related Products
-
IEC61032 Figure 13 Children Finger Probe Test Probe 19 With 5.6mm FingerUS$ 60 - 400MOQ: 1 Piece -
IEC61032 Figure 14 Test Corn Probe 31US$ 60 - 400MOQ: 1 Piece
-
IEC61032 Figure 15 Test Probe 32 With 25mm RodUS$ 60 - 400MOQ: 1 Piece
-
IEC61032 Figure 16 Test Probe 41 With 30mm ProbeUS$ 60 - 400MOQ: 1 Piece
-
IEC61032 Figure 17 Test Probe 43 With Calibrated Certificate Authorized by ISO17025 LabUS$ 60 - 400MOQ: 1 Piece
Brand Name
Pego
Place of Origin
China
Model Number
PG-TP18
Power
Other, None
Usage
Universal Testing Machine
IEC61032 Figure 12 Small Child Finger Probe Test Probe 18
1. Introduction：
It is designed according to IEC61032 figure 12, this probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.
2. Specification:
Diameter of probe |
8.6mm |
Semi-diameter probe |
4.3mm |
Length probe |
57.9mm |
Diameter of first handle |
38.4mm |
Length of first handle |
101.6mm |
Diameter of second handle |
38.1mm |
Length of second handle |
451.6mm |
Material |
insulating material (handle), metal (probe) |

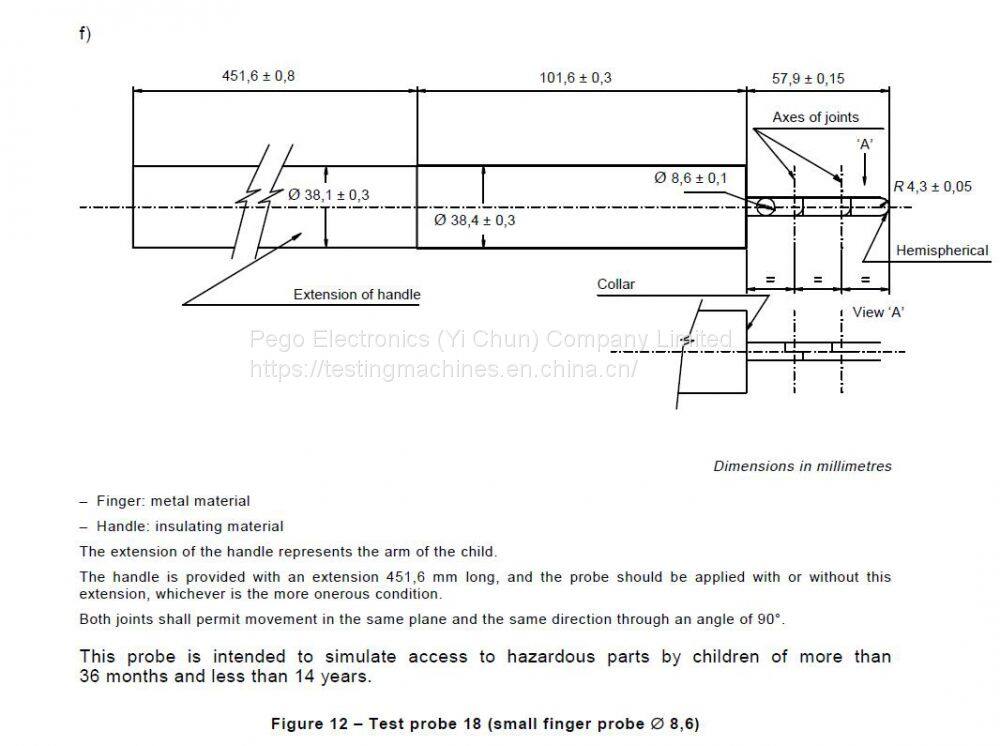

3. Picture:
