Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | AAC Wasp Conductor | Type | High Voltage | |
| Application | Overhead | |||
| Conductor Material | Aluminum |
Product Description
BS215 All Aluminium Stranded Conductor 100mm2 AAC Wasp Conductor

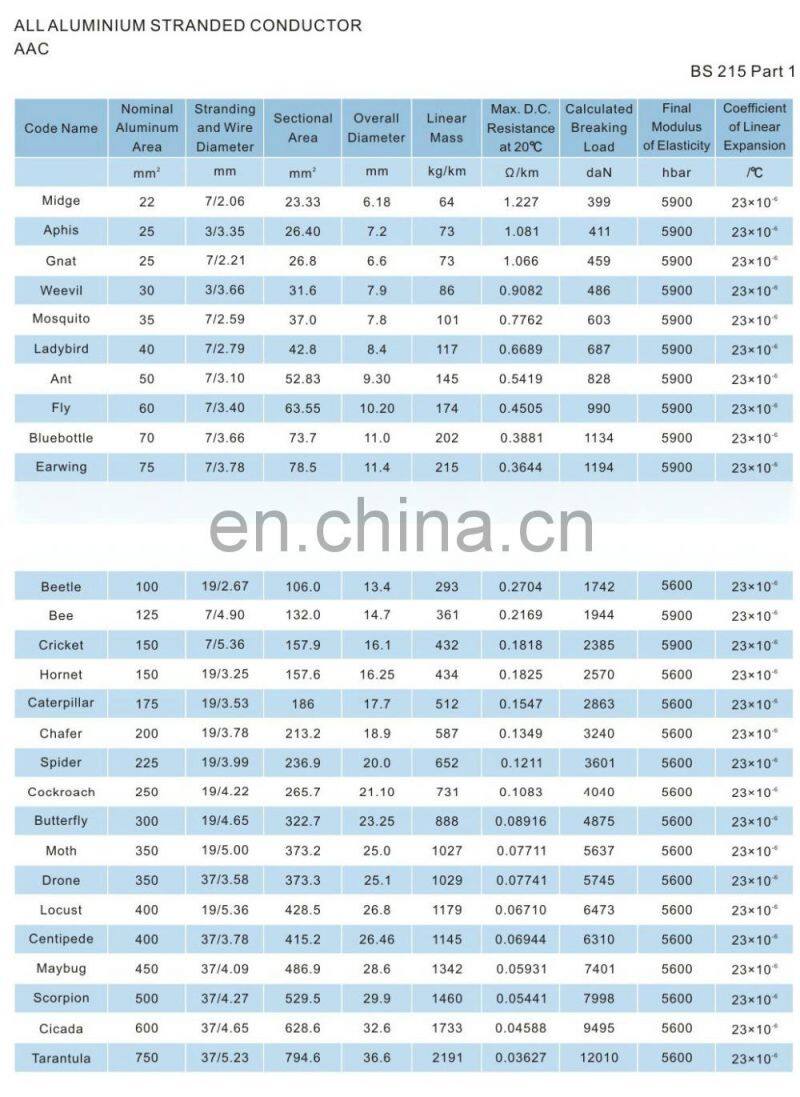

1. Specification of Wasp
Code name: Wasp 100mm2
Standard: BS215 part1

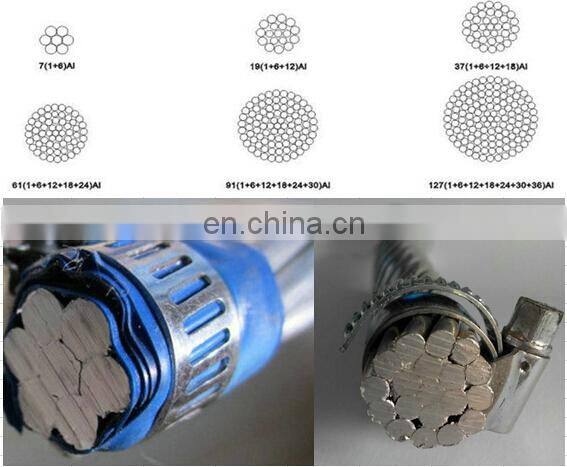

No.of strand/wire diameter: 7/4.39mm
Overall diameter: 13.17mm
Linear mass: 290kg/km
Nominal breaking load: 16kN
Max.D.C.Resistance at 20°c: 0.2702Ω/km
2. AAC conductors
AAC is also known as aluminium stranded conductor.These cables can also be recognised by their full names of all aluminum conductors(AAC).
3. Application

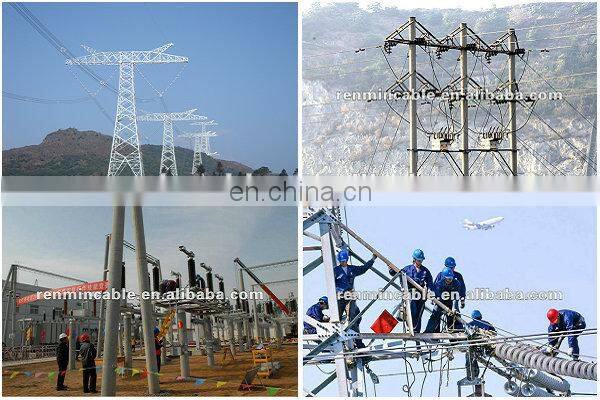

Aluminium Conductors are predominantly used in Overhead Line applications and for primary and secondary power distribution.
AAC conductors is used mainly in urban areas where the spacing is short and the supports are closer together.
The advantage of AAC conductors is that they have a high degree of corrosion resistance;for this reason they are used extensively in coastal areas.
AAC were developed as a consequence of the galvanic corrosion that ACSR conductors are susceptible to.
4. Applicable Standard
ASTMB231
BS215 Part1
DIN48201
IEC61089
