All Types Of bare Conductor cable Aluminium Conductor ACSR Conductor
- 1000000 Kilometer / Kilometers per Month
- shanghai qingdao
- T/T Credit Card
You May Like
-
Best Price ASTM 477 mcm ACSR Conductor IEC 50mm2 Aluminum bare conductor From China
-
ACSR Manufacturers Aluminium Cable Transmission Line ACSR Conductor Wire
-
3364 mcm 15kv 100mm 2/0 acsr wire aluminum conductor
-
ASTM B232 Standard Overhead Transmission Line 795 mcm ACSR Bare Aluminium AAAC Conductor
-
ACSR Tern/Condor/Cuckoo/Drake/Coot/Mallard 795 AWG/MCM ACSR Conductor
-
Chinese hot sale bare conductor ACSR cable 954 MCM ACSR RAIL CONDUCTOR
Product Details
Brand Name | RMJT | Place of Origin | Henan, China | |
Model Number | HDA Conductor | |||
Application | Overhead | |||
Conductor Material | Aluminum |
Product Description

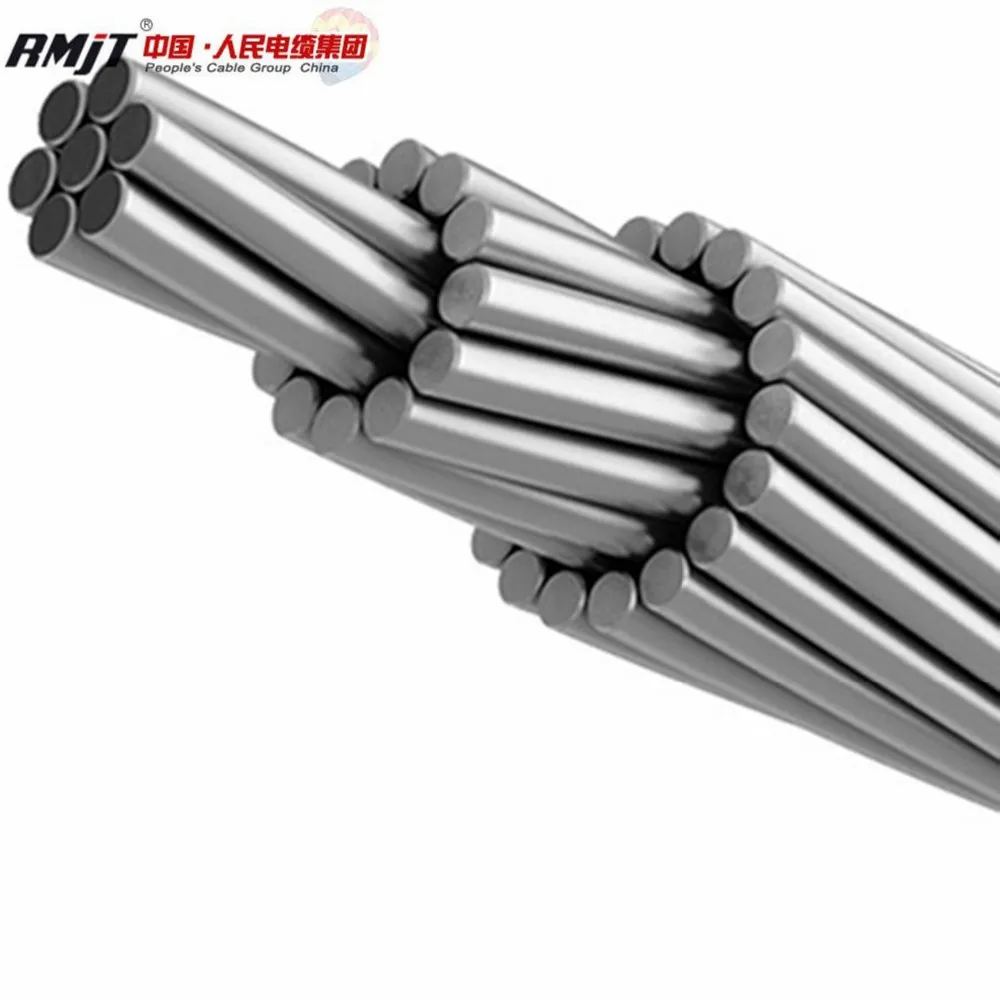

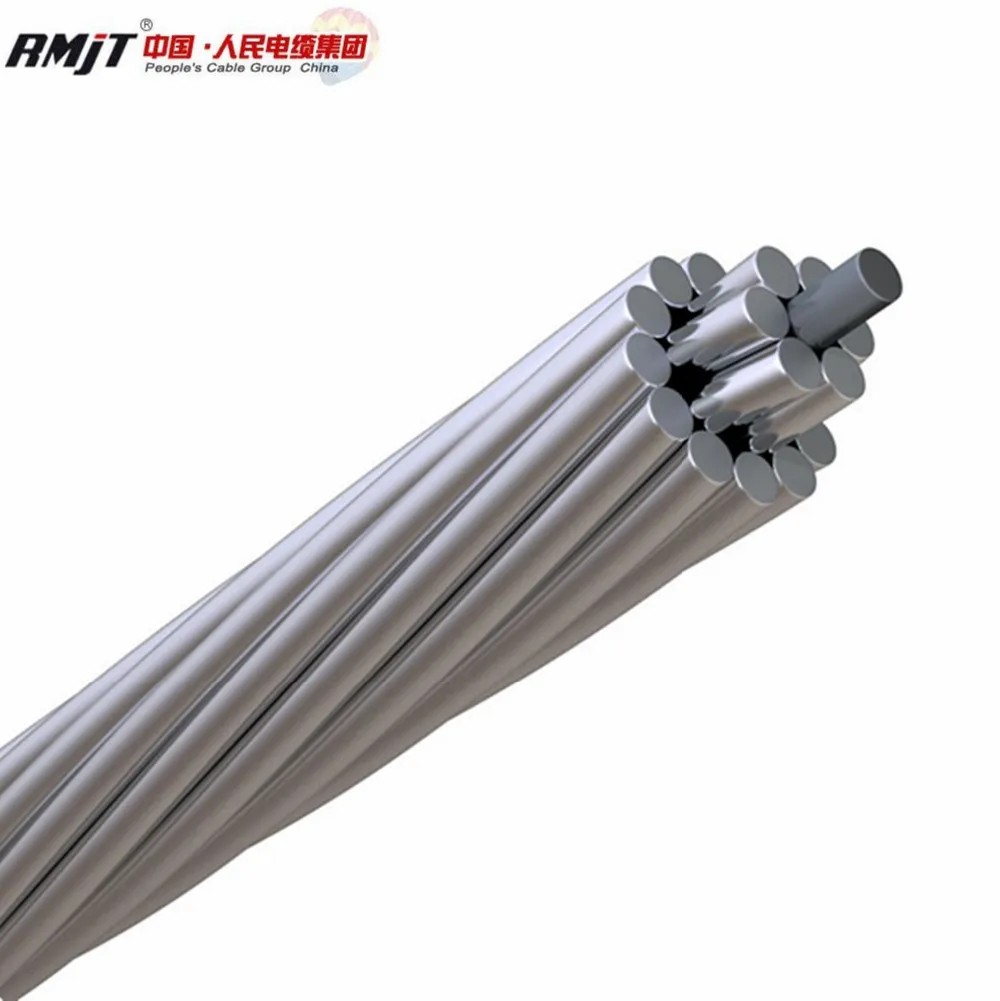

2019 best selling bare acsr conductor sizes
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
a. high tensile strength
b. better sag properties
c. economic design
d. best suited for transmission lines with long spans
Conductor: AL1350 pure aluminum
Steel core: G1A or G2A steel wire
Zinc coating steel wire
Ambient temperature: Above -20 °C
Working temperature: Not exceed 80 °C
Laying bending radius: Not less than 30 times the cables outer diameter
ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 conductors
BS215-2 Aluminium conductors steel-reinforced, for overhead power transmission
DIN48204 Steel reinforced aluminum stranded conductors
IEC209 Aluminum stranded conductor steel reinforced
Customized type available.
Code Number | Calculated Area | Stranding and Wire Diameter | Overall | Linear | Calculated | Max. D.C. |
Diameter | Mass | Breaking load | Resistance at 20°C | |||
mm2 | mm2 | mm | mm | Kg/km | daN | Ω/km |
16 | 15.89 | 7/1.70 | 5.1 | 44 | 290 | 1.8018 |
25 | 24.25 | 7/2.10 | 6.3 | 67 | 425 | 1.1808 |
35 | 34.36 | 7/2.50 | 7.5 | 94 | 585 | 1.8332 |
50 | 49.48 | 7/3.00 | 9 | 135 | 810 | 0.5786 |
50 | 48.36 | 19/1.80 | 9 | 133 | 860 | 0.595 |
70 | 65.82 | 19/2.10 | 10.5 | 181 | 1150 | 0.4371 |
95 | 95.27 | 15/2.50 | 12.5 | 256 | 1595 | 0.3084 |
120 | 117 | 19/2.80 | 14 | 322 | 1910 | 0.2459 |
150 | 147.1 | 37/2.25 | 15.2 | 406 | 2570 | 0.196 |
185 | 181.6 | 37/2.50 | 17.5 | 501 | 3105 | 0.1587 |
240 | 242.54 | 61/2.25 | 20.2 | 670 | 4015 | 0.1191 |
300 | 299.43 | 61/2.50 | 22.5 | 827 | 4850 | 0.0965 |
400 | 400.14 | 61/2.89 | 26 | 1105 | 6190 | 0.07221 |
500 | 499.83 | 61/3.23 | 29.1 | 1381 | 7600 | 0.05781 |
625 | 626.2 | 91/2.96 | 32.6 | 1733 | 9690 | 0.04625 |
800 | 802.1 | 91/3.35 | 36.8 | 2219 | 12055 | 0.03611 |
1000 | 999.71 | 91/3.74 | 41.1 | 2766 | 14845 | 0.02897 |
Packing:
--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.
--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,
--200m or 250m per Drum, two drums per carton,
--305m/Wooden Drum, one drum per outer carton or pallet loading,
--500m/Wooden Drum, one drum per outer carton or pallet loading,
--1000m or 3000m wooden drum, then pallet loading.
*We can also offer customized OEM packing according to clients' request.
Delivery:
Port: Tianjin, or other ports as per your requirements.
Sea freight: FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

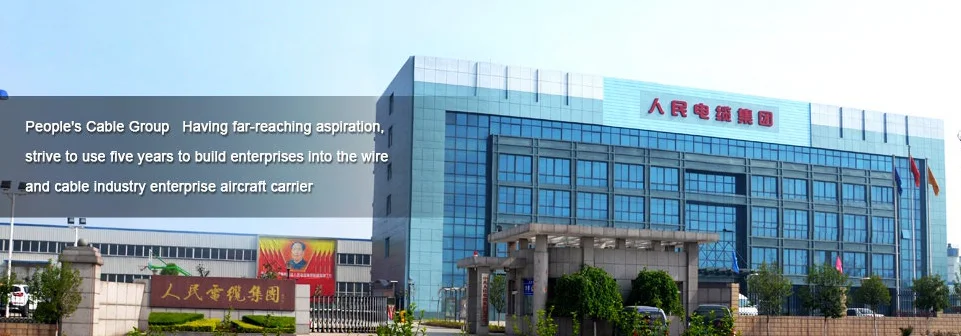

People's Cable Group Co.,Ltd
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
Please click the bule words of the detailed products, you can find the specifications in the new website.
ASTM/BS/CSA/IEC standard overhead acsr Parrot/Martin/Snowbird/Mallard conductor acsr conductor
high tensile strength ACSR DOG conductor with BS 215 part 2 with factory price
ACSR LYNX
For more information, please kindly contact us freely!
Welcome your inquiry of bare conductor, please kindly inform us the section area, material, application, quantity you needed, so that we could quote accordingly.
