Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > New Developed Insulated Electrical Wires 200 220 Class Refrigerant Resistant Aluminum Enameled Wire Portugal

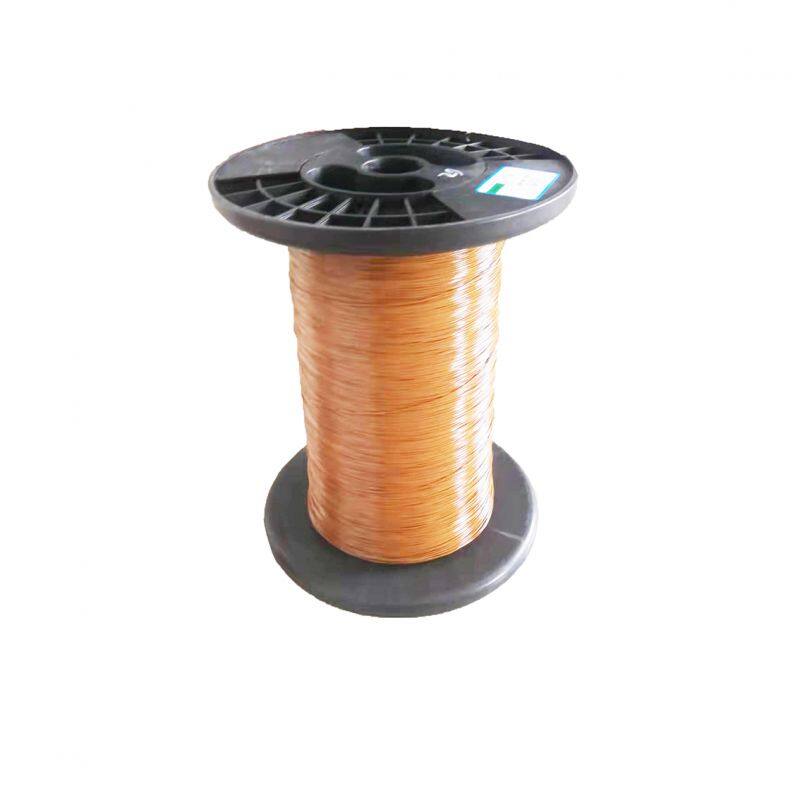

New Developed Insulated Electrical Wires 200 220 Class Refrigerant Resistant Aluminum Enameled Wire Portugal
US$ 16.50
50 - 99 Kilograms
US$ 16.00
100 - 199 Kilograms
US$ 15.50
≥200 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide,polyamide-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
REACH UL RoHS ISO9001 Certification Enameled Aluminium Winding Magnet Wire for Ceiling Fan Motor and Transformer Round WireUS$ 3.75 - 3.95MOQ: 500 Kilograms -
Manufacturer Direct Supply 220 Degree Round Aluminum Enameled Magnet Wire AWG/SWG IEC60317 Standard Round WireUS$ 3.72 - 3.92MOQ: 500 Kilograms
-
Enameled Round Wire Aluminium Winding for Ceiling Fan Motor and Transformer Electrical Wires IEC60317 PortugalUS$ 3.69 - 3.92MOQ: 500 Kilograms
-
Factory Direct Supply Prices Enameled Aluminium Round Wires IEC-60317 Standard Magnet Wire ISO UL REACH ROHS Certification Round WireUS$ 3.73 - 3.93MOQ: 500 Kilograms
-
REACH ROHS Certification Best Sales Enameled Aluminum Round Wire Insulated Winging Wire AWG SWG IEC-60317 CameroonUS$ 3.68 - 3.88MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
200 class
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ROHS REACH ISO9001 UL
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.6mm-5.00mm (4awg-32awg) Magnetic wire swg
Product Name: Refrigerant resistance 200 class enameled aluminum wire
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Details
Advantage
Techinical Data
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
