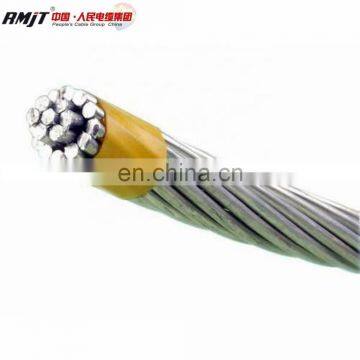

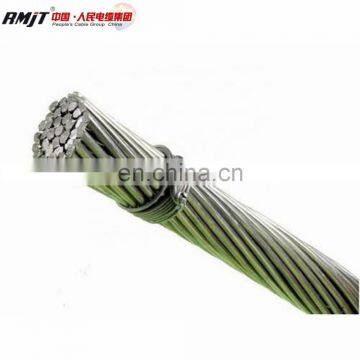

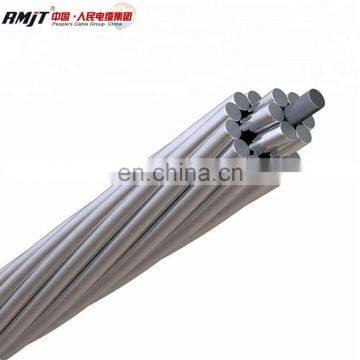

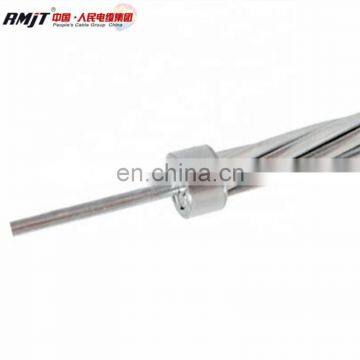

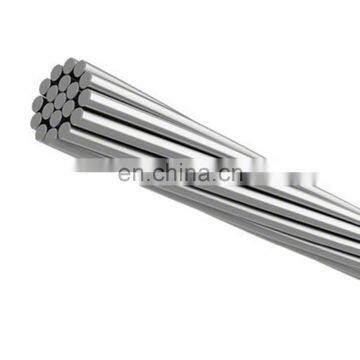

factory price acsr penguin cable
Application:
1. ACSR conductor widely used in power transmission lines with various voltage levels,as bare overhead transmission
cable and as primary and secondary distribution cable.
2.They are also suitable for laying across rivers and valleys where special geographical features exist.

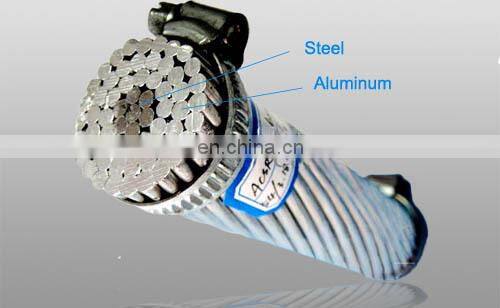

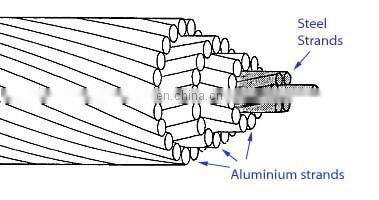

Technique Functions and Constructions :
| Code name | Area | Stranding and wire diameter | Nominal breaking load | Nominal DC resistance at 20 deg. | ||||
| Nominal Alum. | Alum. | Steel | Total | Alum. | Steel | |||
| mm2 | mm2 | mm2 | mm2 | mm | mm | kN | Ohm/km | |
| MOLE | 10 | 10.62 | 1.77 | 12.39 | 6/1.50 | 1/1.50 | 4.14 | 2.076 |
| SQUIRREL | 20 | 20.94 | 3.49 | 24.43 | 6/2.11 | 1/2.11 | 7.88 | 1.368 |
| GOPHER | 25 | 26.25 | 4.37 | 30.62 | 6/2.36 | 1/2.36 | 9.61 | 1.093 |
| WEASEL | 30 | 31.61 | 5.27 | 36.88 | 6/2.59 | 1/2.59 | 11.45 | 0.9077 |
| FOX | 35 | 36.66 | 6.11 | 42.77 | 6/2.79 | 1/2.79 | 13.20 | 0.7822 |
| FERRET | 40 | 42.41 | 7.07 | 49.48 | 6/3.00 | 1/3.00 | 15.20 | 0.6766 |
| RABBIT | 50 | 52.88 | 8.82 | 61.70 | 6/3.35 | 1/3.35 | 18.35 | 0.5426 |
| MINK | 60 | 63.18 | 10.53 | 73.71 | 6/3.66 | 1/3.66 | 21.80 | 0.4545 |
| BEAVER | 70 | 74.82 | 12.47 | 87.29 | 6/3.99 | 1/3.99 | 25.70 | 0.3825 |
| HORSE | 70 | 73.37 | 42.80 | 116.17 | 12/2.79 | 7/2.79 | 61.20 | 0.3936 |
| RACOON | 75 | 79.20 | 13.20 | 92.40 | 6/4.10 | 1/4.10 | 27.20 | 0.3622 |
| OTTER | 80 | 83.88 | 13.98 | 97.86 | 6/4.22 | 1/4.22 | 28.80 | 0.3419 |
| CAT | 90 | 95.40 | 15.90 | 111.30 | 6/4.50 | 1/4.50 | 32.70 | 0.3007 |
| HARE | 100 | 105.00 | 17.50 | 122.50 | 6/4.72 | 1/4.72 | 36.00 | 0.2733 |

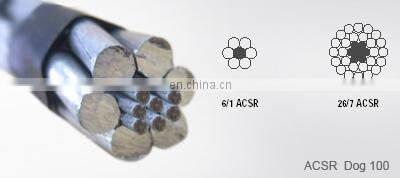

| DOG | 100 | 105.00 | 13.50 | 118.50 | 6/4.72 | 7/1.57 | 32.70 | 0.2733 |
| HYENA | 100 | 105.80 | 20.44 | 126.20 | 7/4.39 | 7/1.93 | 40.90 | 0.2712 |
| LEOPARD | 125 | 131.30 | 16.80 | 148.10 | 6/5.28 | 7/1.75 | 40.70 | 0.2184 |
| COYOTE | 125 | 132.10 | 20.10 | 152.20 | 26/2.54 | 7/1.91 | 46.40 | 0.2187 |
|
Cross Section mm2 |
Number Diameter | Calculation Aera mm2 |
Diameter mm |
Resistance ≤Ω/KM |
Force N |
kg/km | |||
| AL | Steel | Al | Steel | Total | |||||
| 10/2 | 6/1.50 | 1/1.50 | 10.6 | 1.77 | 12.37 | 4.50 | 2.076 | 4120 | 42.9 |
| 16/3 | 6/1.85 | 1/1.85 | 16.13 | 2.69 | 18.82 | 5.55 | 1.779 | 6130 | 65.2 |
| 25/4 | 6/2.32 | 1/2.32 | 25.36 | 4.23 | 29.59 | 6.96 | 1.131 | 9290 | 102.6 |
| 35/6 | 6/2.72 | 1/2.72 | 34.86 | 5.81 | 40.67 | 7.16 | 0.823 | 12630 | 140.0 |
| 50/30 | 12/2.32 | 7/2.32 | 50.73 | 25.59 | 80.32 | 11.60 | 0.5692 | 42620 | 372.0 |
| 70/40 | 12/2.72 | 7/2.72 | 69.73 | 40.67 | 110.4 | 13.60 | 0.4141 | 58300 | 511.3 |
| 95/15 | 26/2.15 | 7/1.67 | 94.39 | 15.33 | 109.72 | 13.61 | 0.3058 | 35000 | 380.8 |
| 120/25 | 7/4.72 | 7/2.10 | 122.48 | 24.25 | 146.73 | 15.74 | 0.2345 | 47880 | 526.6 |
| 150/35 | 30/2.50 | 7/2.50 | 147.26 | 34.36 | 181.62 | 17.50 | 0.1962 | 65020 | 676.2 |
| 185/10 | 18/3.60 | 1/3.60 | 183.22 | 10.18 | 193.4 | 18.00 | 0.1572 | 40880 | 584.0 |
| 210/50 | 30/2.98 | 7/2.98 | 209.24 | 48.82 | 258.06 | 20.86 | 0.1381 | 90830 | 960.8 |
| 240/30 | 24/3.60 | 7/2.40 | 244.24 | 31.67 | 275.96 | 21.60 | 0.1181 | 75620 | 922.2 |
| 300/50 | 26/2.83 | 7/2.98 | 299.54 | 48.82 | 348.36 | 24.26 | 0.09636 | 103400 | 1210 |
| 400/95 | 30/4.16 | 19/2.50 | 407.75 | 93.27 | 501.02 | 29.14 | 0.07087 | 171300 | 1860 |
| 500/45 | 48/3.60 | 7/2.80 | 488.58 | 43.10 | 531.68 | 30.00 | 0.05912 | 128100 | 1688 |
| 630/45 | 45/4.20 | 7/2.80 | 623.45 | 43.10 | 666.55 | 33.60 | 0.04633 | 148700 | 2060 |
| 800/55 | 45/4.80 | 7/3.20 | 814.3 | 56.30 | 870.60 | 38.40 | 0.03547 | 191500 | 2690 |
Our belif :
1.Our faith is:High quality cable made by People,People`s Cable used by people.
2.Everyone here are experts,we all passed professional training,and keep on studying all the way.
3.Our factory have more than 30 years experience about wire producing
4.We can assure Prompt delivery,and excellent quantity .
5.We have passed IEC9001,IEC14001, CCC,CE certifications
6.We have Trade assurance in alibaba, total amount is 1840000USD till now.
People’s Cable Group Co., Ltd. is a national non-regional enterprise integrating research and development, manufacturing and sale of electric wires and cables.The company has a floor area of 160,000 square meters, a building area of 100,000 square meters, a registered capital of RMB 0.1 billion, fixed assets of RMB 0.35 billion and domestic advanced production and inspection equipment.
The company can produce more than 30 varieties of products of more than 3,000 specifications such as low-, medium- and high-voltage cross-linked polyethylene insulated power cables, polyvinyl chloride insulated power cables, fire resistant cables, flame-retardant cables, control cables, overhead insulated cables, rail traffic cables, low smoke zero halogen cables, rubber sheathed cables, aluminum stranded wires, steel-core aluminum stranded wires, polyvinyl chloride insulated electric wires and flexible wires, farm-oriented underground plastic insulated wires, anti-aging wires, shielded cables, ready-made branch cables, waterproof cables, rat- and ant-proof cables and coaxial cables. Its products have been exported to more than 10 countries and areas in Southeast Asia, the Middle East, Africa, South America, etc.
People's Cable Group
Specialized in manufactured high, medium and low voltage XLPE ,fireresisitant cable,flame retardant cable,control cable,rubber cable, Insulated aerial cables,shielded cable,bare aluminum conductor ACSR,
AAC AAAC ACAR and ABC cable.PVCinsulated wire .Detailed informations are as follow:
1,PVC insulated wire
2,PVC/XLPE insulated power cable
2,Rubber jacketed cable
3,Contral cable(KVVP KVV KVVRP )
4,ABC cable
5,Bare conductor(AAC AAAC ACSR/AW ACSR/RE GSW ACS AACSR ACAR)

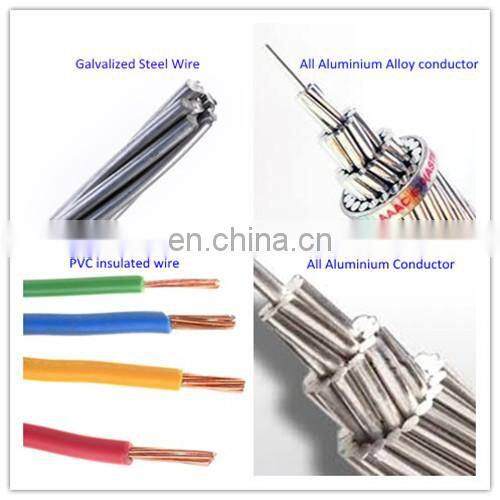

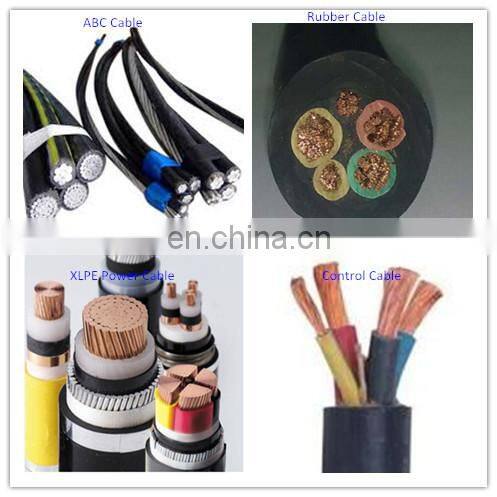

Sweet Pictures about some products:
We have obtained certificates of ISO9001, ISO14001,CCC,OHSAS, China's Electrical Product Safety Certification, State Economic and Trade Commission Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction and other certificates.
Through years of unremitting effort and endeavors, we have achieved sound reputation
and widely compliments from clients all over the world by superior quality, reasonable
price and sincere after-sale services.
1,About min order,price,delivery time ?
Dear, i would like to give you my answer,but could you give me your products specification first and required
quantity?then i can offer you quotation
2,When can i get the price?
Dear,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or
tell us in your e-mail so that we will regard your inquiry priority.
3,Do you have your own factory?
Yes,dear!we have our own factory, and many customers have visited it ,welcome to my factory!
4,How can i get the sample to check your quality?
Dear,after price confirmation, you can require for samples to check our quality.Sample is free,but the freight charge
should be paid.
Dear friends ,if you have any interest about our products,welcome to our factory to know more.please be freely to contact me:
