100mm 125mm 160mm 200mm 250mm all aluminum stranded conductor AAC AAAC cable
Applications
Stranded 1350 aluminum conductors shown in this section of data are classified as follows:
1. Class AA For bare conductors usually used in overhead lines.
2. Class A For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.
3. Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.
4. Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible.
Construction

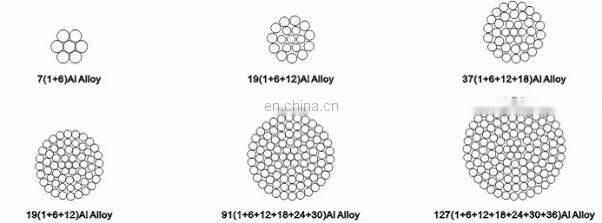

Aluminum alloy 1350-H19 wires, concentrically stranded.
Specifications
AAC bare conductors meet or exceed the following ASTM specifications :
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded
3. B-400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors
We can produce AAC seris just as the follow items

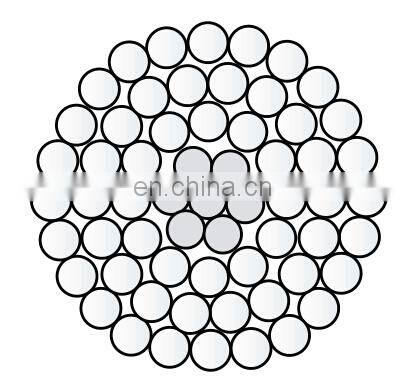

AC conductor is composed by concentric-lay-stranded galvanized steel wires and aluminium wires.
| Code name | Area | Stranding and wire diameter | Approox. Overall diameter | Weight | Nominal breaking load | Nom. DC resistance at 20 deg. | |
| Nominal | Actual | ||||||
| mm2 | mm2 | mm | mm | kg/km | kN | ohm/km | |
| 10 | 10 | 7 | 1.35 | 4.05 | 27.4 | 1.95 | 2.8633 |
| 16 | 16 | 7 | 1.71 | 5.12 | 43.8 | 3.04 | 1.7896 |
| 25 | 25 | 7 | 2.13 | 6.40 | 68.4 | 4.50 | 1.1453 |
| 40 | 40 | 7 | 2.70 | 8.09 | 109.4 | 6.80 | 0.7158 |
| 63 | 63 | 7 | 3.39 | 10.2 | 172.3 | 10.39 | 0.4545 |
| 100 | 100 | 19 | 2.89 | 12.9 | 274.8 | 17.00 | 0.2877 |
| 125 | 125 | 19 | 3.27 | 14.5 | 343.6 | 21.25 | 0.2302 |
| 160 | 160 | 19 | 3.66 | 16.4 | 439.8 | 26.40 | 0.1798 |
| 200 | 200 | 19 | 4.09 | 18.3 | 549.7 | 32.00 | 0.1439 |
| 250 | 250 | 19 | 3.29 | 20.5 | 687.1 | 40.00 | 0.1151 |
| 315 | 315 | 37 | 3.71 | 23.0 | 867.9 | 51.97 | 0.0916 |
| 400 | 400 | 37 | 3.94 | 26.0 | 1102.0 | 64.00 | 0.0721 |
| 450 | 450 | 37 | 4.15 | 27.5 | 1239.8 | 72.00 | 0.0641 |
| 500 | 500 | 37 | 4.39 | 29.0 | 1377.9 | 80.00 | 0.0577 |
| All Aluminium Alloy Conductors ASTM B 399 | ||||||
| AREA | Stranding and wire diameter | Approx. overall diameter | Weight | Nominal Breaking Load | Nom. DC resistance at 20 Deg. | |
| Nominal | Actual | |||||
| AWGorMCM | (mm2) | (mm) | (mm) | (kg/km) | (kN) | (ohm/km) |
| 6 | 13.3 | 7/1.554 | 4.67 | 37 | 4.22 | 2.5199 |
| 4 | 21.15 | 1/1.961 | 5.89 | 58 | 6.71 | 1.5824 |
| 2 | 33.63 | 7/2.474 | 7.42 | 93 | 10.68 | 0.9942 |
| 1/0 | 53.48 | 7/3.119 | 9.36 | 148 | 16.97 | 0.6256 |
| 2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 20.52 | 0.4959 |
| 3/0 | 85.03 | 7/3.932 | 11.8 | 234 | 25.86 | 0.3936 |
| 4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 32.63 | 0.3119 |
| 250 | 126.66 | 19/2.913 | 14.57 | 349 | 38.93 | 0.2642 |
| 300 | 152.1 | 19/63.193 | 15.97 | 419 | 46.77 | 0.2199 |
| 350 | 177.35 | 19/3.447 | 17.24 | 489 | 52.25 | 0.1887 |
| 400 | 202.71 | 19/3.686 | 18.43 | 559 | 59.74 | 0.1650 |
| 450 | 228 | 19/3.909 | 19.55 | 629 | 67.19 | 0.1467 |
| 500 | 253.35 | 19/4.120 | 20.6 | 698 | 74.64 | 0.1321 |
| 550 | 278.6 | 37/3.096 | 21.67 | 768 | 83.80 | 0.1202 |
| 600 | 303.8 | 37/3.233 | 22.63 | 838 | 91.38 | 0.1102 |
As one of top rank cables manufacturers in China, our Zhitian factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).
Wooden or iron drum or as customer's requirement
Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on.As first rank of the supplier in China, we have obtained ISO9001, ISO14001 and CCC certificates.
People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts
With the perfect quality and after sales service,our products are very popular in domestic market,whatever in civil using and the government projects.For oversea market,till now we have expanded our market to South America like Chile,Colombia,Bolivia,Brazil and so on,Euro-American market like U.S.A.Germany,Spain,U.K. And so on.Middle East,Africa,Southeast Asia,Mongolia and some other areas.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
