ASTM B232 BRANT/IBIS/LARK 397.5 mcm overhead ACSR bare conductor

 Description of ASTM B232 BRANT/IBIS/LARK 397.5 mcm overhead ACSR bare conductor

 397.5mcm acsr libs conductor consisting aluminium and galvanized steel wires, built up in concentric layers. The centre wires are steel and outer layer aluminium wires

Applications of ASTM B232 BRANT/IBIS/LARK 397.5 mcm overhead ACSR bare conductor

 397.5mcm acsr libs conductor consists of a solid or stranded steel core surrounded by strands of aluminium. 397.5mcm acsr conductor is available in  a range of steel strengthsvarying from 6% up to 40%. The higher strength ACSR partridge conductors are used for river crossings, overhead earth wires, and installations involving extra long spans.Against any given resistance of conductor,397.5mcm  acsr conductor may be manufactured to have different tensile strengthsas per requirement. The principal advantage of these conductors are their high tensile strength and light weight, covering longer spans with less supports. Due to the greater diameter of an ACSR partridge conductor much higher corona

limit can be obtained, giving a big advantage on high and extra high voltage overhead lines

1. Specification:

2. Standard:

We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109,

customer special specification also can be satisfied.

ACSR or ACSR cable or ACSR conductor used for Overhead electrical distribution and transmission lines for distributing power.

(AAAC) Conductor as per ASTM-B-399-1992

(AAAC) Conductor as per BS-3242-1970

(AAAC) Conductor IS: 398-IV-1994

(ACSR) as per ASTM-B-233-1992

(AAC) as per BS-215-1-1970

(AAC) as per IS-398-1: 1976

(AAC) as per ASTM-B-231-1990

(ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992

(ACSR) BS-215-II-1970

(AACSR) as per IEC-1089-1191

AAC(All aluminum conductor) are suited for overhead power line.

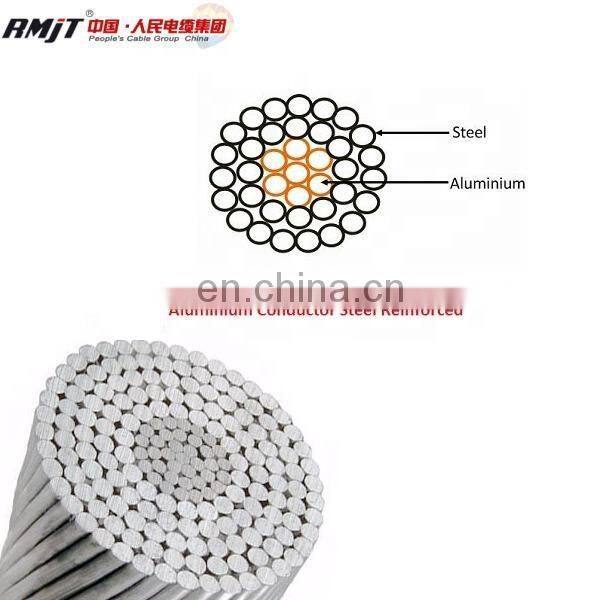

Construction:

A conductor consisting aluminium and galvanized steelwires, built up in concentric layers. The centre wires are
steel and outer layer aluminium wires.
