Specifications
1.Model Number:All aluminum conductor aac / acsr aaac conductor aluminium conductor

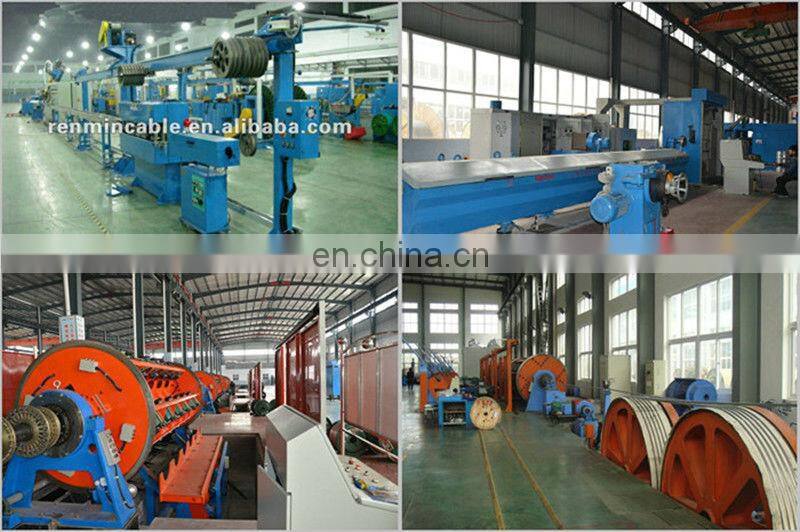

2.Since 1987, Profession Manufacture
1.Kinds of bare conductor
(1) all aluminium conductor (AAC) or all aluminium stranded conductor (ASW)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7)aluminimum conductor aluminimum alloy reinforced(ACAR)
(8)all aluminimum alloy steel reinforced(AACSR)
(9)aluminimum clad steel strand(ACS)
(10)galvanized steel wire strand(GSW)
2. Application
AAC(All aluminum conductor) OR ASC (Aluminium Stranded Conductors) are suited for overhead power line.
3.Description

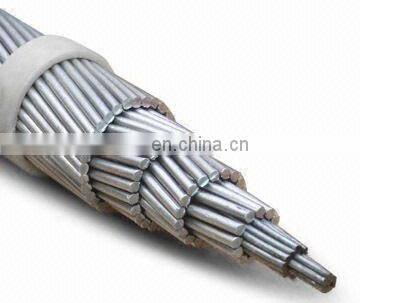

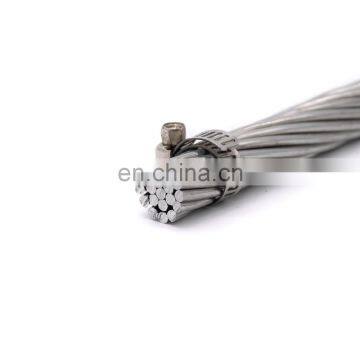

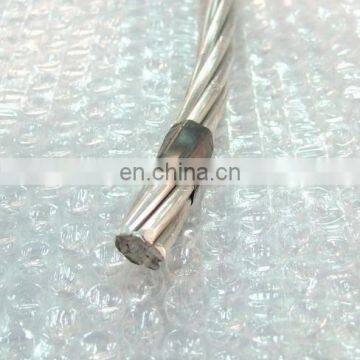

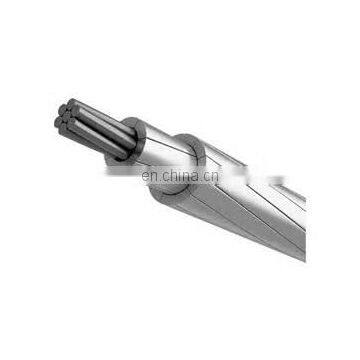

Bare concentric-lay-stranded aluminium wires constructed with a straight round central aluminum wire surrounded by one or more layers of helically laid aluminium wires.
The most commonly used stranding consists of 7, 19, 37, 61 and 91 wires.
In all constructions, the successive layers shall have opposite directions of lay, the outermost layer being right-handed.
4.Parts of data sheet
Technical Characteristics Based on Standard ASTM B231 | ||||||||
|
Code Words |
Size |
Area |
Number of wires |
Wire diameter |
Conductor diameter |
Linear mass |
Rated strength |
Calculated D.C. resistance at 20oC |
|
AWG or kcmil |
mm2 |
No. |
mm |
mm |
kg/km |
kN |
Ω/km |
|
Oxlip |
4/0 |
107.2 |
7 |
4.42 |
13.26 |
295.2 |
17 |
0.268 |
Tulip |
336.4 |
170.5 |
19 |
3.38 |
16.9 |
469.5 |
27.3 |
0.1688 |
Cosmos |
477 |
241.7 |
19 |
4.02 |
20.1 |
664.8 |
37 |
0.1194 |
Orchid |
636 |
322.3 |
37 |
3.33 |
23.31 |
886.9 |
50.4 |
0.0895 |
Arbutus |
795 |
102.8 |
37 |
3.72 |
26.04 |
1109 |
61.8 |
0.0717 |
Technical Characteristics Based on Standard BS 215-1 | |||||||
Code name |
Nominal aluminium area |
Stranding and wire diameter |
Sectional area |
Approx. overall diameter |
Approx. mass |
Calculated D.C. resistance at 20oC |
Calculated breaking load |
mm2 |
No./mm |
mm2 |
mm |
kg/km |
Ω/km |
kN |
|
MIDGE |
22 |
7/2.06 |
23.33 |
6.18 |
64 |
1.227 |
3.99 |
ANT |
50 |
7/3.10 |
52.83 |
9.3 |
145 |
0.5419 |
8.28 |
FLY |
60 |
7/3.40 |
63.55 |
10.2 |
174 |
0.4505 |
9.9 |
WASP |
100 |
7/4.39 |
106 |
13.17 |
290 |
0.2702 |
16 |
HORNET |
150 |
19/3.25 |
157.6 |
16.25 |
434 |
0.1825 |
25.7 |
CHAFER |
200 |
19/3.78 |
213.2 |
18.9 |
587 |
0.1349 |
32.4 |
COCKROACH |
250 |
19/4.22 |
265.7 |
21.1 |
731 |
0.1083 |
40.4 |
BUTTERFLY |
300 |
19/4.65 |
322.7 |
23.25 |
888 |
0.08916 |
48.75 |
