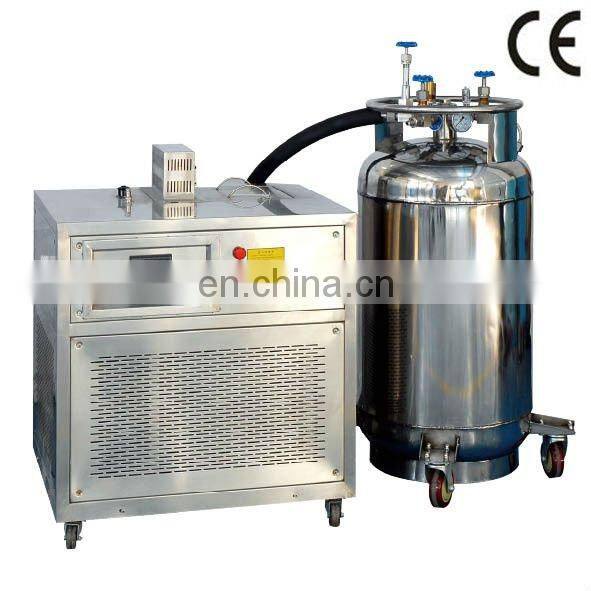

DWC-196 cryostat/low temperature chamber
Application
This equipment used liquid nitrogen refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2007 of the provisions. The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
Standards
ASTM, E23-02a, EN10045, ISO83,GB/T229-2009
Main Specifications
Model | DWC-100 | DWC-196 |
Cooling range | +30°C ~-100°C | +30°C ~-196°C |
Constant temperature accuracy | ±2°C | |
Temperature dropping speed | 2°C ~5°C / min | |
Max. Dimension | 900×660×650 mm | |
Dimension of the liquid nitrogen tank | 1000×600×600 mm | |
Effective working space | 240×150×150mm(huge stainless steel refrigerator) | |
Specimens amount | 60 (Impact Specimens Size: 10×10×55mm) | |
Digital timer | 1min~9999min(Resolution:1min) | |
Cooling medium | Liquid nitrogen | |
Power supply | 220V~240V, 50HZ, 2.5KW | |
Pictures :
