Jet Mill for Sale
- 50 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
Product Details
Brand Name: | ALPA | Place of Origin: | China | Model Number: | MQW |
Type: | Other, Jet Mill | Certification: | CE,ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1-year warranty | Weight: | Customizable | Dimension(L*W*H): | Customizable |
Condition: | New | Power(W): | 21kw | Motor Type: | AC Motor |
Capacity(t/h): | 2-7500 kg/h |
Product Description

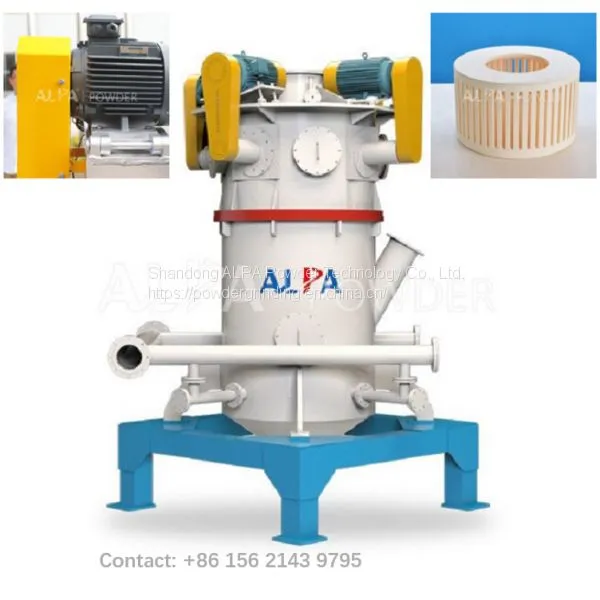

Jet Mill for Sale
Widely used in chemical, mineral, metallurgy, abrasives, ceramics, refractory materials, medicines, pesticides, food, health products, new materials and other industries.
Jet Mill Features:
1.Available particle size D50:1-25μm;
2.Speed of wheel is controlled by converter, particle size can be adjusted freely;
3.High energy utilization rate, promote material flow, improve powder screening efficiency;
4.PLC control system, easy operation;
5.Optional explosion-proof design, can also be upgraded to nitrogen circulation system to meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials;
6.Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
Jet Mill Working Principle:
Fluidized(Fluidised) bed opposed jet mill works with cyclone separator, dust collector and suction fan to form a complete grinding system.Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.
Milled powder would go up to the classifying chamber by the air flow from suction fan. The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.
Jet Mill Engineering Cases:

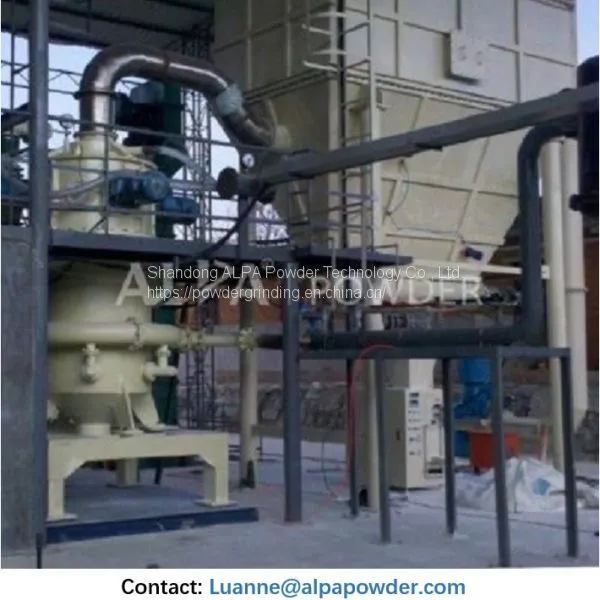

Korea a food enterprise, rice flour output 400-500KG/H, particle size D90:45μm, Jet Mill Production Line
Shandong ALPA Powder Technology Co., Ltd.
(abbreviation: ALPA / Equity Code: 171033)
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Q: What service do you supply?
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
