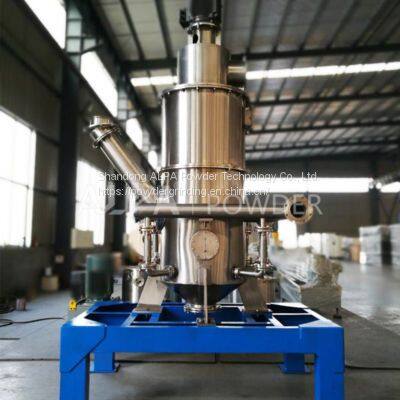

Silicon Oxide Powder Ultrafine Grinding Micronizer Jet Mill

Silicon Oxide Powder Ultrafine Grinding Micronizer Jet Mill

ALPA Jet Mill Grinding Mill Features

1.Available particle size D50:2-45μm;

2.Vertically classifier rotor with maximum line speed of 70m/s;

3.The jet mill is suitable for dry grinding of various materials with Moh’s hardness below 9, especially for the materials with high hardness, high purity and high added value;

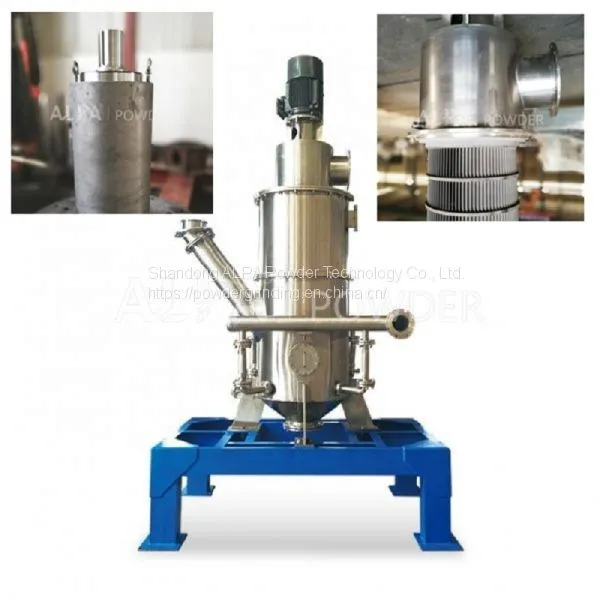

4.Key parts like inner liner, classifying wheel and nozzle are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring zero contact with metal throughout the pulverization process to meet the requirements of high purity materials;

5.PLC control system, easy operation;

6.Optional explosion-proof design, can also be upgraded to nitrogen circulation system to meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials.

ALPA Jet Mill Grinding Mill Working Principle

Jet Mill works with cyclone separator, dust collector and suction fan to form a complete grinding system.

Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.

Milled powder would go up to the classifying chamber by the air flow from suction fan. The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.

Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.

Silicon Oxide Powder Applications

Paint, plastic, color rubber, magnetic materials, in addition, nano-silica can be widely used in ceramics (sugar) porcelain, gypsum, batteries, paints, adhesives, cosmetics, glass, steel, fiber, glass, and many other fields of environmental protection products the upgrading.
