Home > Products > Jet Mill > Silicon Powder High Purity Ultrafine Grinding Production Line Air Jet Mill

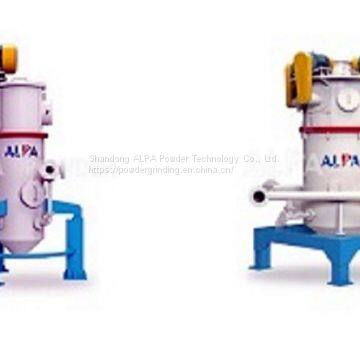

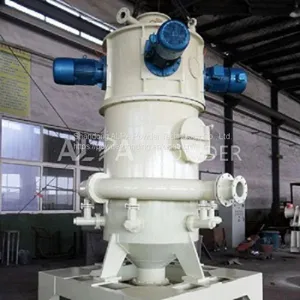

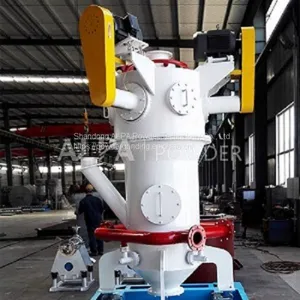

Silicon Powder High Purity Ultrafine Grinding Production Line Air Jet Mill
- 1000 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Escrow
- 30 days
Product Details
Brand Name: | ALPA | Place of Origin: | China | Model Number: | MQW |
Type: | Pulverizer | Certification: | CE,ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1-year warranty | Weight: | Customizable | Dimension(L*W*H): | Customizable |
Condition: | New | Product Type: | Other, Powder | Voltage: | Local Voltage |
Power(W): | 21kw |
Product Description
Silicon Powder High Purity Ultrafine Grinding Production Line Air Jet Mill
Jet Mill Features:
1.Available particle size D50:1-25μm;
2.The jet mill is suitable for dry grinding of various materials with Moh’s hardness below 9, especially for the materials with high hardness, high purity and high added value;
3.Constant temperature or low temperature, medium-free grinding,especially suitable for materials of heat sensitive, low melting point, sugary, volatile nature;
4.Grinding is in closed system, low dust and noise, clean and environmentally friendly production process;
5.PLC control system, easy operation.

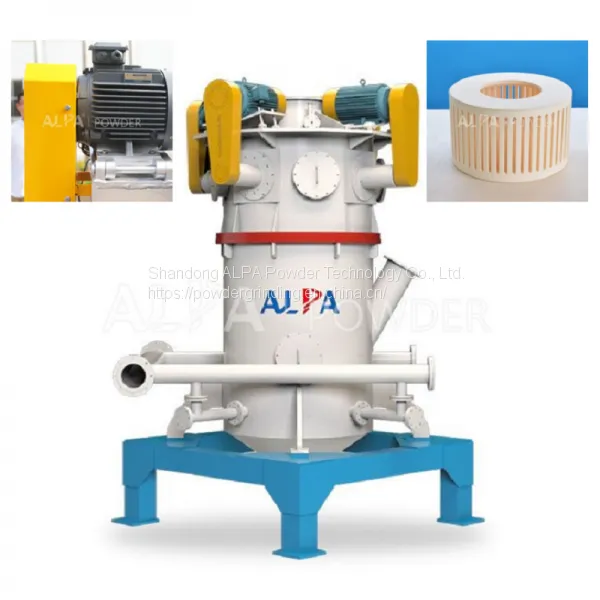

Jet Mill Working Principle

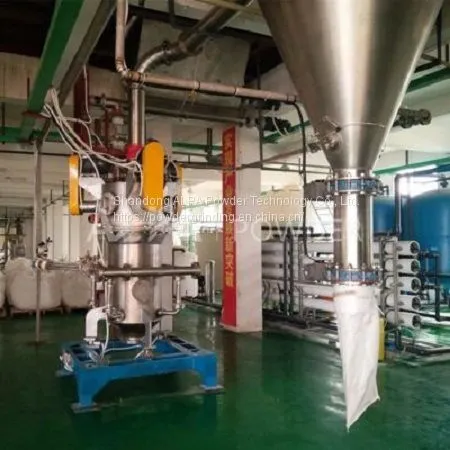

Fluidized(Fluidised) bed opposed jet mill works with cyclone separator, dust collector and suction fan to form a complete grinding system.Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.
Milled powder would go up to the classifying chamber by the air flow from suction fan. The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.
Technical Parameters
Parameters/specifications | MQW03 | MQW06 | MQW10 | MQW20 | MQW40 | MQW60 | MQW120 |
Feed Size(mm) | <3 | <3 | <3 | <3 | <3 | <3 | <3 |
Product Size(d97:um) | 2~45 | 2~45 | 2~45 | 2~45 | 2~45 | 2~45 | 2~45 |
Production Capacity(kg/h) | 2~30 | 30~200 | 50~500 | 100~1000 | 200~2500 | 500~3500 | 800~7500 |
Air consumption(m3/min) | 3 | 6 | 10 | 20 | 40 | 60 | 120 |
Air Pressure(Mpa) | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 |
Installed Power(kw) | 21 | 42 | 85 | 147 | 282 | 415 | 800 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Contact Us
- Shandong ALPA Powder Technology Co., Ltd.
- Contact nameLuanne
- Phone86-0532-15621439795
- Addressshibei Qingdao,Shandong
