2-150 Microns Powder Milling Systems Fluidized Bed Opposed Jet Mill for Sale
US$ 10000 - 90000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ALPA
Place of Origin:
China
Model Number:
MQL
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
30 days
Related Products
-
1.5-150 Micron Powder Grinding Pulverizer Fluidized Bed Spiral Jet Mill MicronizationUS$ 10000 - 90000MOQ: 1 Set -
Ultrafine Grinding Technology Milling Particle Size Micronizer Jet MillUS$ 9999 - 90000MOQ: 1 Set
-
Boron Nitride Powder Making Machine Fluidized Bed Opposed Jet Mill MicroniserUS$ 9999 - 90000MOQ: 1 Set
-
Silicon Oxide Powder Ultrafine Grinding Micronizer Jet MillUS$ 9999 - 90000MOQ: 1 Set
-
Lithium Cobalt Oxide Powder Disc Jet Mills Air Jet Mill Micronizer for SaleUS$ 9999 - 90000MOQ: 1 Set
Brand Name
ALPA
Place of Origin
China
Model Number
MQL
Type
Pulverizer
Certification
CE,ISO
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1-year warranty
Weight
Customizable
Dimension(L*W*H)
Customizable
Condition
New
Product Type
Other, Powder
Voltage
Local Voltage
Power(W)
26kw

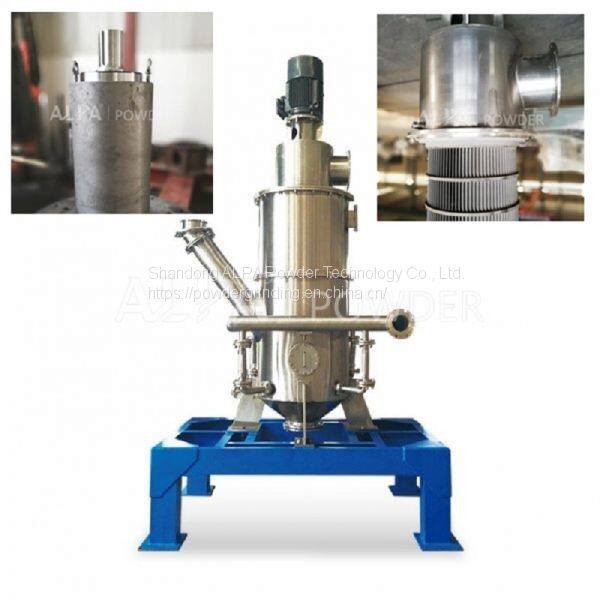

2-150 Microns Powder Milling Systems Fluidized Bed Opposed Jet Mill for Sale
widely used in chemical, mineral, metallurgy, abrasives, ceramics, refractory materials, medicines, pesticides, food, health products, new materials and other industries.
Jet Mill Features:
| Available particle size D50:2-45μm |
| Vertically classifier rotor with maximum line speed of 70m/s; |
| Speed of wheel is controlled by converter, particle size can be adjusted freely; |
| The jet mill is suitable for dry grinding of various materials with Moh’s hardness below 9, especially for the materials with high hardness, high purity and high added value; |
| The world’s leading high-precision classifier rotor with line speeds up to 80m/s, ensuring high precision for product requirements; |
| Grinding is in closed system, low dust and noise, clean and environmentally friendly production process; |
| PLC control system, easy operation; |
| Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time; |
Jet Mill Working Principle:

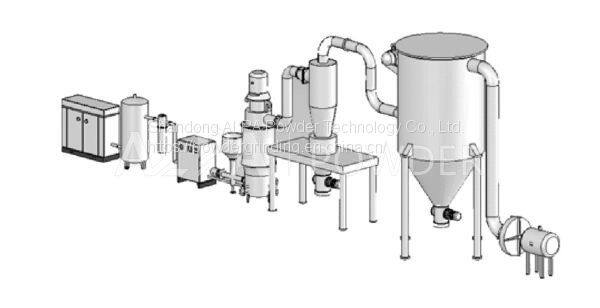

Jet Mill works with cyclone separator, dust collector and suction fan to form a complete grinding system. Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.Milled powder would go up to the classifying chamber by the air flow from suction fan. The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.
Technical Parameters
| Parameters/specifications | MQL03 | MQL06 | MQL10 | MQL20 | MQL40 | MQL60 | MQL80 | MQL120 |
| Feed Size (mm) | <5 | <5 | <5 | <5 | <5 | <5 | <5 | <5 |
| Product Size (d97:um) | 8～150 | 8～150 | 8～150 | 8～150 | 10～150 | 10～150 | 10～150 | 10～150 |
| Production Capacity (kg/h) | 5～100 | 10～200 | 20～400 | 50～800 | 150～1500 | 300～2000 | 400～6000 | 600～10000 |
| Air consumption (m3/min) | 3 | 6 | 10 | 20 | 40 | 60 | 80 | 120 |
| Air Pressure (Mpa) | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 |
| Installed Power (kw) | 26～37 | 46～68 | 68～106 | 145～184 | 276～310 | 402～427 | 520～600 | 720～900 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
Shandong ALPA Powder Technology Co., Ltd.
(abbreviation: ALPA / Equity Code: 171033)
THE WORLD’S LEADING SUPPLIER OF
ULTRA-FINE POWDER SOLUTIONS
ALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Who Choose ALPA
Common choice of many well-known companies
By 2018, 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and
engineering technology research centers have selected ALPA.
More than 3,000 customers have chosen us
Q: What service do you supply?
A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment beafore place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment beafore place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
