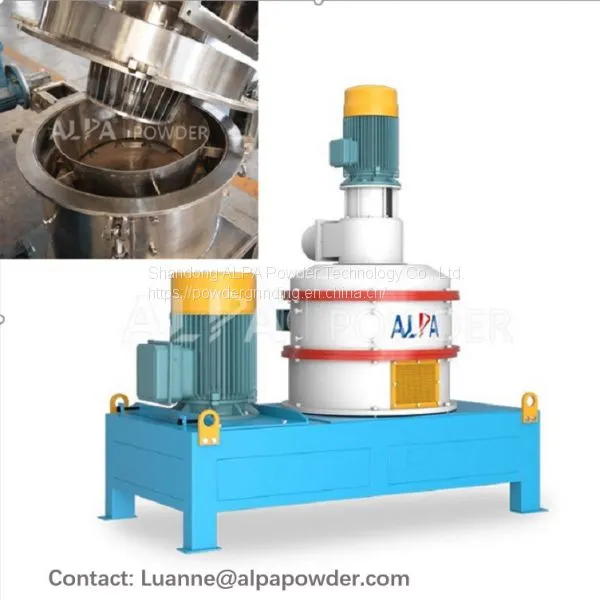

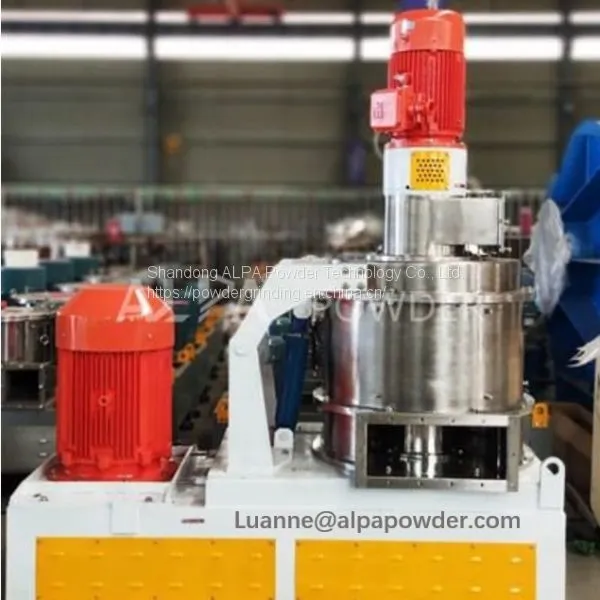

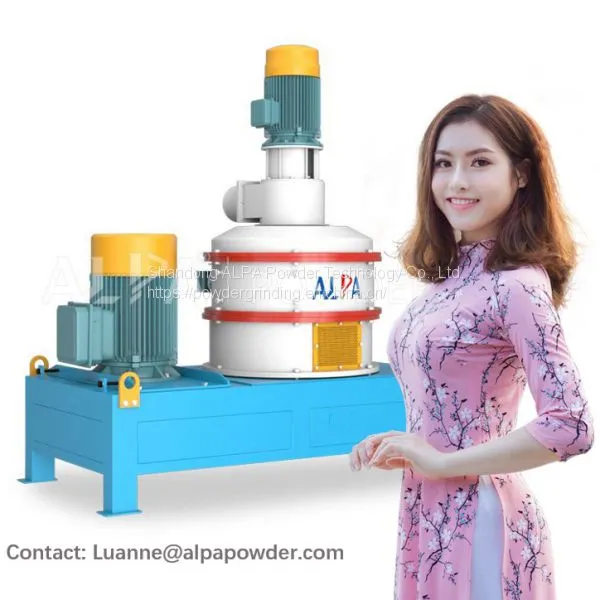

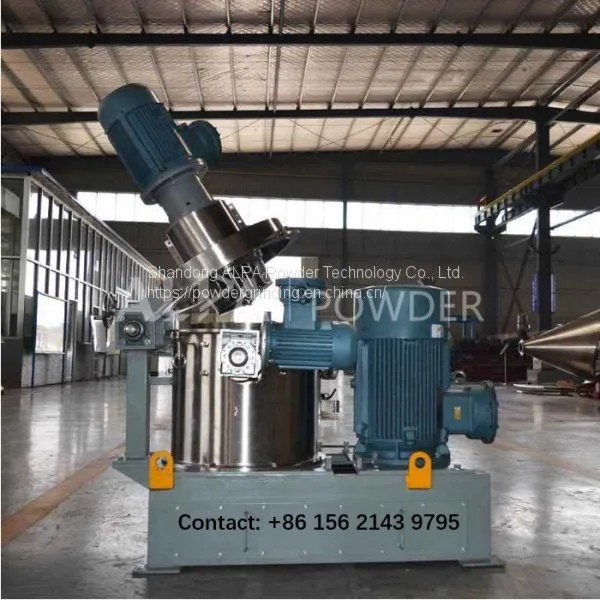

2-300um Quartz Powder Ultrafine Grinding Air Classifier Mill
Air Classifier Mill Features:
Widely used in non-metallic minerals (Mohs hardness1.Available D50:2~45μm;
2.Classifying wheel is vertical installation;
3.Integration of grinding and classifying, classifying wheel is adjusted to obtain ideal particle;
4.Different types of grinding disc (pin, hammer, teeth or others) are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency;
5.Key parts like the hammer, gear ring and classifying wheel are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring non-contact with metal throughout the grinding for high purity of the final product;
6.PLC control system, easy operation.
Air Classifying Mill Working Principle:
The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating grinding disc.
At the same time, it is subjected to centrifugal force and collides with the grinding ring gear, and is subjected to various comprehensive forces such as shearing, friction and collision to finished grinding.

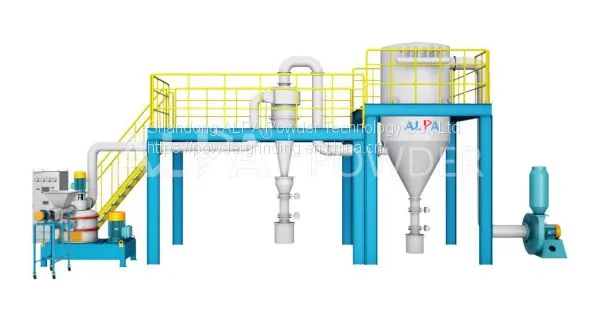

The grinded material moves to the classifying zone with the airflow. The classifier is adjusted by frequency conversion, separates the coarse and fine materials, the product that meet the fineness requirement enters the cyclone collector and the dust collector with the airflow, and the coarse powders return to the classifying zone, secondary grinding.
More about Quartz Powder:
Quartz powder is also called silica powder. Quartz sand is a hard, wear-resistant, chemically stable silicate mineral, and its main mineral component is SiO2.
Quartz powder is widely used in glass, ceramic refractory materials, construction industry, machinery manufacturing, electronic applications, rubber, coatings, metallurgy, aviation and other fields.
ACM Mill Technical Parameters:
| Parameter | CSM-280V | CSM-350V | CSM-510V | CSM-710V | CSM-1100V | CSM-1250V |
|
| Power (kw) | Grinding Disc | 7.5 | 11~15 | 22~30 | 45~55 | 90~110 | 132~160 |
| Power (kw) | Classifier Impeller | 1.5 | 2.2 | 4~5.5 | 7.5~11 | 15 | 18.5~22 |
| Power (kw) | Feeder | 0.55~1.1 | 0.55~1.1 | 0.55~1.1 | 0.55~1.1 | 0.55~1.1 | 0.55~1.1 |
| Rotate Speed(r/min) | Grinding Disc | 7500 | 6200 | 4200 | 2800 | 2100 | 1700 |
| Rotate Speed(r/min) | Classifier Impeller | 500~4500 | 500~4000 | 400~3000 | 300~2500 | 250~2000 | 200~1600 |
| Rotate Speed(r/min) | Feeder | 20~100 | 20~100 | 20~100 | 20~100 | 20~100 | 20~100 |
| Max Air Flow (m3/h) | 700 | 900 | 3000 | 5400 | 10000 | 15000 | |
| Max Air Flow (m3/h) | 5~300 | 5~300 | 5~300 | 10~300 | 10~300 | 10~300 | |
| Max Air Flow (m3/h) | 2~100 | 10~400 | 15~600 | 30~1200 | 60~1500 | 300~3000 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
(abbreviation: ALPA / Equity Code: 171033)
ULTRA-FINE POWDER SOLUTIONS
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
