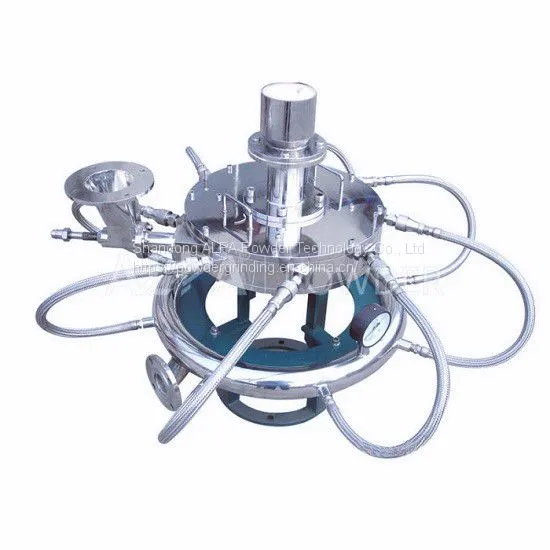

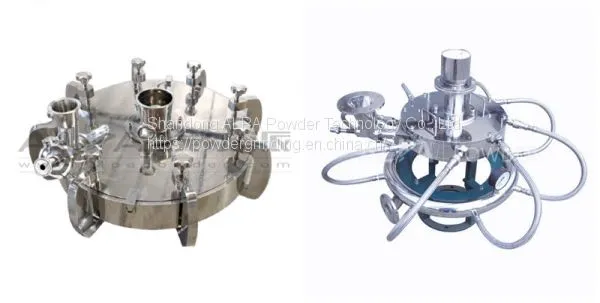

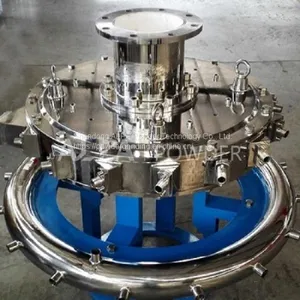

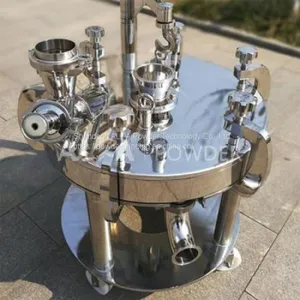

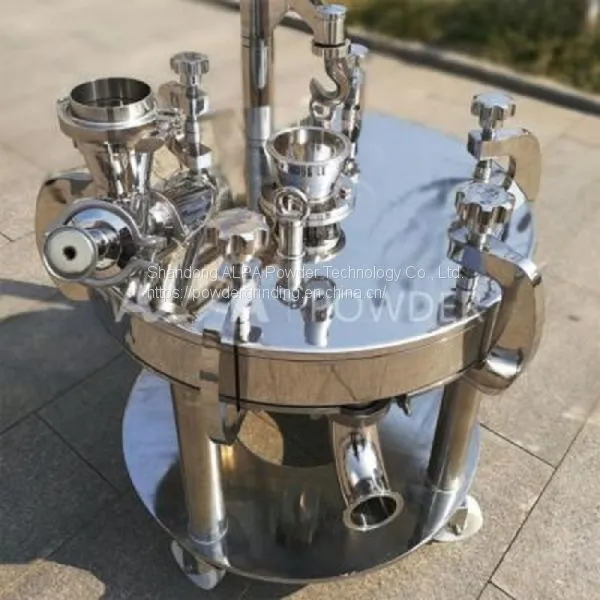

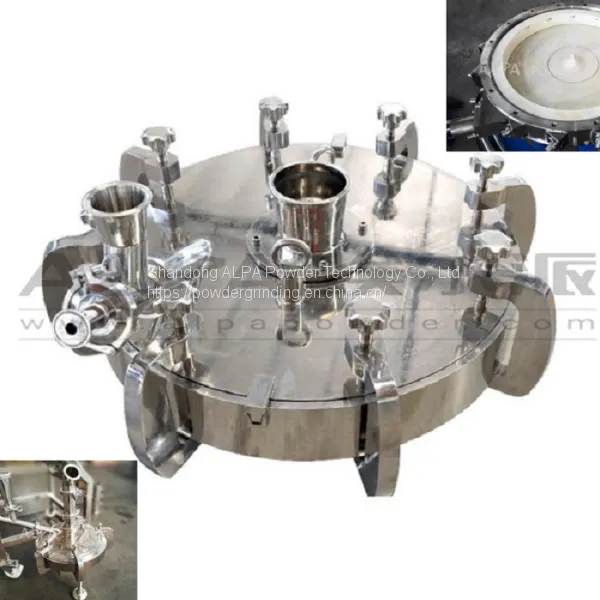

1.5-150 Micron Powder Grinding Pulverizer Fluidized Bed Spiral Jet Mill Micronization

1.5-150 Micron Powder Grinding Pulverizer Fluidized Bed Spiral Jet Mill Micronization

Spiral Jet Mill Features

Widely used in chemical, pharmaceutical, cosmetics, intermediates, food and other industries.

1.Available particle size D50:1.5-45μm, mostly suitable for depolymerization;

2.The jet mill is suitable for dry grinding of various materials with Moh’s hardness below 9, especially for the materials with high hardness, high purity and high added value;

3.The grinding process is completed by the collision of the materials themselves., Fully self-grinding, So The device is durable and the purity of products is high;

4.PLC control system, easy operation;

5.Optional explosion-proof design, can also be upgraded to nitrogen circulation system to meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials.

Spiral Jet Mill Working Principle

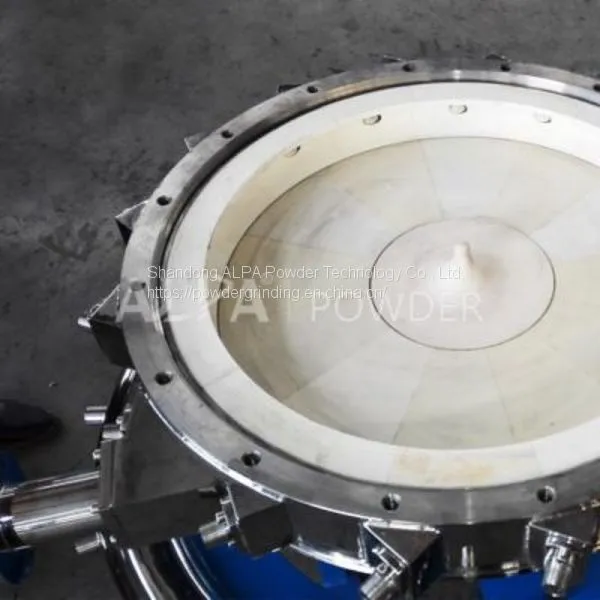

MQP Spiral Jet Mill(Disc Jet Mill) works with cyclone separator, dust collector and suction fan to form a complete grinding system. Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared. Milled powder would go up to the classifying chamber by the air flow from suction fan. The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder. Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.

ALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.

In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.

Who Choose ALPA

Common choice of many well-known companies

By 2018, 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and

engineering technology research centers have selected ALPA.

More than 3,000 customers have chosen us
