3-300um Powder Grinding Air Classifier Mill System for Alginate
- 1000 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
Product Details
Brand Name: | ALPA | Place of Origin: | China | Model Number: | CSM-HJ |
Type: | Pulverizer | Certification: | CE,ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1-year warranty | Weight: | Customizable | Dimension(L*W*H): | Customizable |
Condition: | New | Product Type: | Other, Powder | Voltage: | Local Voltage |
Power(W): | 7.5kw |
Product Description

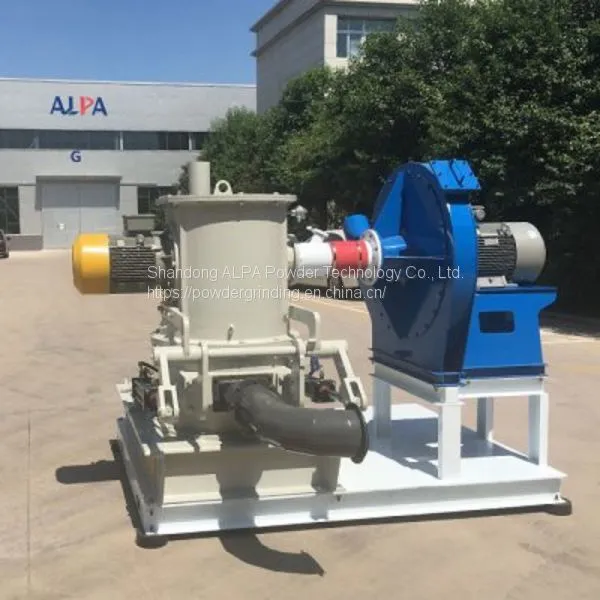

3-300um Powder Grinding Air Classifier Mill System for Alginate
Air Classifier Mill System Features
Widely used in non-metallic minerals (Mohs hardness less than 5), chemical, inorganic salts, pharmaceuticals, food, pigments, dyes, pesticides, battery materials, minerals, refractory materials, new materials and other industries.
1.Available D50:3~45μm;
2.Classifying wheel is Horizontally installation;
3.Integration of grinding and classifying, classifying wheel is adjustable to obtain ideal particle;
4.Different types of grinding disc (pin, hammer, teeth or others) are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency;
5.PLC control system, easy operation;
6.Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials.
Air Classifier Mill System Working Principle
The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating grinding disc.
At the same time, it is subjected to centrifugal force and collides with the grinding ring gear, and is subjected to various comprehensive forces such as shearing, friction and collision to finished grinding.
The grinded material moves to the classifying zone with the airflow.
The classifier is adjusted by frequency conversion, separates the coarse and fine materials, the product that meet the fineness requirement enters the cyclone collector and the dust collector with the airflow, and the coarse powders return to the classifying zone, secondary grinding.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Q: What service do you supply?
A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
