Home > Products > Communication & Networking Modules > Sierra Wireless LTE 4G Modules EM7430 for APAC Cat-6

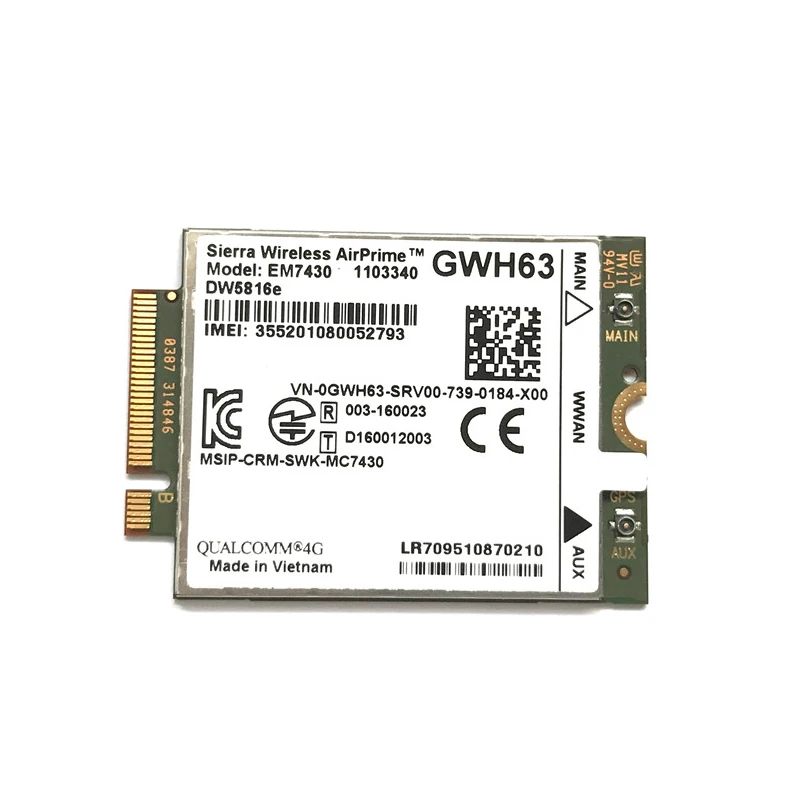

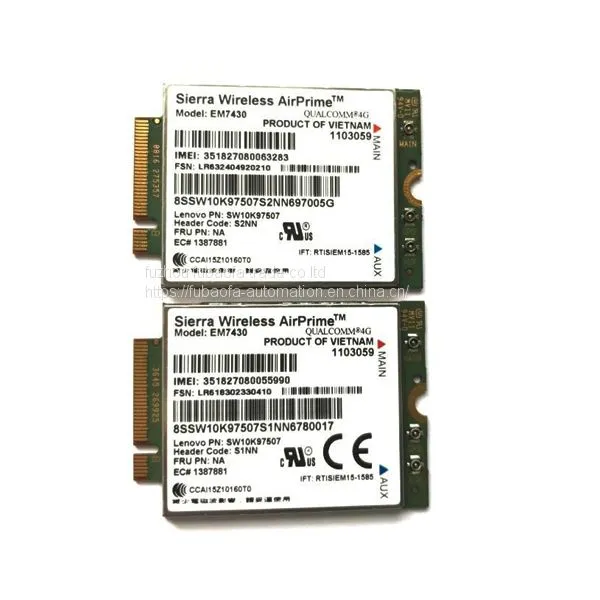

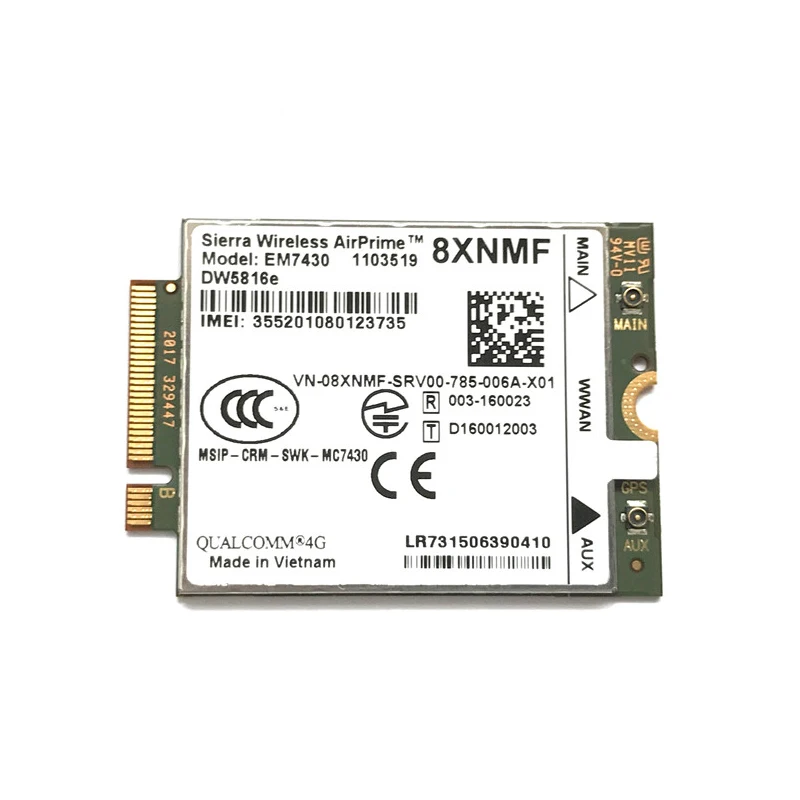

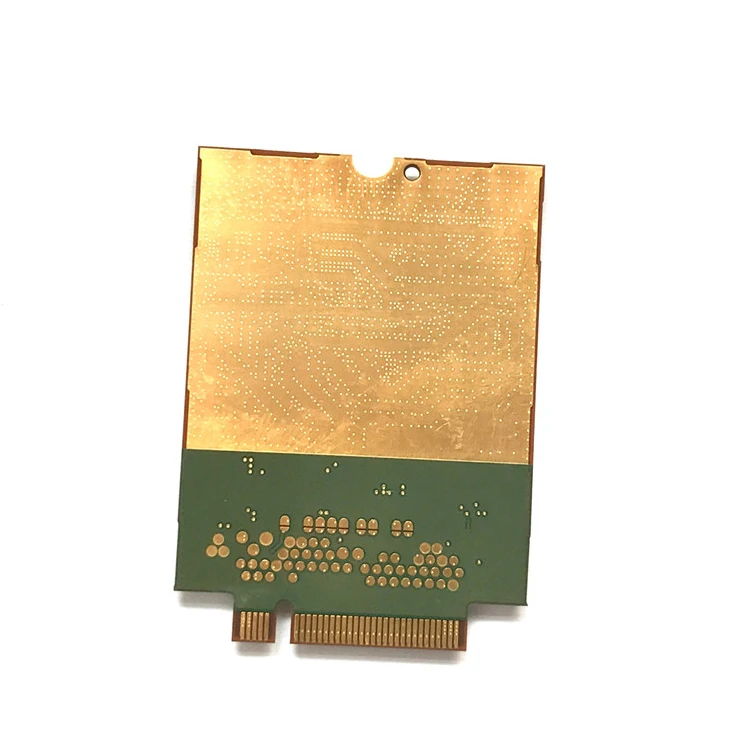

Sierra Wireless LTE 4G Modules EM7430 for APAC Cat-6
Negotiable
/ Piece
10 Pieces(Min. Order)
You May Like
-
SIM800L GSM GPRS Module With PCB Board And Antenna
-
SIMCOM SIM7000C-N Multi-Band LTE-FDD NB-IoT Module
-
SIM7600E Multi-Band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module LTE CAT4 Mini PCIE SIM7600E-H
-
GSM GPRS Module SIM800C
-
Sierra Wireless AirPrime WISMO228 Module
-
SIM800C Development Board GSM GPRS Module
Product Description
Product Description
Technical Specifications
4G LTE
Category
Cat-6
Frequency Bands
B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
3G
HSPA+, UMTS
B1, B5, B6, B8, B9, B19
TD-SCDMA
B39
DATA SPEED
Peak Download Rate
300Mbps
Peak Upload Rate
50Mbps
LOCATION SERVICES
Satellite Systems
Galileo, Glonass, GPS, Beidou
EMBEDDED SOFTWARE
System Drivers
Windows® 7, Windows® 8.1, Windows® 10, Linux Driver: Standard ECM, Android RIL
INTERFACES
USB
USB 3.0, USB 2.0 Highspeed
SIM interface 1.8V/3V
2
CONTROL OPTIONS
APIs, AT Commands
HARDWARE
Dimensions
42x30x2.3mm
Antenna
Diversity, MIMO, GNSS Bias, Connectors: Main, Aux/GNSS, GNSS
Temperature Range
Industrial Grade: -40°C / +85°C
APPROVALS
Carrier
docomo, KDDI, Softbank, Telstra
Regulatory
Anatel, GCF, JRF/JPA, KC, NCC
CLOUD SERVICES
Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option
4G LTE
Category
Cat-6
Frequency Bands
B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
3G
HSPA+, UMTS
B1, B5, B6, B8, B9, B19
TD-SCDMA
B39
DATA SPEED
Peak Download Rate
300Mbps
Peak Upload Rate
50Mbps
LOCATION SERVICES
Satellite Systems
Galileo, Glonass, GPS, Beidou
EMBEDDED SOFTWARE
System Drivers
Windows® 7, Windows® 8.1, Windows® 10, Linux Driver: Standard ECM, Android RIL
INTERFACES
USB
USB 3.0, USB 2.0 Highspeed
SIM interface 1.8V/3V
2
CONTROL OPTIONS
APIs, AT Commands
HARDWARE
Dimensions
42x30x2.3mm
Antenna
Diversity, MIMO, GNSS Bias, Connectors: Main, Aux/GNSS, GNSS
Temperature Range
Industrial Grade: -40°C / +85°C
APPROVALS
Carrier
docomo, KDDI, Softbank, Telstra
Regulatory
Anatel, GCF, JRF/JPA, KC, NCC
CLOUD SERVICES
Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option
