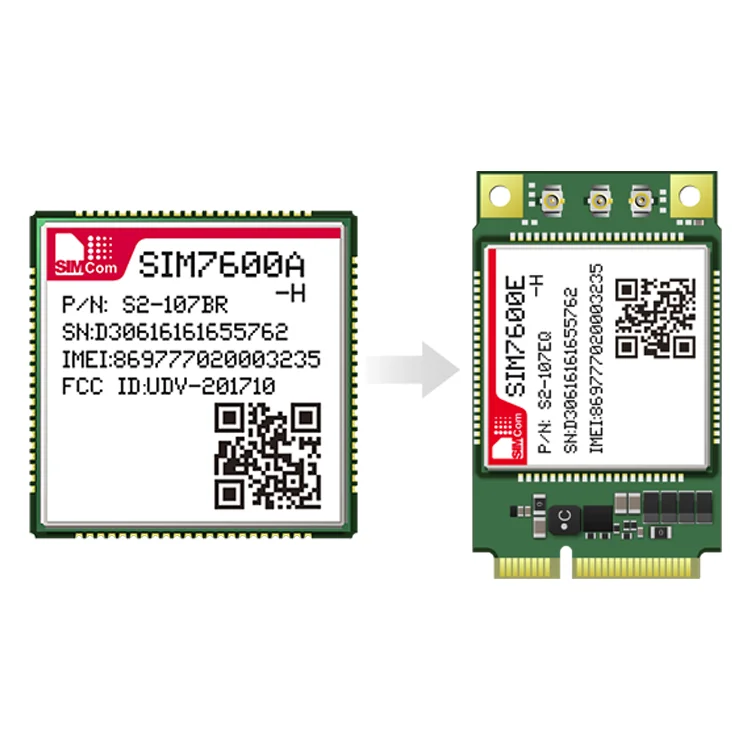

SIM7600A-H Multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module LCC Type Supports LTE CAT4 4G Module SIM7600
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2006
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIM5300E 3G Module Development Board Quad-band GSM GPRS GPS SMS SIM5300E EVB KITNegotiableMOQ: 10 Pieces -
SIM7020 SIM7020E Development Board B1/B3/B5/B8/B20/B28 Development KIT LTE NB-IoT SMT Type M2M ModuleNegotiableMOQ: 10 Pieces
-
SIM7600G-H-PCIE Multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module, SIM7600G-H (LCC) With PCIE Adapter BoardNegotiableMOQ: 10 Pieces
-
SIM7500JE-PCIE WCDMA 3G 4G LTE Module LTE-FDD B1/B8 GNSS GPS Module, SIM7500JE With MINI PCIENegotiableMOQ: 10 Pieces
-
Sierra Mc9090 Gsm Gprs Wireless Rf Quad-Band Receiver Charger ModuleNegotiableMOQ: 10 Pieces
LTE Cat-4 Module
•SIM7600X-H is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LCCtype which supports LTE CAT4 up to 150Mbps for downlink and 50Mbps for uplink data transfer.
-
•Designed in the compact and unified form factor, SIM7600X-H is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT1 SIM7600X and LTE CAT3 SIM7100 module, which allows customer to design their application once for different technology and benefit from great development time-saving.
-
Variant for EMEA/Korea/Thailand
SIM7600E-H:
•LTE-TDD: B38/B40/B41
•LTE-FDD: B1/B3/B5/B7/B8/B20
•UMTS/HSPA+: B1/B5/B8
•GSM/GPRS/EDGE: B3/B8
-
Variant for North America
SIM7600A-H:
•LTE-FDD: B2/B4/B12
•UMTS/HSPA+: B2/B5
-
SIM7600V-H:
•LTE-FDD: B2/B4/B5/B13
-
Variant for Australia/New Zealand/South America
SIM7600SA-H:
•LTE-TDD: B40/B66
•LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28
•UMTS/HSPA+: B1/B2/B5/B8
•GSM/GPRS/EDGE: 850/900/1800/1900MHz
-
Variant for Japan
SIM7600JC-H:
•LTE-FDD: B1/B3/B8/B18/B19/B26
-
General features
•LCC Package
•LCC+LGA Package(SIM7600NA-H)
•Control Via AT Commands
•Supply voltage range: 3.4V~ 4.2V, 3.8V Typical
•Operation temperature: -40℃to +85℃
•Dimension: 30*30*2.9mm
•Weight: 5.7g
•Bandwidth: 1.4/3/5/10/15/20MHz
•3GPP E-UTRA Release 11
SIM7600E-H:
•LTE-TDD: B38/B40/B41
•LTE-FDD: B1/B3/B5/B7/B8/B20
•UMTS/HSPA+: B1/B5/B8
•GSM/GPRS/EDGE: B3/B8
-
Variant for North America
SIM7600A-H:
•LTE-FDD: B2/B4/B12
•UMTS/HSPA+: B2/B5
-
SIM7600V-H:
•LTE-FDD: B2/B4/B5/B13
-
Variant for Australia/New Zealand/South America
SIM7600SA-H:
•LTE-TDD: B40/B66
•LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28
•UMTS/HSPA+: B1/B2/B5/B8
•GSM/GPRS/EDGE: 850/900/1800/1900MHz
-
Variant for Japan
SIM7600JC-H:
•LTE-FDD: B1/B3/B8/B18/B19/B26
-
General features
•LCC Package
•LCC+LGA Package(SIM7600NA-H)
•Control Via AT Commands
•Supply voltage range: 3.4V~ 4.2V, 3.8V Typical
•Operation temperature: -40℃to +85℃
•Dimension: 30*30*2.9mm
•Weight: 5.7g
•Bandwidth: 1.4/3/5/10/15/20MHz
•3GPP E-UTRA Release 11
-
Other features
•USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
•USB Driver for Linux /Android
•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
•MBIM to Win8
•Firmware update via USB
•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
•SSL3.0/TLS1.0/TLS1.2
•DTMF (Sending and Receiving)
•Audio Playing
•USB Audio and VoLTE
•FOTA
•eCall*
-
Specifications for Data transfer
•LTE CAT4
-Uplink up to 50Mbps
-Downlink up to 150Mbps
•HSPA+
-Uplink up to 5.76Mbps
-Downlink up to 42 Mbps
•UMTS
-Uplink/Downlink up to 384Kbps
•EDGE
-Uplink/Downlink up to 236.8Kbps
•GPRS
-Uplink/Downlink up to 85.6Kbps
-
Interfaces
•USB2.0 with High speed up to 480Mbps
•UART
•GPIO
•Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas
•(U)SIM card (1.8V/3.0V)
•Digital Audio through PCM
•MMC/SD
•SDIO
•ADC
-
Approvals
•RoHS Compliant
•CE(SIM7600E-H/SIM7600SA-H*)
•FCC/PTCRB/AT&T*(SIM7600A-H)
•FCC*/GCF*/Verizon*(SIM7600V-H)
•ACMA* (SIM7600SA-H)
•JATE/TELEC(SIM7600JC-H)
-
*Under Development/Testing
Other features
•USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
•USB Driver for Linux /Android
•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
•MBIM to Win8
•Firmware update via USB
•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
•SSL3.0/TLS1.0/TLS1.2
•DTMF (Sending and Receiving)
•Audio Playing
•USB Audio and VoLTE
•FOTA
•eCall*
-
Specifications for Data transfer
•LTE CAT4
-Uplink up to 50Mbps
-Downlink up to 150Mbps
•HSPA+
-Uplink up to 5.76Mbps
-Downlink up to 42 Mbps
•UMTS
-Uplink/Downlink up to 384Kbps
•EDGE
-Uplink/Downlink up to 236.8Kbps
•GPRS
-Uplink/Downlink up to 85.6Kbps
-
Interfaces
•USB2.0 with High speed up to 480Mbps
•UART
•GPIO
•Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas
•(U)SIM card (1.8V/3.0V)
•Digital Audio through PCM
•MMC/SD
•SDIO
•ADC
-
Approvals
•RoHS Compliant
•CE(SIM7600E-H/SIM7600SA-H*)
•FCC/PTCRB/AT&T*(SIM7600A-H)
•FCC*/GCF*/Verizon*(SIM7600V-H)
•ACMA* (SIM7600SA-H)
•JATE/TELEC(SIM7600JC-H)
-
*Under Development/Testing
