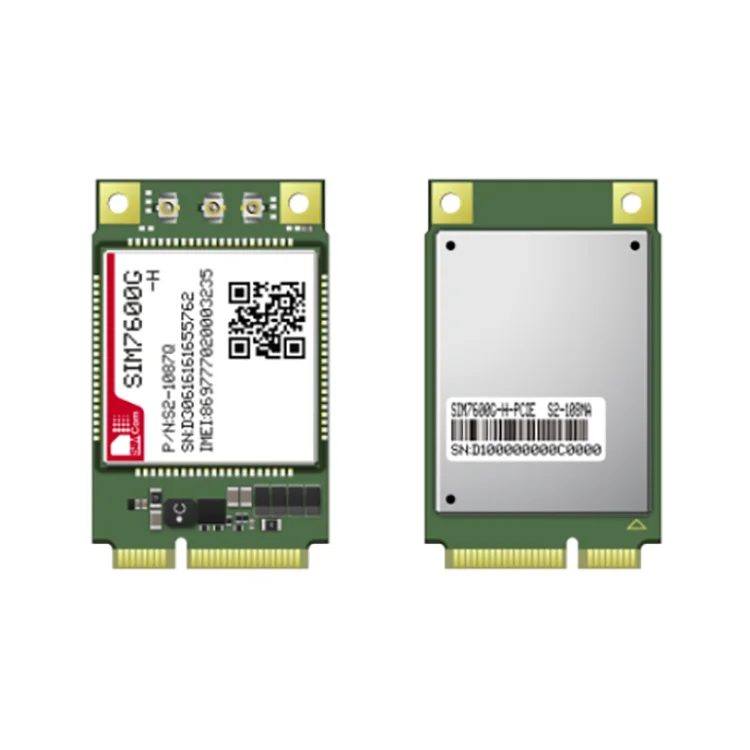

SIM7600G-H-PCIE Multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module, SIM7600G-H (LCC) with PCIE adapter board

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

SIMCOM SIM7600G-H-PCIE
General Features
•Mini PCIE package
•Control Via AT Commands
•Supply voltage range: 3.0V~ 3.6V, 3.3V Typical
•Operation temperature: -40℃ to +85℃
•Dimension: 50.8*31*5.35mm
•Weight: 12.6g
•Bandwidth: 1.4/3/5/10/15/20MHz
•3GPP E-UTRA Release 11

Date
•LTE CAT4
- Uplink up to 50Mbps
- Downlink up to 150Mbps
•HSPA+
- Uplink up to 5.76 Mbps
- Downlink up to 42 Mbps
•UMTS
- Uplink/Downlink up to 384Kbps
•EDGE
- Uplink/Downlink up to 236.8Kbps
•GPRS
- Uplink/Downlink up to 85.6Kbps
Other Features
•USB Driver for Microsoft Windows
2000/XP/Vista/Win7/Win8/Win10
•USB Driver for Linux /Android
•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
•MBIM to Win8
•Firmware update via USB
•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS
/HTTP/HTTPS/SMTP/SMTPS/DNS
•SSL3.0/TLS1.0/TLS1.2
•DTMF (Sending and Receiving)
•Audio Playing
•USB Audio and VoLTE
•FOTA

Interfaces
•USB2.0 with High speed up to 480Mbps
•UART
•GPIO
•Antenna: Support Primary/Rx-diversity/GNSS active
antenna
•(U)SIM card (1.8V/3.0V)
•Digital Audio through PCM
Approval(plan)
•FCC/IC
•CE/ACMA

Frequency
LTE-TDD
B34*/B38/B39/B40/B41
LTE-FDD
B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66*
UMTS/HSPA+
B1/B2/B4/B5/B6/B8/B19
GSM/GPRS/EDGE
850/900/1800/1900MHz

SIM7600X-H-PCIE:

Product	SIM7600A-H	SIM7600V-H	SIM7600SA-H	SIM7600JC-H	SIM7600E-H	SIM7600NA-H	SIM7600G-H
Form Factor	Mini PCIE	Mini PCIE	Mini PCIE	Mini PCIE	Mini PCIE	Mini PCIE	Mini PCIE
Dimensions(mm)	50.8315.35	50.8315.35	50.8315.35	50.8315.35	50.8315.35	50.8315.35	50.8315.35
Frequency Bands
LTE-FDD	B2/B4/B12	B2/B4/B5/B13	B1/B2/B3/B4/B5/ B7/B8/B20/B28/B66	B1/B3/B8/B18/B19/B26	B1/B3/B5/B7/B8/B20	B2/B4/B5/B12/B13/ B14/B25/ B26/B66/B71	B1/B2/B3/B4/B5/ B7/B8/B12/B13/ B18/B19/B20/B25/ B26/B28/B66
LTE-TDD			B40		B38/B40/B41	B41	B34/B38/B39/ B40/B41
WCDMA	B2/B5		B1/B2/B5/B8		1/B5/B8		B1/B2/B4/B5/ B6/B8/B19
GSM			850/900/1800/1900MHz		900/1800MHz		850/900/1800/1900MHz
GNSS	o	o	o	o	o	o	o
Temperature	-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃	-40℃ ~ +85℃
Electrical Features
Supply Voltage(V)	3.0~ 3.6	3.0~ 3.6	3.0~ 3.6	3.0~ 3.6	3.0~ 3.6	3.0~ 3.6	3.0~ 3.6
Power Consumption(mA)
LTE	2.3	2.3	2.3	2.3	2.3	2.3	2.3
WCDMA, DRX=9	3.3		3.3		3.3		3.3
GSM,BS_PA_MFRMS=2			2.8		2.8		2.8
Data Transfer
LTE(Mbps)	150(DL)/50(UL)	150(DL)/50(UL)	150(DL)/50(UL)	150(DL)/50(UL)	150(DL)/50(UL)	150(DL)/50(UL)	150(DL)/50(UL)
HSPA+(Mbps)	42(DL)/5.76(UL)		42(DL)/5.76(UL)		42(DL)/5.76(UL)		42(DL)/5.76(UL)
WCDMA(Kbps)	384(DL)/384(UL)		384(DL)/384(UL)		384(DL)/384(UL)		384(DL)/384(UL)
GPRS/EDGE(Kbps)			236.8(DL)/236.8(UL)		236.8(DL)/236.8(UL)		236.8(DL)/236.8(UL)
Software Features
Protocol	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS
TLS	●	●	●	●	●	●	●
File System	●	●	●	●	●	●	●
Audio Record/Play	o	o	o	o	o	o	o
TTS	o	o	o	o	o	o	o
DTMF	o	o	o	o	o	o	o
LBS	●	●	●	●	●	●	●
FOTA	●	●	●	●	●	●	●
Jamming Detection	●	●	●	●	●	●	●
Android RIL	Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0	Android 5.0/6.0/ 7.0/8.0/9.0
USB Driver	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android	Microsoft Windows 7/8/10 Linux/Android
WWAN (RNDIS)	●	●	●	●	●	●	●
ECM	●	●	●	●	●	●	●
MBIM	Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10	Win8/Win10
NDIS	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10	Linux/Windows 7/8/10
Open Linux	o	o	o	o	o	o	o
Firmware Upgrade	USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA
Interfaces
SIM Card	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V
UART	●	●	●	●	●	●	●
USB	●	●	●	●	●	●	●
PCM	o	o	o	o	o	o	o
Analog Audio	o	o	o	o	o	o	o
Embedded SIM card socket	o	o	o	o	o	o	o
Diversity Receiver	●	●	●	●	●	●	●
Certification
Regulatory	FCC/PTCRB/IC/ RoHS/ REACH	FCC/GCF/ RoHS/REACH	CE-RED/ACMA/FCC/NCC/ RoHS/REACH/Anatel	Telec/JATE/ RoHS/REACH	CE-RED/RoHS/ REACH/ IMDA/GCF	FCC/IC/PTCRB/ GCF/ RoHS/REACH	CE-RED/FCC/IC/RCM/ RoHS/ REACH
Carrier	AT&T	Verizon		Docomo/Softbank	Deutsche Telekom /Vodafone	AT&T/Verizon/ Sprint/T-mobile
●: support o: optional * : on going
