SIM800C Development Board GSM GPRS Module
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2006
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCOM 5G Module SIM8200EA-M2, SIM8200CE-M2 SIM8200EA 5G IoT ModuleNegotiableMOQ: 10 Pieces -
SIM7000 Series SIM7000A SIM7000E SIM7000JC Multi-Band LTE-FDD Module SMT Type LTE CAT-M1 LPWA EMTC Communication ModuleNegotiableMOQ: 10 Pieces
-
SIM7600A-H Multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module LCC Type Supports LTE CAT4 4G Module SIM7600NegotiableMOQ: 10 Pieces
-
SIM5300E 3G Module Development Board Quad-band GSM GPRS GPS SMS SIM5300E EVB KITNegotiableMOQ: 10 Pieces
-
SIM7020 SIM7020E Development Board B1/B3/B5/B8/B20/B28 Development KIT LTE NB-IoT SMT Type M2M ModuleNegotiableMOQ: 10 Pieces

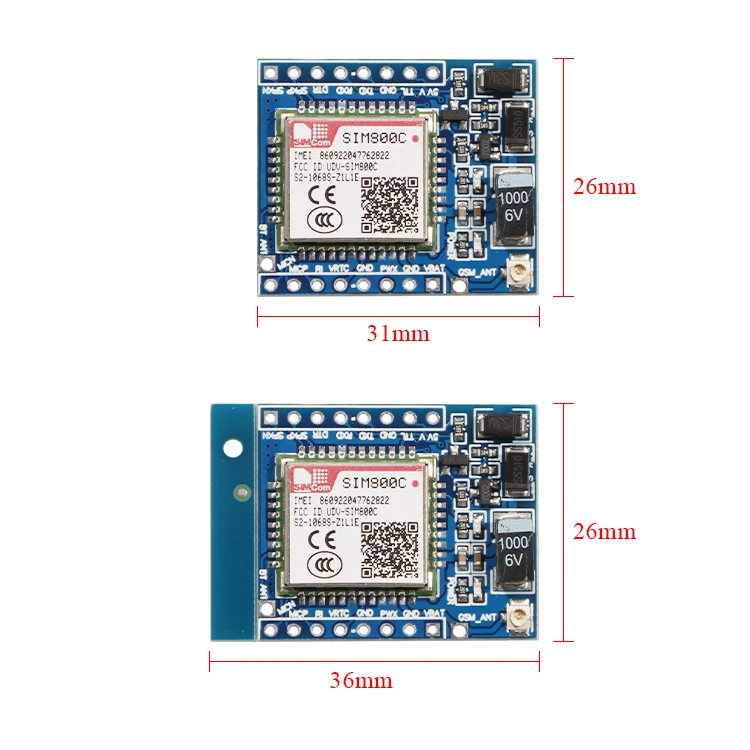

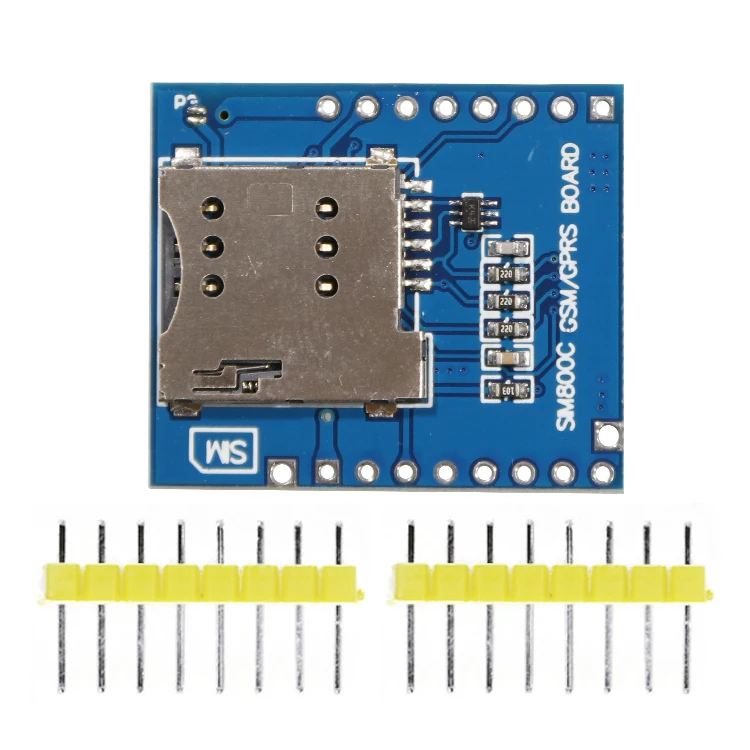

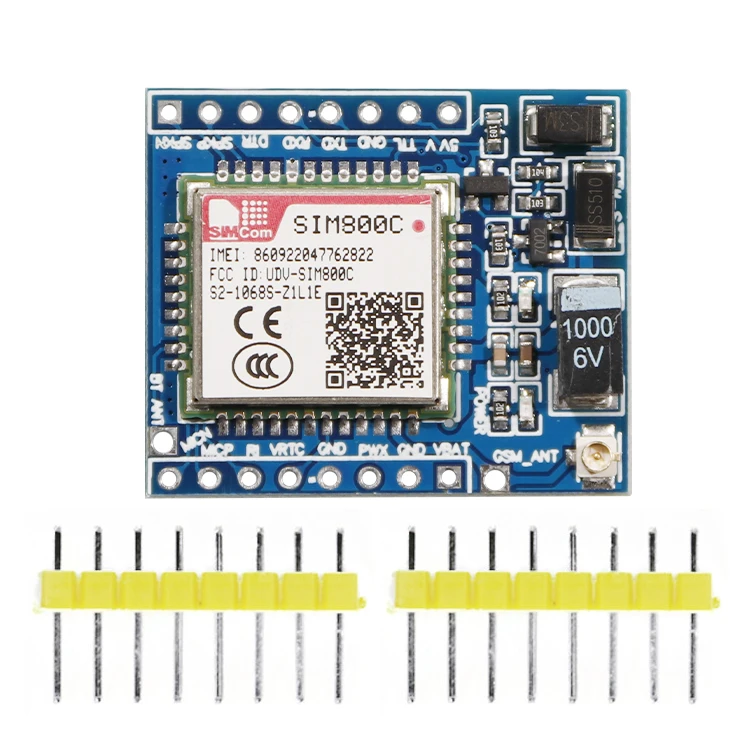

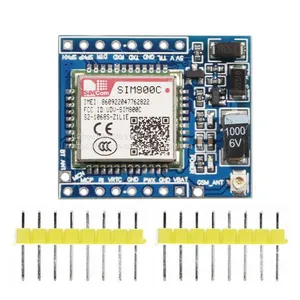

SIM800C Development Board GSM GPRS Module
GSM/GPRS Module
SIM800C is a complete Quad-band GSM/GPRS solution in a SMT type, which can be embedded in the customer applications.
SIM800C supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption.
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•SSL
•Bluetooth 3.0(optional)
Specifications for voice
•Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
•Hands-free operation （Echo suppression）
Interfaces
42 SMT pins including
•Analog audio interface
•RTC backup
•USB interface
•Serial interface
•Interface to external SIM 3V/1.8V
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad
Compatibility
•AT cellular command interface
Certifications
•CE
•FCC
•TA
•ROHS
•REACH
•GCF
•ACMA
•CCC
•CTA
*Enhance version support EAT and TTS_CN function
SIM800C is a complete Quad-band GSM/GPRS solution in a SMT type, which can be embedded in the customer applications.
SIM800C supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption.
General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
•Weight: 1.3g
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
•Weight: 1.3g
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•SSL
•Bluetooth 3.0(optional)
Specifications for voice
•Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
•Hands-free operation （Echo suppression）
Interfaces
42 SMT pins including
•Analog audio interface
•RTC backup
•USB interface
•Serial interface
•Interface to external SIM 3V/1.8V
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad
Compatibility
•AT cellular command interface
Certifications
•CE
•FCC
•TA
•ROHS
•REACH
•GCF
•ACMA
•CCC
•CTA
*Enhance version support EAT and TTS_CN function
