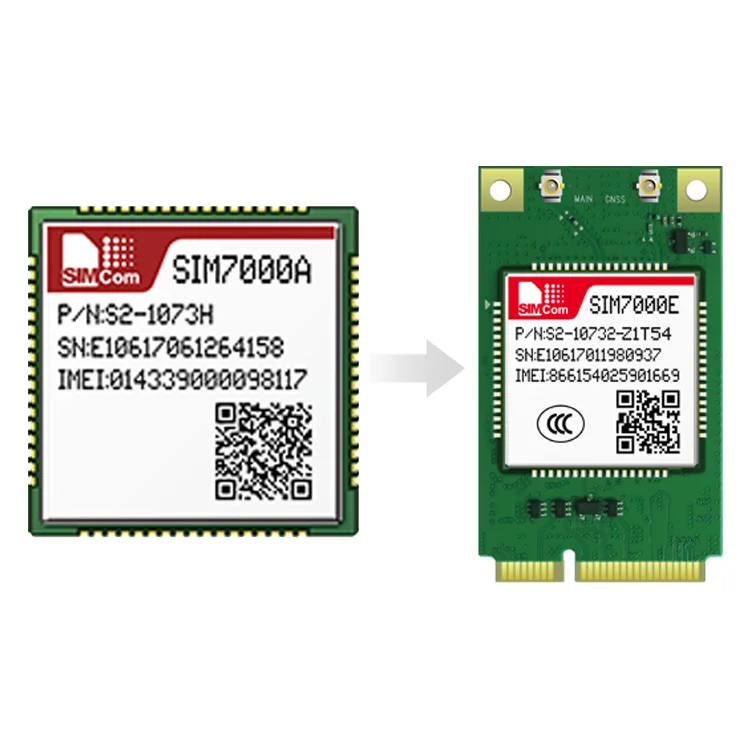

SIM7000 Series SIM7000A SIM7000E SIM7000JC Multi-Band LTE-FDD Module SMT Type LTE CAT-M1 LPWA eMTC Communication Module

Name: SIM7000 Series SIM7000A SIM7000E SIM7000JC Multi-Band LTE-FDD Module SMT Type LTE CAT-M1 LPWA eMTC Communication Module
Price: Negotiable

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

eMTC( CAT-M1) Module• The SIM7000X is Multi-Band LTE-FDD module solution in aSMT type which supports LTE CAT-M1(eMTC) up to 375kbpsdata transfer.-• It has strong extension capability with rich interfacesincluding UART, USB2.0, GPIO etc. The moduleprovides much flexibility and ease of integration for customer's application.-• The package of SIM7000X is compatible with SIM900 and SIM800F. AT commands of SIM7000X are mostly compatible with SIM800F. This also minmize the investments of customers, and enables a short time-tomarket.-• It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring , E-health, mobile pos terminals and sharing bike.-Product Advantages( 1 ) With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7000X can extend battery life to 10 years; ( 2 ) SIM7000X provides deeper coverage enhancement compared to GSM; ( 3 ) The package and AT commands of SIM7000X mostly are compatible with SIM900 and SIM800F.-General Features• Control Via AT Commands • Supply voltage range: 3.0V~ 4.3V,Typ:3.8V • Operation temperature: -40℃ to +85℃ • Dimension: 24 x 24 x 2.6mm • Weight: 3.0g • GNSS (GPS,GLONASS )-SIM7000A • GNSS (GPS,GLONASS,BeiDou and Galileo)-SIM7000E • GNSS (GPS,GLONASS and BeiDou)-SIM7000JC
-SIM7000A:• Quad-Band LTE-FDD B2/B4/B12/B13-SIM7000E:• Quad-Band LTE-FDD B3/B8/B20/B28 • GPRS/EDGE 900/1800Mhz • Output power   - GSM900: 2W   - DCS1800: 1W-SIM7000JC:Hept-Band LTE-FDD: B1/B3/B5/B8/B18/B19/B26-Data• LTE CAT-M1(eMTC)   - Uplink up to 375kbps,      Downlink up to 300kbps• NB-IoT   - Uplink up to 66kbps,      Downlink up to 34kbps• EDGE Class   - Uplink up to 236.8Kbps,      Downlink up to 236.8Kbps• GPRS   - Uplink up to 85.6Kbps,      Downlink up to 85.6Kbps-Interfaces• USB2.0  x1   (high-speed) • UART  x2   (7-wire UART and 2-wire UART interface multiplex from GPIO) • SIM card x1   (1.8V and 3V) • I2C x1 • GPIO x5 • ADC x1-Other Features• USB Driver for Microsoft Windows XP/Vista/7/8 • USB Driver for Windows CE/Mobile • USB Driver for Linux/Android • Firmware update via USB • TCP/IP • UDP • PPP • SMS • EMAIL • FTP/HTTP/SSL • VoLTE • FOTA -SMS• Point to point MO and MT • Text and PDU mode-Consumption• Power off: 7uA • PSM: 9uA • Sleep: 1mA • Idle: 11mA-CertificationSIM7000A• RoHS • REACH • FCC • Verizon • PTCRB • GCF（doing) • AT& T（doing) -SIM7000E• CE • RoHS • REACH-SIM7000JC• RoHS • REACH • Telec • JATE
